Military Product Ultrasonic Cleaning Equipment 50HZ 380V Operational Safety
Military Product Ultrasonic Cleaning Equipment 50HZ 380V Operational Safety
Specifications
Brand Name :
Hongshun
Model Number :
HS-6500SC
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$60,000 to $100,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
50 days
Packaging Details :
film
Applications :
Military Product
conveyor speed :
1-5m/min
Cleaning pressure :
0.6Mpa
Power supply :
380±10%/50HZ
Rinsing pressure :
0.3Mpa
Ultrasonic frequency :
28KHZ
Description

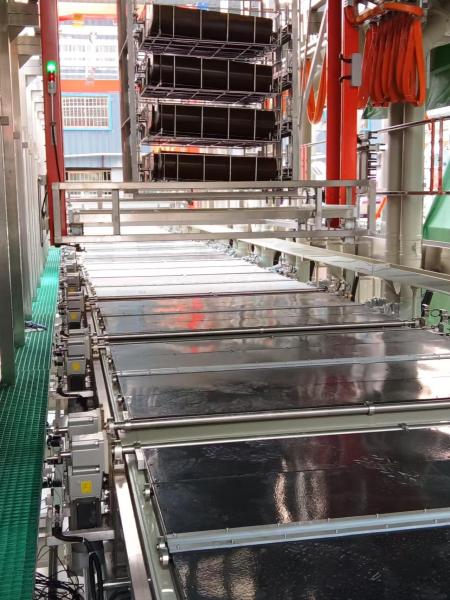

Military Product Spray Cleaning Line, Successful Case

Spray Cleaning Line Overview:

The Military Product Spray Cleaning Line, backed by successful case implementations, delivers precision cleaning tailored for the rigorous demands of military equipment manufacturing. This specialized line combines high-pressure spray technology with advanced filtration systems to remove contaminants, oils, and residues from critical military components—ensuring compliance with strict military standards for performance and reliability.
Proven in real-world military production environments, it handles diverse part geometries, from small precision parts to larger assemblies, with consistent thoroughness. Automated workflows reduce manual intervention, minimizing contamination risks while supporting high-volume production needs.
By ensuring spotless, residue-free surfaces, it enhances component durability and operational safety. For defense manufacturers seeking battle-tested cleaning solutions with a track record of success, this line guarantees reliability, compliance, and superior results in military-grade production.
Technical parameters (indicators or conditions) of Spray Cleaning Line

Total power of the equipment

60kw

Maximum weight of washed item (automatic cleaning)

≤750kg

Size requirements for washed items

Length and width are less than 1250mm, and height is less than 800mm.

Cleaning pressure

0.6Mpa

Rinsing pressure

0.3Mpa

The heating temperature that the equipment can provide

Constant temperature ~ 80℃ adjustable

source

AC380V (three-phase five-wire) 60kVA

Water resources conditions

(Industrial tap water) ≤0.1Mpa, DN50

Air source conditions

≮0.6Mpa

Air conditioning cooling pipe

Φ180, to the outside

Reference of process flow:(workpiece flow direction → left in and right out)

Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → fixed-point air cutting → vacuum drying → cooling section → automatic unloading (truss manipulator) → full inspection and packaging

For a complete technical solution Of Spray Cleaning Line, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Military Product Ultrasonic Cleaning Equipment 50HZ 380V Operational Safety Military Product Ultrasonic Cleaning Equipment 50HZ 380V Operational Safety

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
