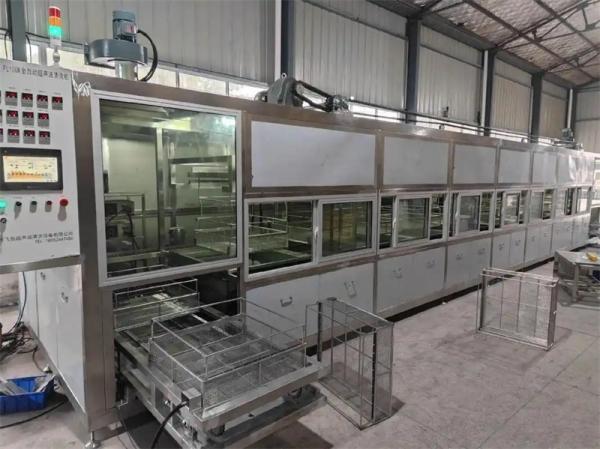

Metal Components Spray Cleaning Machine Castings Ultrasonic Cleaning Line
Metal Components Spray Cleaning Machine Castings Ultrasonic Cleaning Line
Metal Components Spray Cleaning Machine Castings Ultrasonic Cleaning Line
Metal Components Spray Cleaning Machine Castings Ultrasonic Cleaning Line
Specifications
Brand Name :
Hongshun
Model Number :
HS-6500SUS
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$30,000 to $50,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
50 days
Packaging Details :
film
Applications :
Castings
conveyor speed :
1-5m/min
Cleaning pressure :
0.6Mpa
Power supply :
380±10%/50HZ
Rinsing pressure :
0.3Mpa
Ultrasonic frequency :
28KHZ
Description

Standardized Ultrasonic Spray Cleaning Machine For Castings

Spray Cleaning Machine Overview:

The Standardized Ultrasonic Spray Cleaning Machine for Castings is engineered to deliver consistent, high-quality cleaning for cast metal components, combining ultrasonic power with precision spray technology. Designed to tackle casting-specific contaminants—such as foundry sand, metal oxides, and machining residues—it ensures thorough removal from intricate cavities, threads, and surface imperfections critical for casting performance.
This standardized system features uniform ultrasonic cavitation paired with targeted spray rinsing, guaranteeing repeatable results across high-volume production. Its automated workflow minimizes variability, adhering to strict industrial standards for casting cleanliness.
Suitable for automotive, aerospace, and machinery castings of various sizes, it integrates seamlessly into production lines, reducing rework and enhancing downstream processes like coating or assembly. Reliable, efficient, and built for durability, this machine is essential for manufacturers prioritizing casting quality and production consistency.
Technical parameters (indicators or conditions) of Spray Cleaning Machine,For Reference:

Total power of the equipment

60kw

Maximum weight of washed item (automatic cleaning)

≤750kg

Size requirements for washed items

Length and width are less than 1250mm, and height is less than 800mm.

Cleaning pressure

0.6Mpa

Rinsing pressure

0.3Mpa

The heating temperature that the equipment can provide

Constant temperature ~ 80℃ adjustable

source

AC380V (three-phase five-wire) 60kVA

Water resources conditions

(Industrial tap water) ≤0.1Mpa, DN50

Air source conditions

≮0.6Mpa

Air conditioning cooling pipe

Φ180, to the outside

Reference of process flow:(workpiece flow direction → left in and right out)

Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → fixed-point air cutting → vacuum drying → cooling section → automatic unloading (truss manipulator) → full inspection and packaging

For a complete technical solution Of Spray Cleaning Machine, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Metal Components Spray Cleaning Machine Castings Ultrasonic Cleaning Line Metal Components Spray Cleaning Machine Castings Ultrasonic Cleaning Line

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
