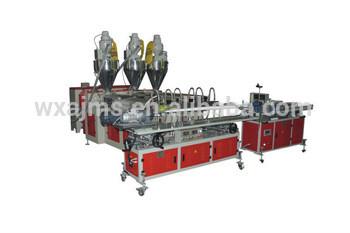

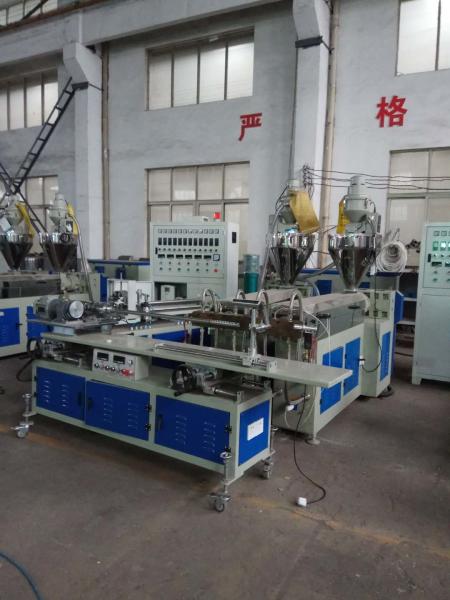

High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
Specifications
Brand Name :
AJMS
Model Number :
AJMS1801
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD48000-55000 per set
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
20 working days
Packaging Details :
packaged by wooden case.
Product name :
3E&3M PP Melt Blown Filter Cartridge Production Line
Capacity :
4800pcs-5200pcs
Rated power :
75KW
Actual power :
37-45KW
Gross weight :
4500kgs
Raw material :
poly propylene
Outside diameter :
38mm-120mm (on the basis of ID 28mm)
Inside diameter :
28mm (15mm-40mm is available for customer's request)
Length :
10", 20", 30"...100"
Filter precision :
5um, 10um, 20um...100um
Layout :
70m2 is enough, 50m2 at least, 100m2 is better
Wechat :
+86 15852727954
Description

High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line

Specification

Capacity 5000-6000 pcs/24 hours(on basic of 10 ’’,ID 28 mm,OD 55-63 mm,100-110 gram
Rated Power 75 KW
Actual Power 37-45 KW
Raw Material Polypropylene ( fiber grade)
Insider Diameter 28 mm (15 mm-40 mm is for customer’s request)
Outer Diameter 38 mm-120 mm( on the basis of ID 28 mm.)
Length 10 ’’,20 ’’,30 ’’,40 ’’.............100 ’’
Filter precision 1 um,5 um,10 um,20 um,30 um...............100 um
Surface of filter cartridge

Smooth surface orange peel surface

Grooves surface(grooving machine )

Dotted surface (this device has added on receiving device)

Graining toll/stripe surface (extra tool)

Logo on surface (carving machine produce logo & company name on the surface of pp filter)
Machine weight 4 Ton,4.5 Ton After Packing
Layout 70 m 2 is enough ,at least 50 m 2,100 m2 is best.

Brand name of parts in production line

Inverter: ABB Temperature Controller: OMRON Breaker: Schneider
Relays: SCHNEIDER MCBs: SCHNEIDER Roots Blower: Taiwan,China

Sparte parts for free

Heating loop inside of extruder: 10 pcs Sensors: 5 pcs Contactor: 5 pcs Heating Pipe inside of air heating machine: 5 pcs
Bearing: 3 pcs Filter Net: 1 square meters Temperature Controller: 3 pcs Tool Box: 1 set
Insulated pipe: 4 pcs Spin Button: 5 pcs Blade: 50 pcs Insulated Asbestos: 5 pcs
Porcelain Bead&Line: some Heating Gun: 1 set Needles: 2 packages Ammeter: 3 pcs
Heating Pipe inside of moulds: 8 pcs Heating Pipe inside of cleaning oven: 1 pc Digital Controller: 2 pcs Button(Red/Green): 5pcs/kind

High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line

High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line

All kinds filter machine in our company

1.PP String wound filter cartridge machine(5’’-100’’ single head or double head)

2.CTO Carbon filter cartridge production line

3.1E&1M,2E&2M,3E&3M,Pp spun filter cartridge making machine/pp melt blown filter cartridge machine

.........................now we are create more new fields .....................................

Warmly welcome to us for visiting,your choose will be wise!
