Specifications
Brand Name :
AJMS
Model Number :
AJMS1801
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 34000-45000/set FOB Shanghai
Payment Terms :
T/T
Supply Ability :
500 sets/ month
Delivery Time :
15-20 working days
Packaging Details :
by plywooden case.
Product name :
2E&2M PP spun cartridge making machine
Raw material :
100% polypropylene
Produce length :
10", 20"...100"
Produce ID :
15-40mm (default 28mm)
Produce OD :
38-120mm
Rated power :
50KW
Actual power :
25-30KW
Filter presicion :
1um, 5um, 10um...100um
Machine weight :
4000kgs
Layout :
50m2 is enough
Description

2E&2M PP spun filter cartridge making machine

Applicable fields:

1. Electronic, power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc

2. Chemical & petrochemical Industries: Solvent, Paint, Magnetism paint, Detergent, Liquid wax etc

3. Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid

4. Food Industry: Food, Drink, Drinking Water, Alcohol etc

Product Description:

Specification: 1E&1M 2E&2M 3E&3M
Output (24 hours) 1800-2200 pcs 3800-4200 pcs 4800-5200 pcs
Rated Power (KW) 30 50 70
Actual Power (KW) 14-17 25-30 37-45
Raw Material (Fiber Grade) pp pp pp
Inner Diameter (mm) 28 (15-40) 28 (15-40) 28 (15-40)
Outer Diameter (mm) 38-400 38-200 38-200
Length (inch) 10''20''30''40''...100'' 10''20''30''40''...100' 10''20''30''40''...100''
Filter Precision (micron/um) 1um,5um,10um,15um...100um 1um,5um,10um,15um,...100um 1um,5um,10um,15um,...100um
Surface Of Filters smooth surface,orange peel surface,grooves surface,dotted surface,... smooth surface,orange peel surface,grooves surface,dotted surface,... smooth surface,orange peel surface,grooves surface,dotted surface,...
Weight (Ton) 1.5 3.8 4.5
Voltage 380/415/220 380/415/220 380/415/220
Layout (m2 ) best 20 30 (best 50) 70
Automatic Grade CTO CTO CTO
Condition New New New

Marked:

1.Raw material only living up to fiber grade,production line could produce filter cartridges.

2.Inside diameter and outside diameter could according to your request for adjusting.

3.Filter precision could according to your request for adjusting.

4.Length is 10''-100'',this could adjust by cto cutting machine.

5.Voltage default is 380 V/50 Hz,we could according voltage in different country according to your request.

6.If you have some special specification filter cartridges,our engineer could devote machine according to your request.

Operation conditions:

1). Max operating temperature: 70°C

2) Materials: 100% polypropylene

3) Interface of filter cartridge: flat

4) Max differential pressure: Positive 0.4Mpa

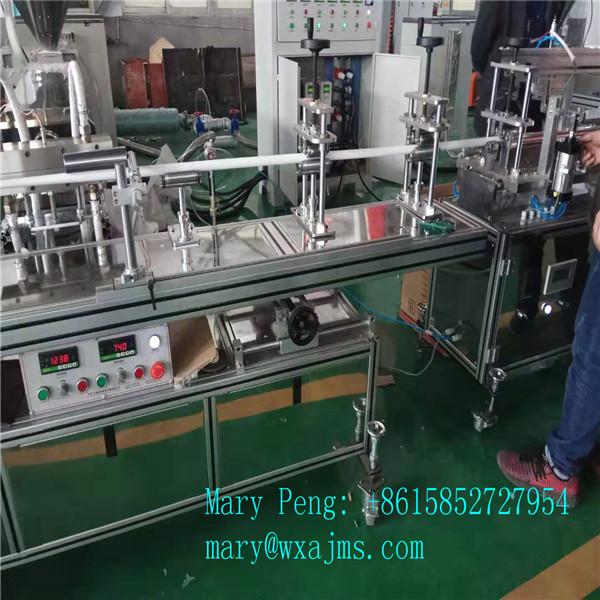

Parts of Production Line:

Original Type: New Type:
large controller table,air compressor,air tank,air heating machine,extruder,auto feeding machine,mold,receiveing device,cto cutting machine,mold cleaning machine large controller table,roots blower,air heating mchine,extruder,auto feeding machine,mold,receiveing device,cto cutting machine,mold cleaning machine

Details of Production Line:

1st part:Roots Blower

-Brand: AJMS(GRB 100)

-Capacity:5 m3 /minute
3rd part:Air heating oven -Heating the compressed air
4th-1 part:First Extruder -Its heating temperature is higherer than second extruder’s temperature 3°C.
4th-2 part:second extruder

-Its heating temperature is lower than first extruder’s temperature 3°C.So,the density of PP is different from two extruders.
5th part:mold

-Its inside with metal filter net.

.
6th part:Receiver system -Receive the sprayed pp material and inform pp filter cartridge on this machine.
7th part:Automatic cutting machine -Cut filter according to required length
8th part:Large controller -Large controller Controlls two air heating systems inside of air heating machine with temperature display.
9th part:small controller -It controls Receiver system
10th part:molds cheaning oven -Heating moulds so that the residual PP will become carbonization
11th:automatic feeder -Feeding pp material automatically and dry pp material automatically at the same time

Spare parts which we supply for free:

Heating loop inside of extruder:8pcs Sensors: 5sets
Heating pipe inside of air heating machine:3pcs Bearing: 2pcs
Temperature controller: 3 pcs Tool box:1 set
Button:2 pcs for 3 kinds. Blade: 20pcs
porcelain bead and line: some Heating gun:1 set
Water-oil separator for screw compressor:1 set Machine oil filter for screw compressor : 1set
Air filter for screw compressor: 1set

Main features of pp melt blown filter cartridge machine:

1.Good quality

2.Electric Saving

3.Large Output

we could adjust our machine as your request.

Packinging&Shipping&Delivery Time:

Packinging: Each packed in wooden case with film bags(it could also as your request) Shipping:Shanghai,port Delivery Time:15 working days when receive your 30% deposit

Payment:

Payment:T/T,30% payment deposit,70% payment before delivery
