Specifications
Brand Name :
AJMS
Model Number :
AJMS1801
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD36000-45000 FOB Shanghai port
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets
Delivery Time :
15-20 days once received your deposit
Packaging Details :
packed by plywood case.
Commodity :
PP Spun Filter Cartridge Making Machine
Capacity :
3800-4500pcs/24 hours
Rated power :
50KW
Actual power :
25-30KW
Raw material :
polypeopylene (filber grade)
ID :
28mm (15-40mm as customer's request)
OD :
38mm-120mm
Length :
10", 20", 30", 40"...100"
Filter precision :
1um, 2um, 10um, 20um...100um
Weight :
4 tons after packaged
Layout :
50 square meters is enough
Surface of cartridge :
smooth, grooves, dotted, graining toll, Logo
Description

PP Melt Blown Filter Cartridge Machine/PP Spun Filter Cartridge Making Machine

Parameter:

Name PP melt blown filter making machine
Total Installed Power 37kwh
Output 1800~2500pcs/day (refer to 10” filters)
Raw Material 100% New Polypropylene
Length 5",10",20",30",...(free to customize)
Filter Precision 1-100 micron
Voltage 3 Phase 380V or;1 Phase 220V
Type 1E1M, 2E2M, 3E3M
Diameter ID:28-100mm; OD:38-120mm

PP spun melt blown filter cartridge making machine adopts full automatic control system, high production capacity, large efficiency, has long life. And our machines use variable frequency speed control system ,low power consumption, less wastage, good quality, stable performance, high filter precision. The multi-layer structure of PP cartridge can filter water by different layers.
The regular inner diameter is 28 mm,30 mm, outer diameter usually is 58 mm ~63 mm, if you need other diameters, just change receiver components .

Type

The total power

Actual power

The raw material

Production capacity

Weight of filter cartridge
2E&2M 50kw 25kw PP(Ploypropylene) 3800-4200pcs/24h 95-180kg(adjustable)
3E&3M 70kw 37kw PP(Ploypropylene) 4800-5200pcs/24h

95-180kg(adjustable)

PP Spun Filter Cartridge Making Machine 1E&1M,2E&2M,3E&3M

PP Melt Blown Filter Cartridge Machine/PP Spun Filter Cartridge Making Machine

PP Melt Blown Filter Cartridge Machine/PP Spun Filter Cartridge Making Machine

PP Melt Blown Filter Cartridge Machine/PP Spun Filter Cartridge Making Machine

PP Melt Blown Filter Cartridge Machine/PP Spun Filter Cartridge Making Machine

Applicable fields:

1. Electronic, power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc

2. Chemical & petrochemical Industries: Solvent, Paint, Magnetism paint, Detergent, Liquid wax etc

3. Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid

4. Food Industry: Food, Drink, Drinking Water, Alcohol etc

Product Description:

Specification: 1E&1M 2E&2M 3E&3M
Output (24 hours) 1800-2200 pcs 3800-4200 pcs 4800-5200 pcs
Rated Power (KW) 30 50 70
Actual Power (KW) 14-17 25-30 37-45
Raw Material (Fiber Grade) pp pp pp
Inner Diameter (mm) 28 (15-40) 28 (15-40) 28 (15-40)
Outer Diameter (mm) 38-400 38-200 38-200
Length (inch) 10''20''30''40''...100'' 10''20''30''40''...100' 10''20''30''40''...100''
Filter Precision (micron/um) 1um,5um,10um,15um...100um 1um,5um,10um,15um,...100um 1um,5um,10um,15um,...100um
Surface Of Filters smooth surface,orange peel surface,grooves surface,dotted surface,... smooth surface,orange peel surface,grooves surface,dotted surface,... smooth surface,orange peel surface,grooves surface,dotted surface,...
Weight (Ton) 1.5 3.8 4.5
Voltage 380/415/220 380/415/220 380/415/220
Layout (m2 ) best 20 30 (best 50) 70
Automatic Grade CTO CTO CTO
Condition New New New

Marked:

1.Raw material only living up to fiber grade,production line could produce filter cartridges.

2.Inside diameter and outside diameter could according to your request for adjusting.

3.Filter precision could according to your request for adjusting.

4.Length is 10''-100'',this could adjust by cto cutting machine.

5.Voltage default is 380 V/50 Hz,we could according voltage in different country according to your request.

6.If you have some special specification filter cartridges,our engineer could devote machine according to your request.

Operation conditions:

1). Max operating temperature: 70°C

2) Materials: 100% polypropylene

3) Interface of filter cartridge: flat

4) Max differential pressure: Positive 0.4Mpa

Parts of Production Line:

Original Type: New Type:
large controller table,air compressor,air tank,air heating machine,extruder,auto feeding machine,mold,receiveing device,cto cutting machine,mold cleaning machine large controller table,roots blower,air heating mchine,extruder,auto feeding machine,mold,receiveing device,cto cutting machine,mold cleaning machine

Details of Production Line:

1st part:Roots Blower

-Brand: AJMS(GRB 100)

-Capacity:5 m3 /minute

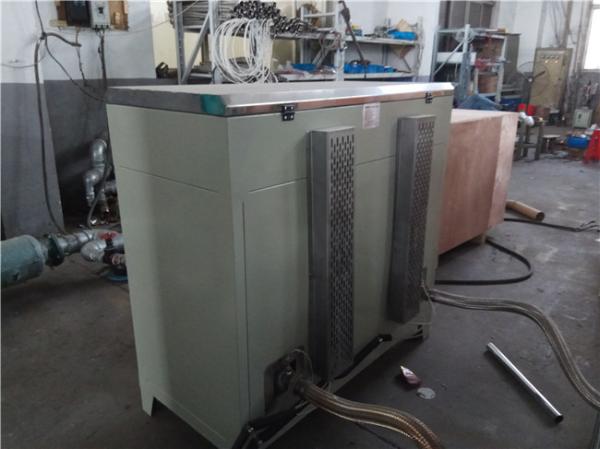

3rd part:Air heating oven -Heating the compressed air

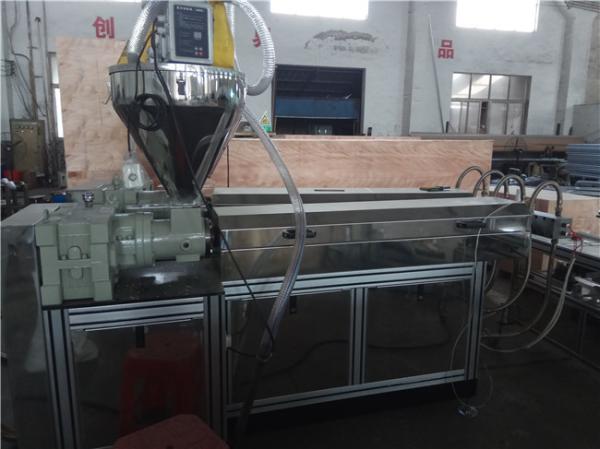

4th-1 part:First Extruder -Its heating temperature is higherer than second extruder’s temperature 3°C.
4th-2 part:second extruder

-Its heating temperature is lower than first extruder’s temperature 3°C.So,the density of PP is different from two extruders.
5th part:mold

-Its inside with metal filter net.

.
6th part:Receiver system -Receive the sprayed pp material and inform pp filter cartridge on this machine.
7th part:Automatic cutting machine -Cut filter according to required length

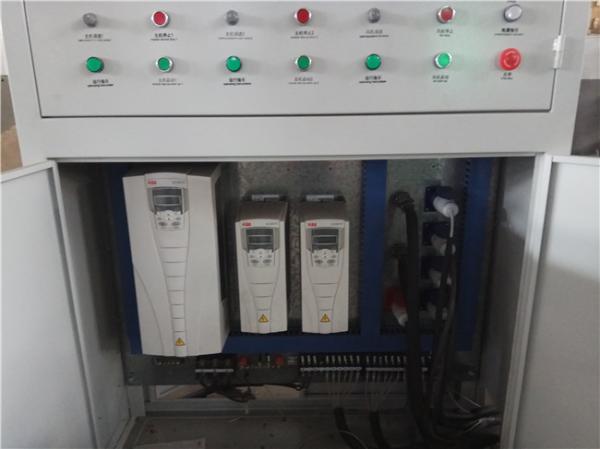

8th part:Large controller -Large controller Controlls two air heating systems inside of air heating machine with temperature display.
9th part:small controller -It controls Receiver system
10th part:molds cheaning oven -Heating moulds so that the residual PP will become carbonization
11th:automatic feeder -Feeding pp material automatically and dry pp material automatically at the same time
