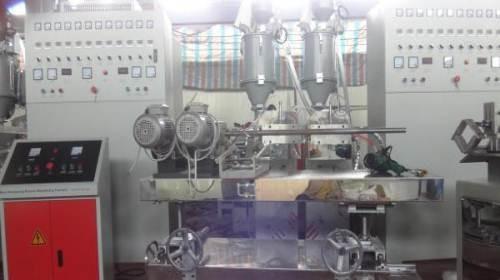

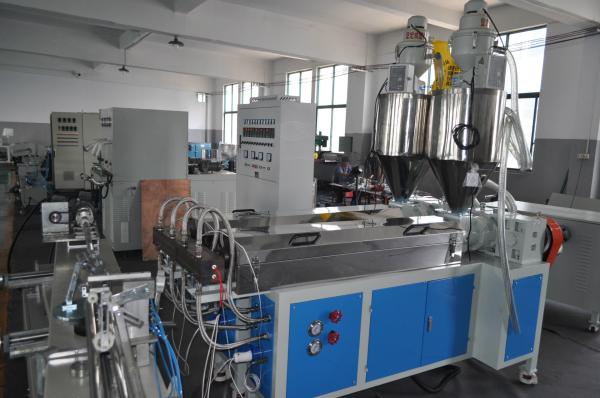

PP Spun Filter Cartridge Making Machine / Melt Blown Filter Cartridge Machine
PP Spun Filter Cartridge Making Machine / Melt Blown Filter Cartridge Machine
PP Spun Filter Cartridge Making Machine / Melt Blown Filter Cartridge Machine
PP Spun Filter Cartridge Making Machine / Melt Blown Filter Cartridge Machine
PP Spun Filter Cartridge Making Machine / Melt Blown Filter Cartridge Machine
PP Spun Filter Cartridge Making Machine / Melt Blown Filter Cartridge Machine
Specifications
Brand Name :
AJMS
Model Number :
AJMS007
Certification :
CE, ISO
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
USD12000 - USD35000 per set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
8-10 days after receiving your deposit
Packaging Details :
packed by wooden case.
Commodity :
PP Spun Filter Cartridge Machine
Rated power :
50KW
Actual power :
25-30KW
Raw material :
polypropylene
Insider diameter :
28mm (15-40mm is for customer's request)
Outer diameter :
38mm-120mm (on the basis of ID 28mm)
Length :
10", 20", 30", 40"...100"
Filter precision :
5um, 10um, 20um, 30um...100um
Surface of filter cartridge :
smooth, grooves, dotted, graining toll/ stripe, Logo
Layout :
at least 30m2
Description

PP Spun Filter Cartridge Making Machine / Melt Blown Filter Cartridge Machine

Specification

Capacity 3800-4500 pcs/24 hours(on basic of 10 ’’,ID 28 mm,OD 55-63 mm,100-110 gram
Rated Power 50 KW
Actual Power 25-30 KW
Raw Material Polypropylene ( fiber grade)
Insider Diameter 28 mm (15 mm-40 mm is for customer’s request)
Outer Diameter 38 mm-120 mm( on the basis of ID 28 mm.)
Length 10 ’’,20 ’’,30 ’’,40 ’’.............100 ’’
Filter precision 1 um,5 um,10 um,20 um,30 um...............100 um

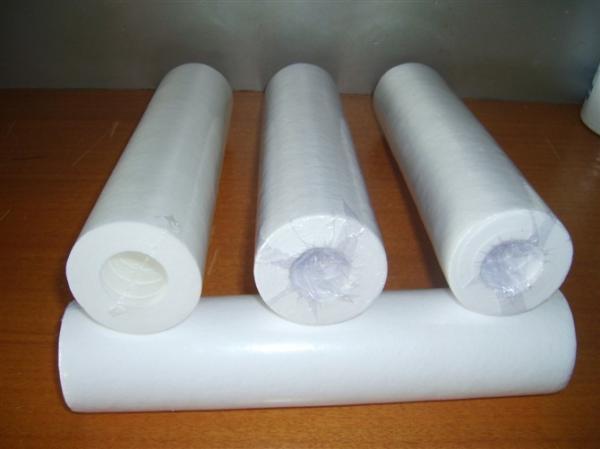

Surface of filter cartridge

Smooth surface orange peel surface

Grooves surface(grooving machine )

Dotted surface (this device we have added on receiving device )

Graining toll/stripe surface (extra tool)

Logo on surface (carving machine produce logo & company name on the surface of pp filter)
Machine weight 3.8 Ton ,4 Ton after packing
Layout 50 m 2 is enough ,at least 30 m 2,100 m2 is best.

Operation conditions

1)Max operating temperature: 70°C

2) Materials: 100% polypropylene

3) Interface of filter cartridge: flat

4) Max differential pressure: Positive 0.4Mpa

Filter precision (μ m) 1 3 5 10 20 30 50
outside precision (μ m) 10-15 15-25 25-35 30-40 35-50 40-60 60-90
Max particle (μ m) 15 25 35 40 50 60 90
Flow (L/min) 10 14 17 20 24 28 32

Applicable fields:

1. Electronic, power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc

2. Chemical & petrochemical Industries:Solvent, Paint, Magnetism paint, Detergent, Liquid wax etc

3. Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid

4. Food Industry: Food, Drink, Drinking Water, Alcohol etc.

Brand name of parts in production line

Inverter: ABB Temperature Controller: OMRON Breaker: Schneider
Relays: SCHNEIDER MCBs: SCHNEIDER Roots Blower: Taiwan,China

Spare parts for free

Heating loop inside of extruder: 10 pcs Sensors: 5 pcs Contactor: 5 pcs Heating Pipe inside of air heating machine: 5 pcs
Bearing: 3 pcs Filter Net: 1 square meters Temperature Controller: 3 pcs Tool Box: 1 set
Insulated pipe: 4 pcs Spin Button: 5 pcs Blade: 50 pcs Insulated Asbestos: 5 pcs
Porcelain Bead&Line: some Heating Gun: 1 set Needles: 2 packages Ammeter: 3 pcs
Heating Pipe inside of moulds: 8 pcs Heating Pipe inside of cleaning oven: 1 pc Digital Controller: 2 pcs Button(Red/Green): 5pcs/kind

After sales service

1.Technical documents

All the symbols on the equipments should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.

2.Arrangement for inspection, installation and testing work

  • After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
  • We will prepare for visa application for our engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory for free,not need commission for engineer.
  • The Buyer will afford the round-trip air tickets .The buyer is also responsible to bear expenses generated, e.g.meals, accommodation for each engineer.
  • We recommend your labors to have a free training for 5-7 days at Seller’s factory.
  • IF your labors don’t have a free training at seller’s factory.our engineers will give training lessons to labors at buyer’s factory. Also not need commission.
  • IF buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.

3. Validity

90 days since quotation date.
