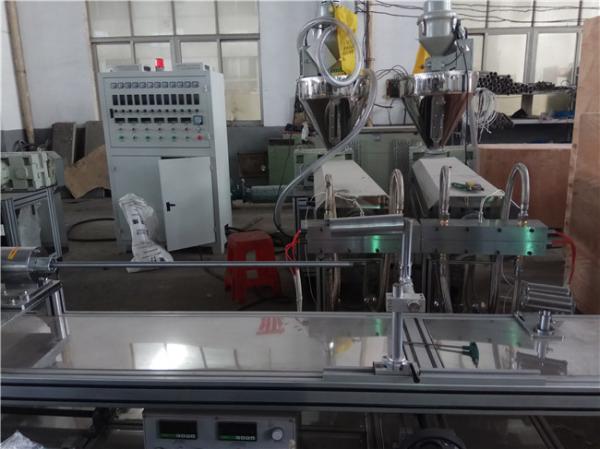

New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
Specifications
Brand Name :
AJMS
Model Number :
AJMS1801
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD17000-25000 FOB Shanghai
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/ month
Delivery Time :
15-20m working days against your deposit
Packaging Details :
by plywood case.
Product name :
PP Melt Blown Filter Cartridge Making Machine
Raw material :
100% polypropylene
Rated power :
50KW
Actual power :
25-30KW
ID :
28mm (15-40mm is for customer's request)
OD :
38mm-120mm
Length :
10", 20", 30"...100"
Weight :
4 tons
Layout :
50 square meters is enough
Filter precision :
1um, 5um, 10um, 20um, 30um...100um
Description

New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine

Applicable fields:

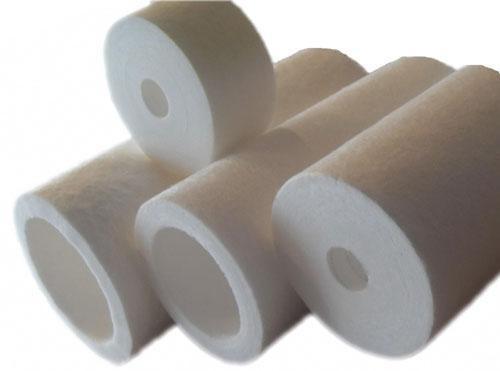

PP melt blown filter cartridge is mainly used in the fields of pure water manufacturing pretreatment, circulating cooling water, drinking water, laboratory water, boiler water, oil field water injection,chemical,pharmaceutical,electroplating,printing,paint,color film processing, fuel oil, beer, beverage industries filtration and so on.

Product Description:

Specification: 1E&1M 2E&2M 3E&3M
Output (24 hours) 1500-2200 pcs 3500-4200 pcs 4800-5500 pcs
Rated Power (KW) 35 55 75
Actual Power (KW) 14-17 28-32 39-48
Raw Material (Fiber Grade) PP PP PP
Inner Diameter (mm) 28 (other internal diameter) 28 (other internal diameter) 28 (other internal diameter)
Outer Diameter (mm) 30-200 (basis of ID28MM) 30-200 (basis of ID28MM) 30-200 (basis of ID28MM)
Length (inch) 10''20''30''40''...100'' 10''20''30''40''...100' 10''20''30''40''...100''
Filter Precision (micron/um) 1um,5um,10um,15um...100um 1um,5um,10um,15um,...100um 1um,5um,,...100um
Surface Of Filters smooth surface, orange peel surface, grooves surface, dotted surface,... smooth surface, orange peel surface, grooves surface, dotted surface,...

smooth surface, orange
peel surface, grooves surface, dotted surface,...
Weight (Ton) 1.5 3.9 4.9
Voltage 220/380/others 220/380/others 220/380/others
Layout (m2 ) best 20 50 (best 150) 50 (best 150)
Condition New New New

Marked:
1.Raw material only living up to fiber grade,production line could produce filter cartridges.
2.Inside diameter and outside diameter could according to your request for adjusting.
3.Filter precision could according to your request for adjusting.
4.Length is 10''-100'',this could adjust by cutting machine.
5.Voltage default is 380 V/50 Hz,we make different voltage as your request .
6.If you want to make the special specification filter cartridges, our engineer could devote machine according to your request.

Operation conditions:
1). Max operating temperature: 70°C
2) Materials: 100% polypropylene
3) Interface of filter cartridge: flat
4) Max differential pressure: Positive 0.4Mpa

Product Description:

Specification: 1E&1M 2E&2M 3E&3M
Output (24 hours) 1800-2200 pcs 3800-4200 pcs 4800-5200 pcs
Rated Power (KW) 30 50 70
Actual Power (KW) 14-17 25-30 37-45
Raw Material (Fiber Grade) pp pp pp
Inner Diameter (mm) 28 (15-40) 28 (15-40) 28 (15-40)
Outer Diameter (mm) 38-400 38-200 38-200
Length (inch) 10''20''30''40''...100'' 10''20''30''40''...100' 10''20''30''40''...100''
Filter Precision (micron/um) 1um,5um,10um,15um...100um 1um,5um,10um,15um,...100um 1um,5um,10um,15um,...100um
Surface Of Filters smooth surface,orange peel surface,grooves surface,dotted surface,... smooth surface,orange peel surface,grooves surface,dotted surface,... smooth surface,orange peel surface,grooves surface,dotted surface,...
Weight (Ton) 1.5 3.8 4.5
Voltage 380/415/220 380/415/220 380/415/220
Layout (m2 ) best 20 30 (best 50) 70
Automatic Grade CTO CTO CTO
Condition New New New
