Specifications
Brand Name :
AJMS
Model Number :
AJMS1801
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD35000-45000 FOB Shanghai
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/ month
Delivery Time :
15-20 working days.
Packaging Details :
by plywood case.
Product name :
PP Melt Blown Cartridge Machine
Rated power :
50KW
Actual power :
25-30KW
Raw material :
polypropylene 100%
ID :
28mm (15-40mm is for customer's request)
OD :
38mm-120mm
Length :
10", 20", 30"...100"
Filter precision :
1um, 5um, 10um, 20um, 30um...100um
Weight :
4 tons
Layout :
50 square meters is enough
Description

High Production Capacity Spun PP melt blown filter cartridge making machine for Water Treatment

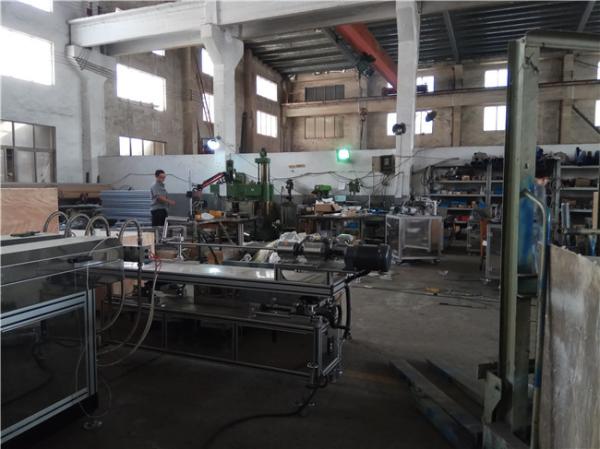

The production line includes the following equipments:

First part: OR screw compressor(without a break) 1 set
Second part Air tank 1 set the volume is 0.3 M3
Third part: Air Heating machine 1 set
Forth part extruder 2 sets
Motor power: 5.5KW/set (changing frequency control speed)
Heating power is 10KW/set
Fifth part Mould 2 sets
Sixth part Receiver device 1 set
Seventh part Cutting machine 1 set
Eighth part Controller 2 sets
Nith part Cleaning box for the mould 2kw
Tenth part Automatic feeding machine 2 sets 0.3KW/Set
We have has researched a new equipment that could make the face of filter cartridge more smooth.

There are four important features for our machine as followed:

First: It saves more electric than others,so our machine is the best choice for you in this field .

Second: The production capacity is large,we can produce 2500-3800pcs/day.

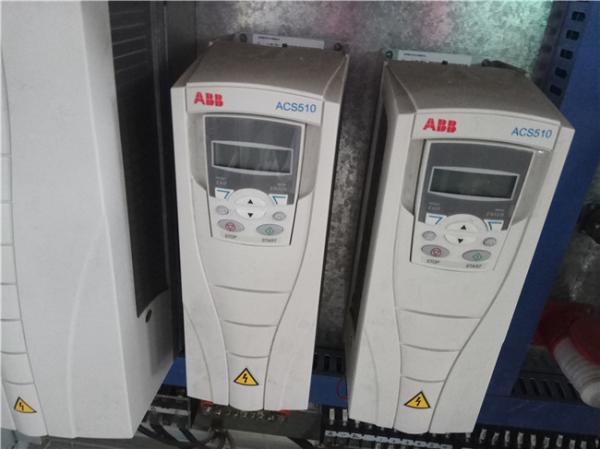

Third: We use variable frequency motor.

Fourth: It is efficiency and energy saving, high power factor and high reliability.

Operation conditions:

1). Max operating temperature: 70°C

2) Materials: 100% polypropylene

3) Interface of filter cartridge: flat

4) Max differential pressure: Positive 0.4Mpa

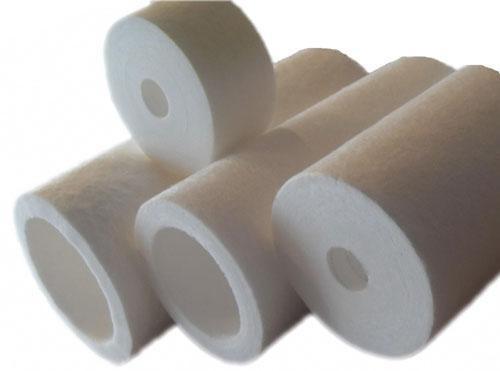

Water Filter cartridge Prameters:

Material Membrane: PP
Core: PP
O ring/Gasket: Silicone, EPDM, Buna , Viton, Teflon
Specifications Pore size(um): 1,5,10,20,30,50,100 Micron
Outer Diameter(OD): 61mm,62mm,115mm(can be decided by client)
Length(inch): 5'',10'',20",30",40" (can be decided by client)
Endcaps: DOE,SOE(215,226,222,0050,0080)
Technical data Max differential pressure: 3.5 bar at 20°C
Recommended change out: 1-1.5bar
Max temperature: 80°C

Machine features:

1. Two-layers PP Filter: 2E&2M machine can produce 2-layer Spun Filters with different micron rate, the filter has two layers , higher filtering precision , strong impurity capture capacity. 3E&3M system could produce 3 layers of pp filter.


2. Power Saving: Its consumption 9-18% less electricity than other common machines.


3. Excellent Products Quality: Our machine can keep diameter of fibers stable during production, which makes the filter quality high and PP Filters absolute micron rate. the fiber diameter often has big error for its spouts unstable, the micron rate of the PP Filter is not accurate.


4. Auto-cutting Device : Auto-cut System is designed by ourselves for any length of filters. The surface of ends is smoother.


5. Easy operation: Our machine are totally automatic and easy to operate.

Construction of machine :

1.Auto mixer

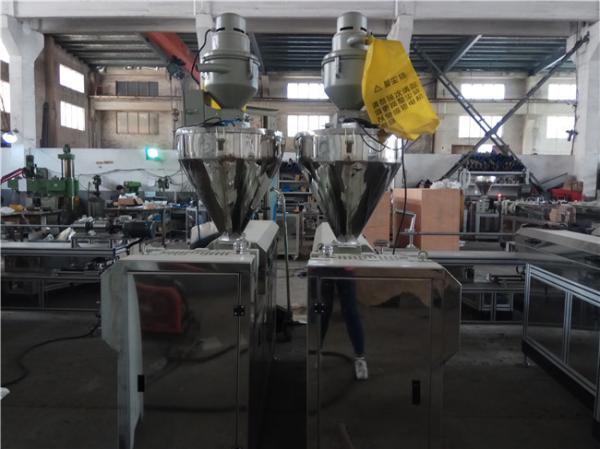

2.Auto feeder

3.Extruder,

4.Roots blower and Air heater

5.Nozzle mold

6.Receiving machine

7.Auto cutter

8.Controller
