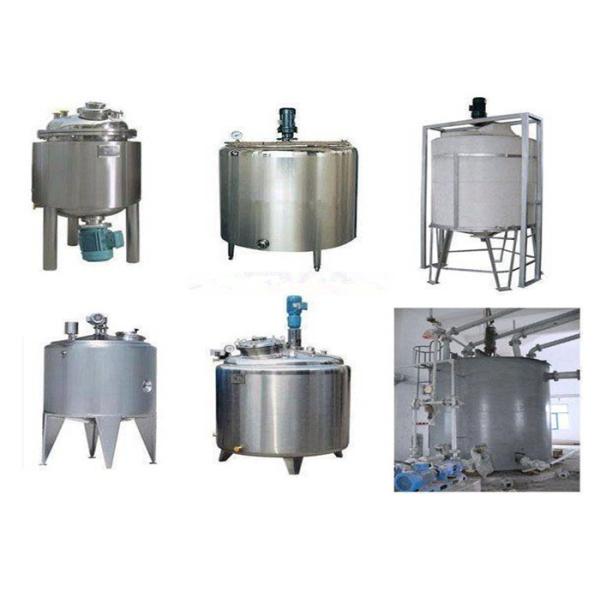

Easy Operate Ice Cream Production Line 200L 300L 400L 500L 600L 800L
Easy Operate Ice Cream Production Line 200L 300L 400L 500L 600L 800L
Easy Operate Ice Cream Production Line 200L 300L 400L 500L 600L 800L
Easy Operate Ice Cream Production Line 200L 300L 400L 500L 600L 800L
Specifications
Model Number :
KQ-300L ,KQ -500L ,KQ-1000L
Certification :
ISO 2000
MOQ :
1 Set
Price :
Negotiable By both sides .
Payment Terms :
T/T, Western Union
Supply Ability :
500 Set Per Month
Delivery Time :
10 days after get your advance payment
Packaging Details :
Wooden Box
Name :
Ice Cream Processing Equipment
Material :
Food Grade Stainless Steel 304
Turnkey Project :
Yes
Flow :
500L/Hour - 1000L / Hour
Specification :
OEM
Warranty :
One year
Packing :
Wooden Box
Origin :
Shanghai China
Description

200L 300L 400L 500L 600L 800L Flavored Ice Cream Production Line For Factory

1. Intrduction of Ice Cream Production Line :

Structure: the interior, jacket, insulation layer, the outer foreskin, speed reducer, agitator, thermometer and so on.

The interior: stainless steel SUS304, mirror-polished surface.

Jacket: the A3 or 1Cr18Ni9Ti steel plate, strengthen circle spiral device, the cold water from bottom to top (without pressure), to achieve the best heating and cooling purposes.

Insulation group: stainless steel plate cast into scales, insulation layer use polyurethane or mineral wool to keep the temperature, achieve insulation effect.

Speed reducer:cycloid planetary reducer, fixed in the tray of the beam, a shaft gear wheel connect with the impeller flexibly for easy removal and cleaning.

Thermometer: specification 100C-1000C, installed on the beam, straight out to minimum medium position, makes sure that can indicate temperature even when the liquid material to the lowest position, to achieve sterilization and aging purposes.

2. Technical Parameter :

Volume 300L 400L 500L 600L 800L 1000L 1500L 2000L 3000L
Body diameter(mm) Φ 800 Φ 800 Φ 900 Φ 1000 Φ 1000 Φ 1000 Φ 1200 Φ 1300 Φ 1600
Body height(mm) 600 800 800 800 1000 1220 1220 1500 1500
Motor power(kw) 0.55 0.55 0.55 0.55 0.55 0.75 1.5 2.2 3
Stirring speed(rpm) 36r/min
Working pressure ≤ 0.09Mpa
Working temperature < 100° C
Accessories Thermometer, safety valve, pressure gauge
