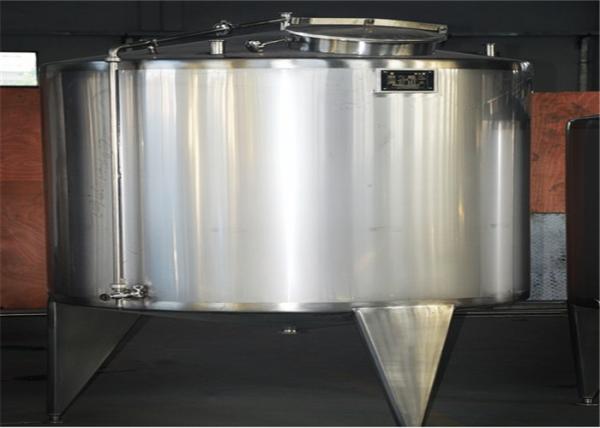

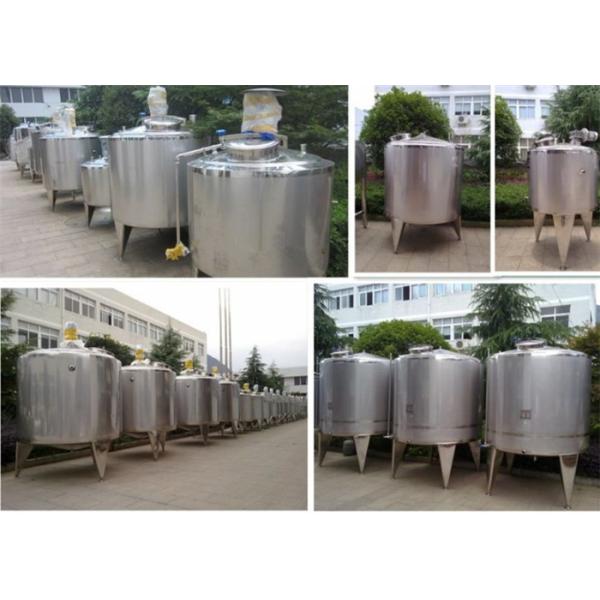

Industrial Ice Cream Equipment , Ice Cream Manufacturing Plant 300L 500L 3000L
Industrial Ice Cream Equipment , Ice Cream Manufacturing Plant 300L 500L 3000L
Industrial Ice Cream Equipment , Ice Cream Manufacturing Plant 300L 500L 3000L
Industrial Ice Cream Equipment , Ice Cream Manufacturing Plant 300L 500L 3000L
Industrial Ice Cream Equipment , Ice Cream Manufacturing Plant 300L 500L 3000L
Industrial Ice Cream Equipment , Ice Cream Manufacturing Plant 300L 500L 3000L
Specifications
Model Number :
KQ-300L ,KQ -500L ,KQ-3000L
Certification :
ISO
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 Set Per Month
Delivery Time :
10 days after get your advance payment
Packaging Details :
Wooden Box
Name :
Ice Cream Production Line
Material :
Sanitary Stainless Steel 304 316
Treatment :
Food Grade
Flow :
200L/Hour - 1000L / Hour
Warranty :
2 year
Packing :
Wooden Box
Description

Ice Cream Blending Tank Mixing Tank Cooling Tank Productiion Line

1. Ice Cream Tanks Technical Parameter :

Model

30

100

300

500

1000

2000

3000

5000

1500~5000

Maximum capacity(L)

30

100

300

500

1000

2000

3000

5000

1500~5000

Main Axle Rotating Speed(rpm)

22.5

22.5

20

22.5

22.5

22.5

22.5

24

22.5

Main motor power(kw)

0.37

0.75

0.75

1.1

1.5

2.2

3

5

1.5~5

Electrical heating power(kw)

1

2.5

5

5

7.5

6

8

15

7.5~15

Heat holding power(kw)

1

2.5

2.5

2.5

2.5

2.5

2.5

5

2.5~5

Weight(kg)

60

200

290

515

785

1500

2100

3000

1010~3000

Outside dimensions(mm)

φ500

×600

φ750

×700

φ850

×1060

φ1035

×1480

φ1250

×1700

φ1480

×1840

φ1900

×2071

φ2411

×2600

φ1400×1800~φ2000×2500

2. Introduction :

1, Can make ingredients tank, mixing tank, mixing tank, fermentation tank, disinfection cylinder, aging tank, etc.
2, Apply to food, dairy, juice beverage, medicine, chemical and biological engineering, etc.
3, As the heating, cooling, heat preservation, sterilization or slurry must be of stainless steel storage tank,
especially suitable for the pasteurized milk and heat preservation, is a necessary equipment in ice cream production line.
Classification:
1. According to the open forms can be divided into: open type cold hot cylinder,enclosed cold hot cylinder
2. According to the structure can be divided into: Ordinary cold hot cylinder,up and down conical cold hot cylinder ,upper and lower head cold hot cylinder
3. According to the heating mode can be divided into: steam heating cold hot cylinder,electric heating heat and cold cylinder, gas heat and cold cylinder
Structure features:
From the Inner tank, jacket, insulation layer, the outer foreskin, reducer, stirring paddle, thermometers and other components
Inner tank:stainless steel plate 304 material, surface polishing.

Retarder:cycloid reducer fixed on the beams of the bracket, gear wheel shaft and impeller connection, use of loop connection for easy disassembly and cleaning.
Thermometer: specification of 00C~1000C, the installation beam, straight minimum medium position, the fluid material used in the lowest position also can indicate the temperature, to achieve sterilization and aging objective.
