Water Cooling Ice Cream Production Line KQ-1500L For Storage Turnkey Project
Water Cooling Ice Cream Production Line KQ-1500L For Storage Turnkey Project
Water Cooling Ice Cream Production Line KQ-1500L For Storage Turnkey Project
Water Cooling Ice Cream Production Line KQ-1500L For Storage Turnkey Project
Water Cooling Ice Cream Production Line KQ-1500L For Storage Turnkey Project
Water Cooling Ice Cream Production Line KQ-1500L For Storage Turnkey Project
Specifications
Model Number :
KQ-1500L
Certification :
ISO
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
600 Set Per Month
Delivery Time :
10 days after get your advance payment
Packaging Details :
Wooden Box
Name :
Ice Cream Production Machine
Material :
Sanitary Stainless steel 316
Turnkey Project :
Yes
Flow :
500L/Hour - 15000L / Hour
After Service :
Always
Warranty :
One year after operating
Operating type :
Continuous Operating
Accessories :
Thermometor,Guage,Valve,Filter
Description

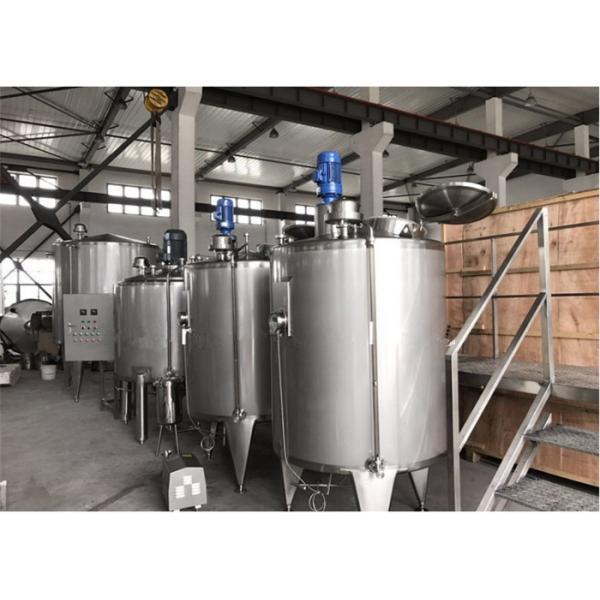

Ice Water Cooling Ice Cream Mixing Tank Processing Line Production Line

1. Technical Parameter :

Volume Dimension of tank Total Height Insulated Layer Inlet&Outlet Power
(L) (mmxmm) (mm) (mm) (mm) (kw)
100 600x550 1250 50 38 2.2
500 840x1000 1950 50 38 5.5
1000 1060x1220 2500 50 51 11
1500 1160x1500 2600 50 51 18.5
2000 1340x1500 3000 50 51 22
3000 1410x2000 3500 50 51 30
5000 1810x2000 3800 50 51 55
10000 2300x2440 4800 50 51 75

2. Introduction :

The container is applicable to the storage of various industries, according to the design requirements of the tank, can be attached Jacket, can be heated to cool, stir the function and ect, The inner surface is polished with electrolytic mirror , Conforming to GM P standard.The mixing device adopts the mechanical seal, heat preservation use the Polyurethane, the interface adopt the international standard quickly install the clamps, the convenient sanitation,the outer surface can be polished, sandblasting, matte or cold-rolled matte and other forms.

According to the storage capacity of different from 1000-15000L,storage tanks with a capacity of 20,000 or more are recommended for use in outdoor tanks.the tank is made of SUS304 / SUS316 stainless steel,according to the tank design requirements can be attached: Jacket, can be heated, cooling, manhole, glass, stirring and so on.

Water Cooling Ice Cream Production Line KQ-1500L For Storage Turnkey Project
