Inox Ice Cream Mixing Tank Food Grade Stainless Steel 304 Material Easy Operate
Inox Ice Cream Mixing Tank Food Grade Stainless Steel 304 Material Easy Operate
Inox Ice Cream Mixing Tank Food Grade Stainless Steel 304 Material Easy Operate
Inox Ice Cream Mixing Tank Food Grade Stainless Steel 304 Material Easy Operate
Inox Ice Cream Mixing Tank Food Grade Stainless Steel 304 Material Easy Operate
Inox Ice Cream Mixing Tank Food Grade Stainless Steel 304 Material Easy Operate
Specifications
Model Number :
KQ
Certification :
CE ISO
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 Set Per Month
Delivery Time :
10 days after get your advance payment
Packaging Details :
Wooden Box
Name :
Ice Cream Mixing Tank
Material :
Food Grade Stainless Steel 304
Turnkey Project :
Yes
Flow :
500L/Hour - 15000L / Hour
After Service :
Yes
Packing :
Wooden Box
Specification :
Yes
Description

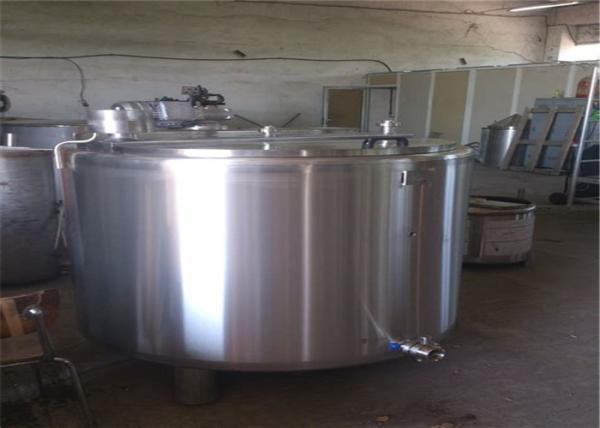

Inox Ice Cream Mixing Tank Aging Tank Maturation Tank Heating Cooling Tank

1. Introduction :

Stainless Steel Pasteurizer / Steam Type Heating and Mixing Tank 1000L

Characteristic:


1. Structure: Opening on the top & ramp bottom,
2. Heating Type: Steam Heating
3. Volume: 1000L and 2000L.

Structure:
Structure: Interior, jacket, insulation layer, the outer foreskin, speed reducer, agitator, thermometer and so on.
The interior: Stainless steel SUS304, mirror-polished surface.
Jacket: The A3 or 1Cr18Ni9Ti steel plate, strengthen circle spiral device, the cold water from bottom to top (without pressure), to achieve the best heating and cooling purposes.
Insulation group: Stainless steel plate cast into scales, insulation layer use polyurethane or mineral wool to keep the temperature, achieve insulation effect.
Speed reducer: Cycloid planetary reducer, fixed in the tray of the beam, a shaft gear wheel connect with the impeller flexibly for easy removal and cleaning.
Thermometer: Specification 100C-1000C, installed on the beam, straight out to minimum medium position, makes sure that can indicate temperature even when the liquid material to the lowest position, to achieve sterilization and aging purposes.

Application:
It is widely used in dairy industry, food, pharmaceutical, chemical, beverage and other industrial departments to heat, cool, insulate sterilization processing or store slurry. Especially suitable for the pasteurized milk, and is the necessary equipment in ice cream production line.

2. Figures :

Volume (L) Dimension D*h (mm*mm) Height (mm) In/Outlet diameter (mm) Heat preservation layer
1000 1060*1220 2550 51 60
1500 1160*1500 2850 51 60
2000 1340*1500 2900 51 60
3000 1410*2000 3400 51 60
4000 1620*2000 3450 51 60
5000 1810*2000 3500 51 60
6000 1930*2000 3550 51 60
7000 1930*2440 4000 51 60
8000 2060*2440 4000 51 60
9000 2180*2440 4050 51 60
10000 2300*2440 4050 51 60
12000 2270*3000 4600 51 60
15000 2530*3000 4700 51 60
20000 2640*3660 5400 51 60

Inox Ice Cream Mixing Tank Food Grade Stainless Steel 304 Material Easy Operate
