1000L Milk Ice Cream Manufacturing Equipment With Chocolate Production Line
1000L Milk Ice Cream Manufacturing Equipment With Chocolate Production Line
1000L Milk Ice Cream Manufacturing Equipment With Chocolate Production Line
1000L Milk Ice Cream Manufacturing Equipment With Chocolate Production Line
1000L Milk Ice Cream Manufacturing Equipment With Chocolate Production Line
1000L Milk Ice Cream Manufacturing Equipment With Chocolate Production Line
Specifications
Model Number :
KQ-300L ,KQ -500L ,KQ-1000L
Certification :
CE ISO
MOQ :
1 Set
Price :
Negotiable By both sides .
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 Set Per Month
Delivery Time :
10 days after get your advance payment
Packaging Details :
Wooden Box
Name :
Ice Cream Processing Plant
Material :
Food Grade Stainless Steel 304
Cooling :
Ice Water
Flow :
500L/Hour - 1000L / Hour
After Service :
Yes
Warranty :
One year
Packing :
Wooden Box
Condition :
New
Description

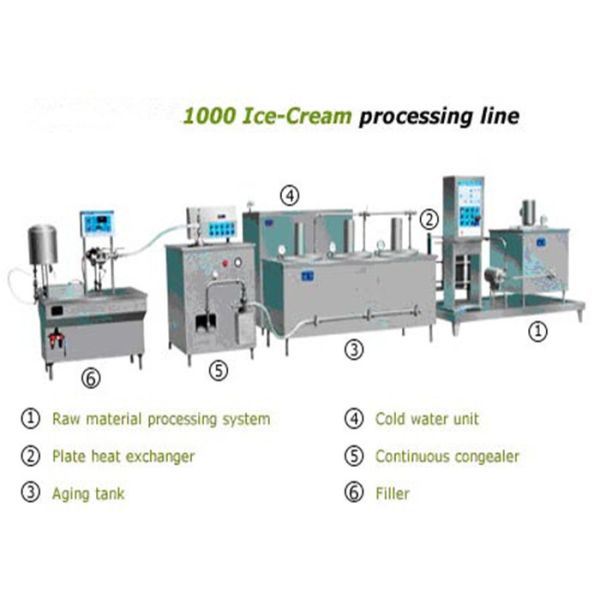

1000L Business Milk Ice Cream With Chocolate Production Line For Factory

1. Brief Introduction :

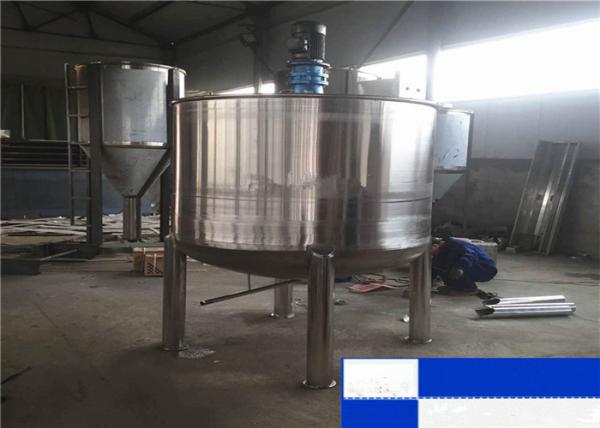

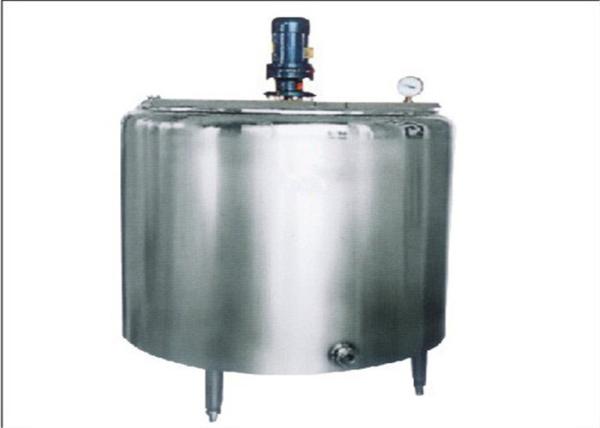

The container is applicable to the storage of various industries, according to the design requirements of the tank, can be attached Jacket, can be heated to cool, stir the function and ect, The inner surface is polished with electrolytic mirror , Conforming to GM P standard.The mixing device adopts the mechanical seal, heat preservation use the Polyurethane, the interface adopt the international standard quickly install the clamps, the convenient sanitation,the outer surface can be polished, sandblasting, matte or cold-rolled matte and other forms.

According to the storage capacity of different from 1000-15000L,storage tanks with a capacity of 20,000 or more are recommended for use in outdoor tanks.the tank is made of SUS304 / SUS316 stainless steel,according to the tank design requirements can be attached: Jacket, can be heated, cooling, manhole, glass, stirring and so on.

2. Technical Part :

Volume(L) Dimension Total Height(mm) Inlet &
Outlet(mm)		 Motor
Power(kw)		 Motor
Speed(rpm)
500 840 x 1000 2750 38 0.55 Common rotation speed is 36, 43, 60rpm. Stepless speed reducer or dual-speed reducer is also available
600 920 x 1000 2850 38 0.55
700 990 x 1000 2850 38 0.55
800 950 x 1220 3000 38 0.55
900 1010 x 1220 3000 38 0.55
1000 1060 x 1220 3150 51 0.75
1500 1160 x 1500 3350 51 0.75
2000 1340 x 1500 3410 51 1.1
3000 1410 x 2000 4000 51 1.5
4000 1620 x 2000 4250 51 1.5
5000 1810 x 2000 4300 51 2.2
6000 1980 x 2000 4550 51 2.2
7000 1930 x 2440 5000 51 2.2
8000 2060 x 2440 5000 51 3
9000 2180 x 2440 5050 51 3
10000 2300 x 2440 5050 51 3
12000 2270 x 3000 5600 51 4
15000 2530 x 3000 5700 51 4
20000 2640 x 3660 6400 51 5.5

1000L Milk Ice Cream Manufacturing Equipment With Chocolate Production Line
