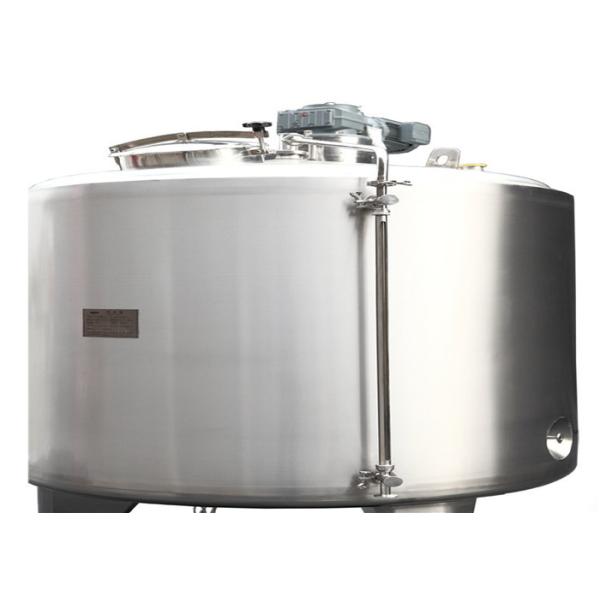

Ice Cream Production Equipment / Ice Cream Processing Line 304 Food Grade Stainless Steel
Ice Cream Production Equipment / Ice Cream Processing Line 304 Food Grade Stainless Steel
Ice Cream Production Equipment / Ice Cream Processing Line 304 Food Grade Stainless Steel
Ice Cream Production Equipment / Ice Cream Processing Line 304 Food Grade Stainless Steel
Ice Cream Production Equipment / Ice Cream Processing Line 304 Food Grade Stainless Steel
Ice Cream Production Equipment / Ice Cream Processing Line 304 Food Grade Stainless Steel
Specifications
Model Number :
KQ-300L, KQ -500L
Certification :
ISO
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 Set Per Month
Delivery Time :
35 to 50 days after get your advance payment
Packaging Details :
Export Wooden Box
Name :
Ice Cream Processing Equipment
Material :
Food Grade Stainless Steel 304
Motor :
ABB,Siemens,Dosmetic
Flow :
500L/Hour - 15000L / Hour
Install Service :
Yes
Warranty :
One year
Packing :
Wooden Pallet
Origin :
Shanghai China
Description

304 Food Grade Stainless Steel Ice Cream Production Line Processing Line

1. Introduction of Ice Cream Production Line :

Application:


The liquid mixing and blending tank is applied to reaction agitating of liquid ice cream .
Also applied to the products of homogenization, emulsifying, particle dispersion, etc


Feature:


1: Mixing system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement
2: Frequency conversion speed adjustment.
3: Material can be heated or cooled according to tech stand mixer nological requirements
4: Electric heating or steam heating
5: Various forms of blending vanes are suitable for production of different types of products.
6: Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing
7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc

2. Technical Parameter :

Effective volume (L) Dimension of tank (mm*mm) Total height (mm) Heat preservation layer (mm) Diameter of inlet&outlet (mm)
500 840*1000 2750 60 38
600 920*1000 2850 60 38
700 990*1000 2850 60 38
800 950*1220 3000 60 38
900 1010*1220 3000 60 38
1000 1060*1220 3150 60 51
1500 1160*1500 3350 60 51
2000 1340*1500 3410 60 51
3000 1410*2000 4000 60 51
4000 1620*2000 4250 60 51
5000 1810*2000 4300 60 51
6000 1980*2000 4550 60 51
7000 1930*2440 5000 60 51
8000 2060*2440 5000 60 51
9000 2180*2440 5050 60 51
10000 2300*2440 5050 60 51
12000 2270*3000 5600 60 51
15000 2530*3000 5700 60 51
20000 2640*3660 6400 60 51

Ice Cream Production Equipment / Ice Cream Processing Line 304 Food Grade Stainless Steel
