Specifications
Brand Name :
FANBAO
Model Number :
R
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Helical
Output Torque :
3.2-18000N.m
Input Speed :
600~1500rpm
Output Speed :
14-280rpm
Weight (KG) :
50kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
7.5~100
Mounting Position :
foot-mounted
Installation Form :
foot-mounted, flange-mounted, torgue arm
Description
3 Stage Helical Gear Reducer Gearbox R Series
Product Specifications
Attribute Value
Gearing Arrangement Helical
Output Torque 3.2-18000N.m
Input Speed 600-1500rpm
Output Speed 14-280rpm
Weight 50kg
Warranty 1 year
Color Customizable
Ratio 7.5-100
Mounting Position Foot-mounted
Installation Form Foot-mounted, flange-mounted, torque arm
Product Overview

The R Series helical gear reducer represents advanced mechatronic engineering with high transmission efficiency and low energy consumption. Designed for demanding industrial applications including metallurgy and wastewater treatment, this gearbox delivers reliable performance in diverse operational environments.

Three-Stage Deceleration Mechanism
  • First Stage: Pinion meshes with large gear at motor shaft end
  • Second Stage: Deceleration between large gear and coaxial pinion
  • Third Stage: Final deceleration through meshing between pinion and large gear
Technical Specifications
Model: R series reducer (R, RF, RS, RX, RXF configurations)
Motor Options: Factory equipped motors or premium brands including Siemens and ABB
Performance Range: Output speed: 0.05-1829rpm | Output torque: 50-18000NM | Power: 0.09kw-160kw

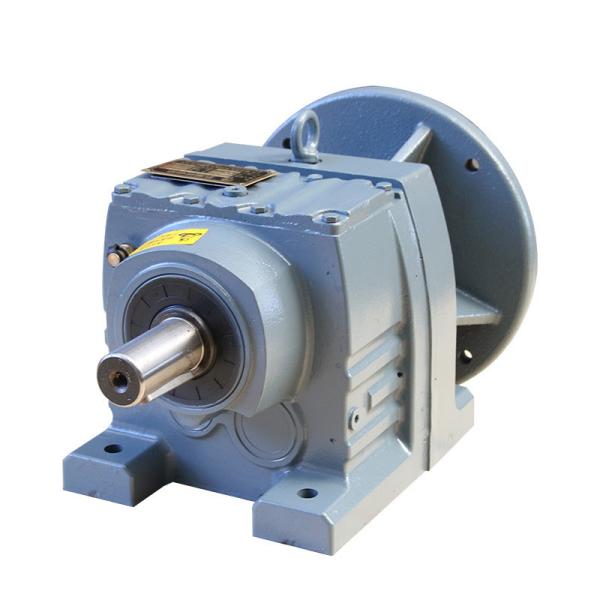

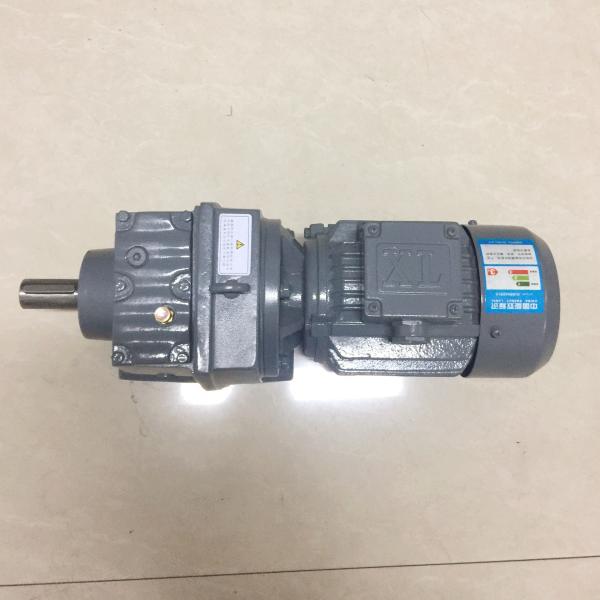

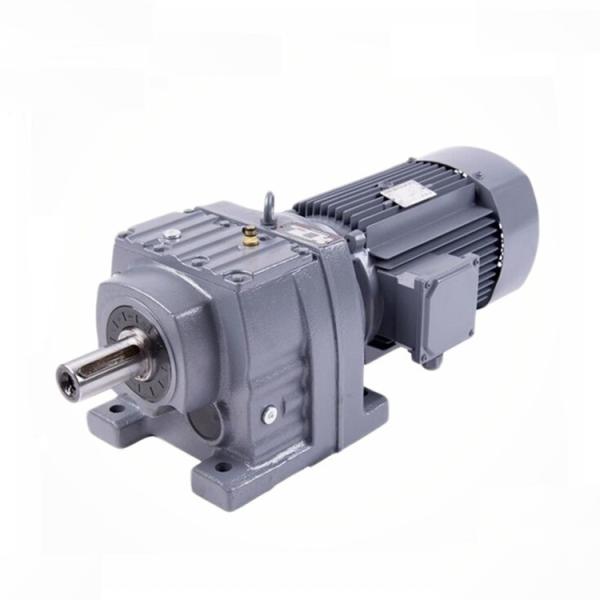

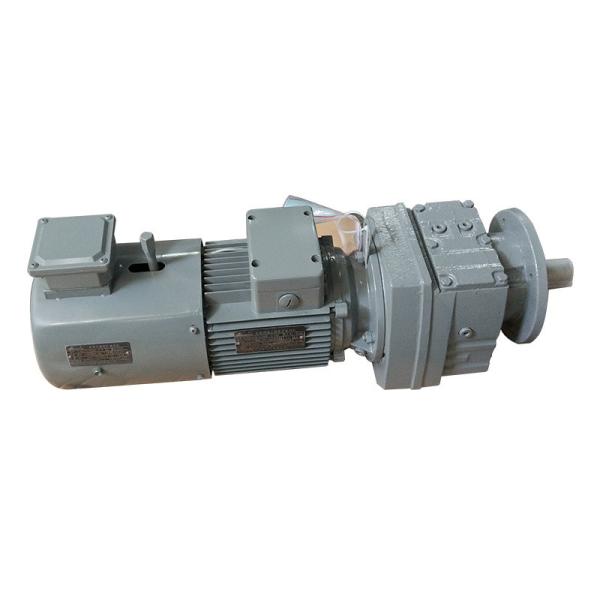

Product Images
14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation 14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation 14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation 14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation 14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation 14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation 14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation
Manufacturing Process
14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation
Packaging & Shipping
14-280rpm Speed Helical Gear Reducer 3 Stage Foot Mounted Installation
