Specifications
Brand Name :
FANBAO
Model Number :
K KA KF KAF
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Helical
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
14-280rpm
Weight (KG) :
80kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
7.5~100
Size :
K KA KF KAF KAZ KAT KAB
Efficiency :
over 95%
Gear material :
20CrMnTi
Housing material :
HT250 high-strength cast iron
Input ways :
Motor input, AM (IEC) flange input, and shaft input
output way :
solid shaft output or hollow shaft output
Description
KAB77 KF87 KAF97 Two Stage Helical Gear Reducer Bevel Speed Reduction Gearbox
Key Specifications
Attribute Value
Gearing Arrangement Helical
Output Torque 50000N.m
Input Speed 600~1800rpm
Output Speed 14-280rpm
Weight 80kg
Warranty 1 year
Ratio 7.5~100
Efficiency Over 95%
Product Overview

The K77 series helical-bevel gear units provide exceptional efficiency exceeding 90% in both torque directions across all input speeds. Engineered for durability, these high-endurance gearboxes deliver wear-free operation even under high-torque conditions.

Key Features
  • High efficiency exceeding 95% for energy savings
  • Long maintenance-free service life
  • Compatible with AC asynchronous motors and servomotors
  • Reduced backlash version available for precision positioning
  • Versatile design with multiple motor combinations
  • Wide range of installation positions and structural schemes
Technical Specifications
Gear Material
20CrMnTi
Housing Material
HT250 high-strength cast iron
Input Options
Motor input, AM (IEC) flange input, shaft input
Output Options
Solid shaft or hollow shaft output

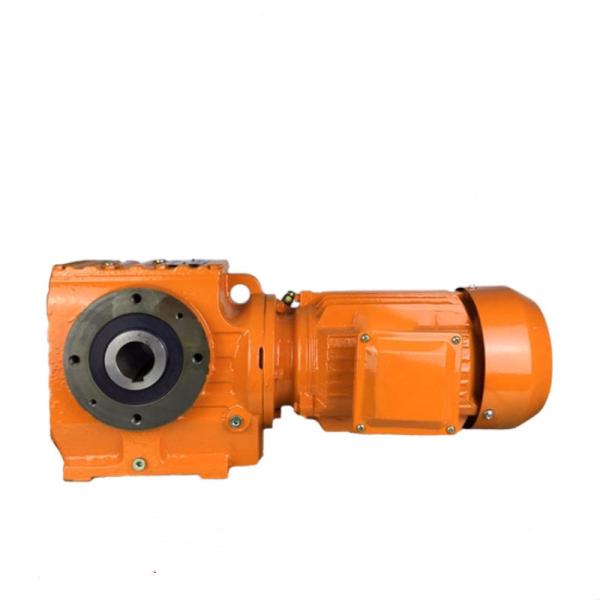

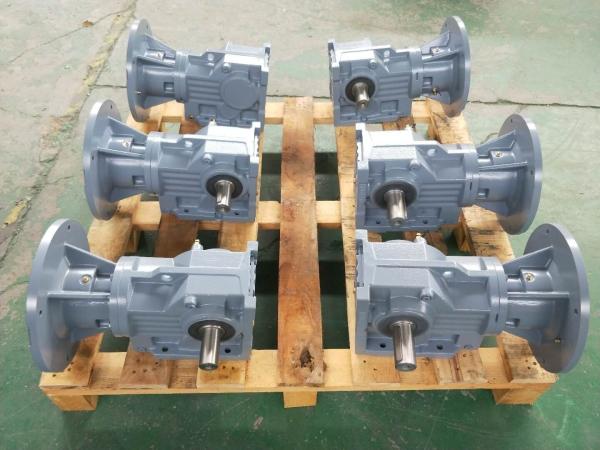

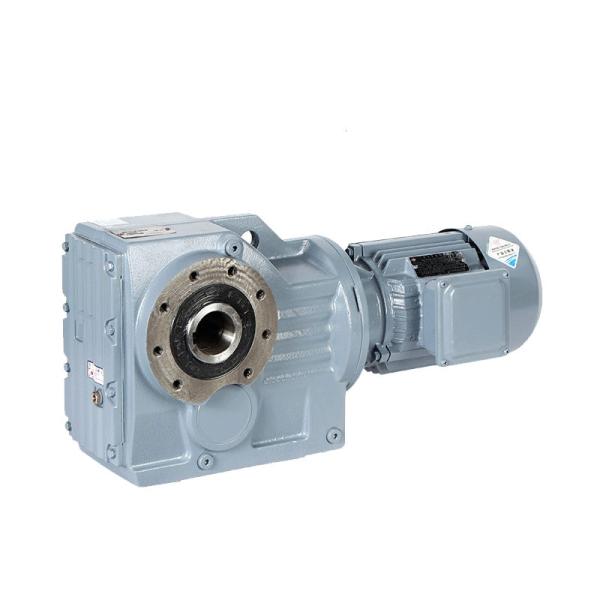

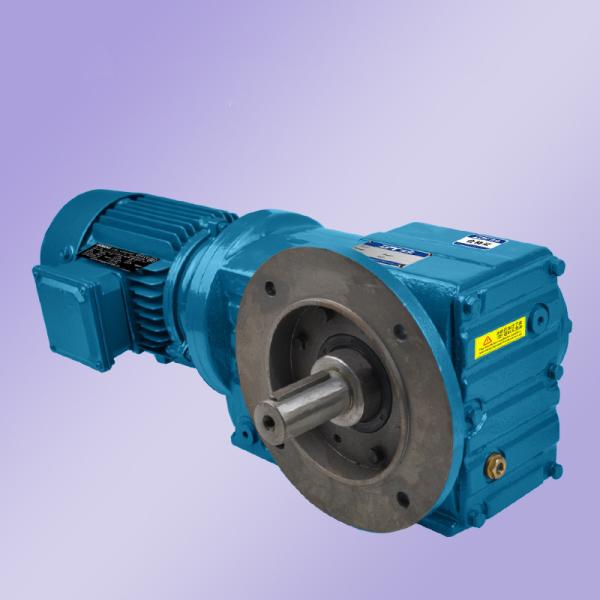

Product Images
Two Stage Helical Bevel Gear Reducer Speed Reduction Gearbox KAB77 KF87 KAF97 Two Stage Helical Bevel Gear Reducer Speed Reduction Gearbox KAB77 KF87 KAF97 Two Stage Helical Bevel Gear Reducer Speed Reduction Gearbox KAB77 KF87 KAF97
Applications

This gearbox series is widely used in industrial applications including:

  • Metallurgy and mining equipment
  • Building materials and construction machinery
  • Chemical processing and petroleum industries
  • Transportation and material handling systems
  • Paper production and sugar processing equipment
Two Stage Helical Bevel Gear Reducer Speed Reduction Gearbox KAB77 KF87 KAF97 Two Stage Helical Bevel Gear Reducer Speed Reduction Gearbox KAB77 KF87 KAF97
Manufacturing Process
Two Stage Helical Bevel Gear Reducer Speed Reduction Gearbox KAB77 KF87 KAF97
Packaging & Shipping
Two Stage Helical Bevel Gear Reducer Speed Reduction Gearbox KAB77 KF87 KAF97
