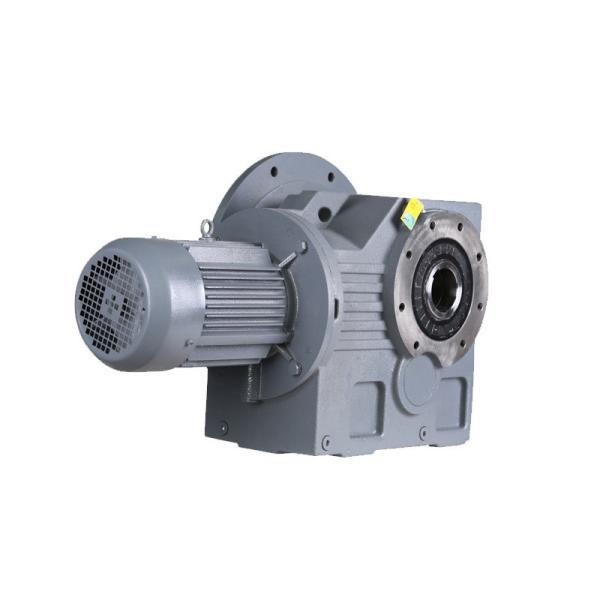

High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
Specifications
Brand Name :
FANBAO
Model Number :
K KA KF KAF
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
High Strength Worm bevel helical reducer / inline helical gearbox 600rpm-1800rpm HT250
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
280 rpm
Weight (KG) :
60kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
5~180
Size :
K KA KF KAF KAZ KAT KAB
Efficiency :
over 95%
Gear material :
20CrMnTi
Housing material :
HT250 high-strength cast iron
Input ways :
Motor input, AM (IEC) flange input, and shaft input
output way :
solid shaft output or hollow shaft output
Motor type :
AC motor
Description
HT250 High Strength Worm Bevel Inline Helical Gear Box Reducer 600rpm-1800rpm
Product Specifications
Attribute Value
Gearing Arrangement Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque 50000N.m
Input Speed 600~1800rpm
Output Speed 280 rpm
Weight 60kg
Warranty 1 year
Color Customer Requirement
Ratio 5~180
Size K KA KF KAF KAZ KAT KAB
Efficiency Over 95%
Gear material 20CrMnTi
Housing material HT250 high-strength cast iron
Input ways Motor input, AM (IEC) flange input, and shaft input
Output way Solid shaft output or hollow shaft output
Motor type AC motor
Product Features
90 Degree Ratio 60:1 With Motor K Series Helical Worm Gear Reducer
  • Modular Design: Easily connects with different motor types and power inputs for flexible solutions
  • Wide Ratio Range: Offers closely divided ratios with extremely low output speeds possible through combined units
  • Versatile Mounting: No strict limitations to mounting arrangement
  • High Strength Construction: HT250 cast iron housing with gas carburized gears for maximum load capacity
  • Extended Service Life: Properly maintained components can last over 25,000 hours
  • Low Noise Operation: Precision machining and assembly ensures quiet performance
  • High Efficiency: Up to 95% efficiency for gear units, 89% for worm gear units
  • Superior Load Capacity: Large radial loading ability with axial load capacity up to 5% of radial load
Maintenance Guidelines

Proper installation and maintenance are critical for optimal performance and longevity:

  • Install on flat surfaces with good ventilation conditions
  • Regularly check and replace lubricating oil
  • Monitor installation base, seals, and transmission shafts
  • Maintain housing and other critical components
  • Use proper cleaning procedures without altering hardware or adding cleaning agents
Technical Specifications
K Series Helical Bevel Gearbox Connection Code and Form
Size 37 47 57 67 77 87 97 107 127 157 167 187
Input Power Rating (kW) 0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-1.1 0.75-22 1.1-30 3-45 7.5-90 11-160 11-200 18.5-200
Ratio 5.36~106.38 5.81≈131.87 6.57~145.15 7.14~144.79 7.22-192.18 7.19~192.27 8.95-175.47 8.74-141.93 8.68-146.07 12.66~150.03 17.35~164.44 17.97-178.37
Torque (Nm) 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Weight (kg) 11 20 27 33 57 85 130 250 380 610 1015 1700
Weights are mean values for reference only. Maximum torque represents the highest value for the specified size across different ratios.
Available Models
K37 K47 K57 K67 K77 K87 K97 K107 K127 K157 K167 K187 KA37 KA47 KA57 KA67 KA77 KA87 KA97 KA107 KA127 KA157 KA167 KA187 KF37 KF47 KF57 KF67 KF77 KF87 KF97 KF107 KF127 KF157 KF167 KF187 KAF37 KAF47 KAF57 KAF67 KAF77 KAF87 KAF97 KAF107 KAF127 KAF157 KAF167 KAF187 KAZ37 KAZ47 KAZ57 KAZ67 KAZ77 KAZ87 KAZ97 KAZ107 KAZ127 KAZ157 KAZ167 KAZ187 KAT37 KAT47 KAT57 KAT67 KAT77 KAT87 KAT97 KAT107 KAT127 KAT157 KAT167 KAT187 KAB37 KAB47 KAB57 KAB67 KAB77 KAB87 KAB97 KAB107 KAB127 KAB157 KAB167 KAB187
Product Images
Mounting Position and Motor Terminal Box
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250 High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250 High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250 High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250 High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
Application Examples
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250 High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
Manufacturing Process
High Strength Worm Bevel Helical Reducer / Inline Helical Gearbox 600rpm-1800rpm HT250
