Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
product name :
Helical gear Motor Speed reducer F Series Flange Mounted Parallel Shaft Parallel Geared Motor Helical Speed Reducer
Description
F87 Helical Worm Motor Reducer Gearbox Parallel Solid Shaft
Product Specifications
Attribute Value
Output Torque 10.6-952000NM
Input Speed 750-1500rpm
Output Speed 14-280rpm
Warranty 1 year
Ratio 3.77~276.77
Efficiency 94%~98% (depends on transmission stage)
Mounting Position Flange, hollow shaft, solid shaft
Material Gear: 20CrMnTi, Housing: HT250 high strength cast iron
Certification ISO9001, CE
Product Overview
The F Series Parallel-Shaft Helical Gearmotors offer versatile mounting solutions while meeting international technical standards. Designed for space efficiency and durability, these units handle high overload capacities with power outputs exceeding 90KW.
The F Series features lateral housing holes for flexible side mounting, enabling direct integration into machinery. With efficiency exceeding 95%, these reducers operate with minimal vibration and noise while conserving energy.
Key Features
  • High-strength cast iron housing with precision-machined gears
  • Advanced heat treatment for extended gear life
  • Precision-calibrated shaft parallelism for optimal performance
  • Compatible with diverse motor types for system integration
  • Multiple mounting configurations for flexible installation
Model Variations
F Series: F37, F47, F57, F67, F77, F87, F97, F107, F127, F157
FA Series: FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157
FF Series: FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157
FAF Series: FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Specialty Models: FAZ, FS, FAS, FFS series with various configurations
Applications
Ideal for industrial machinery in food processing, ceramics, chemical, packaging, dyeing, woodworking, glass production, and various manufacturing applications.
Mounting Configuration
F87 Helical Gear Reducer Parallel Solid Shaft Heli Worm Gearbox 14-280rpm Output Speed F87 Helical Gear Reducer Parallel Solid Shaft Heli Worm Gearbox 14-280rpm Output Speed

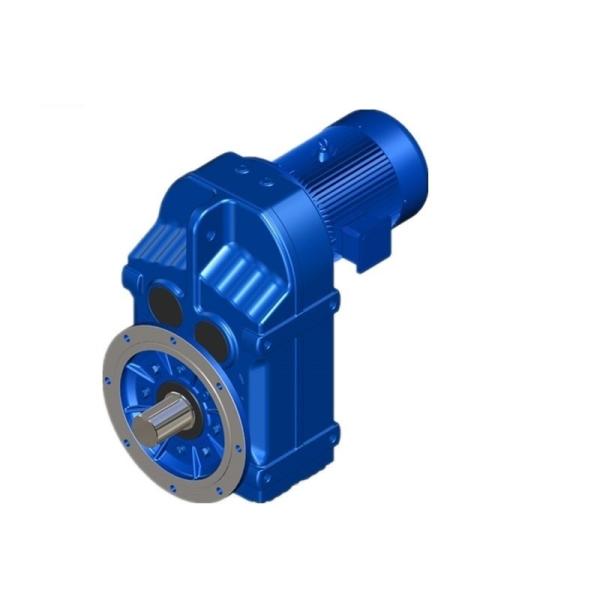

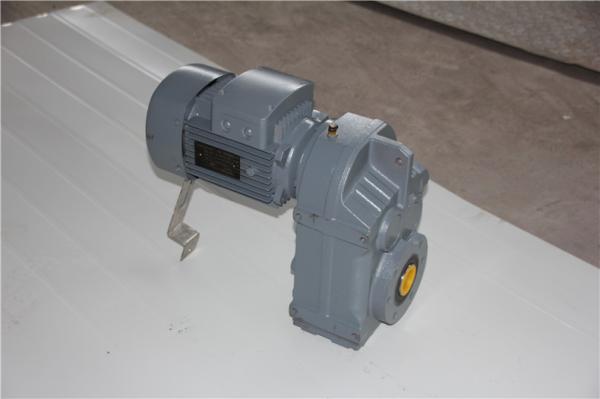

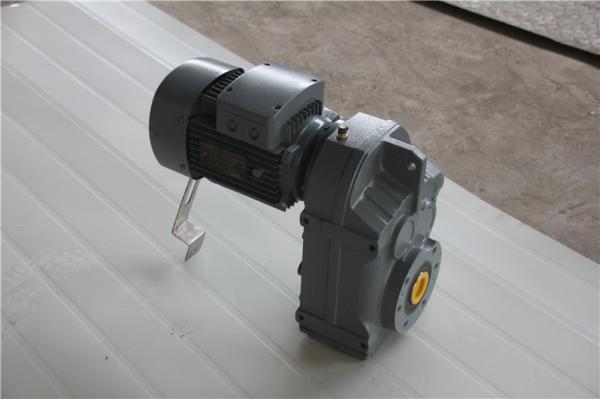

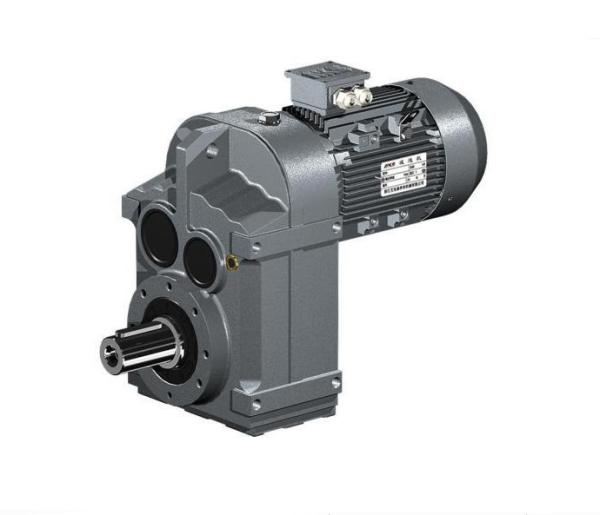

Product Images
F87 Helical Gear Reducer Parallel Solid Shaft Heli Worm Gearbox 14-280rpm Output Speed F87 Helical Gear Reducer Parallel Solid Shaft Heli Worm Gearbox 14-280rpm Output Speed
Manufacturing Process
F87 Helical Gear Reducer Parallel Solid Shaft Heli Worm Gearbox 14-280rpm Output Speed
Packaging & Shipping
F87 Helical Gear Reducer Parallel Solid Shaft Heli Worm Gearbox 14-280rpm Output Speed
