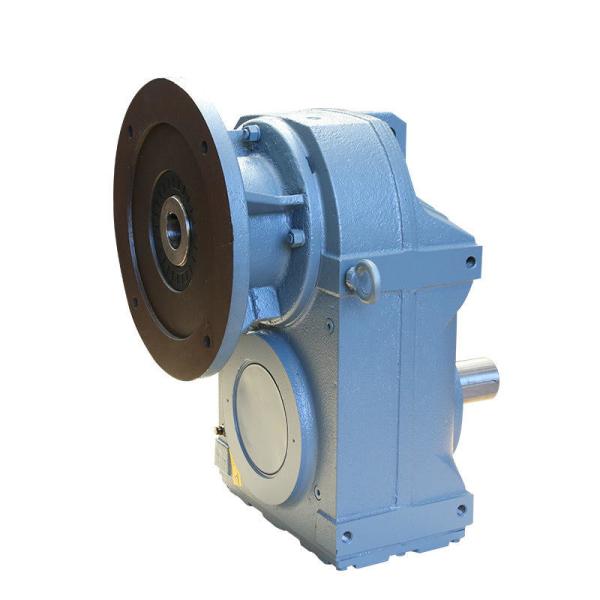

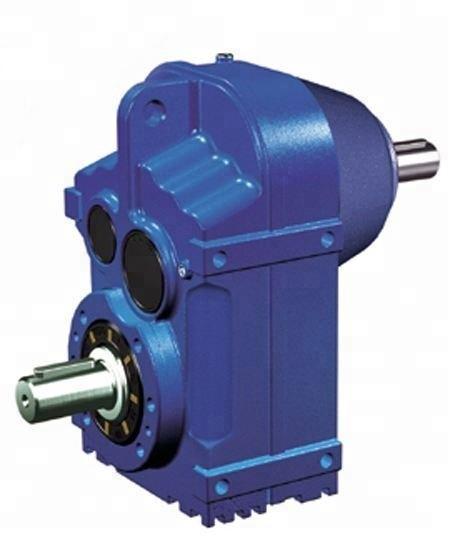

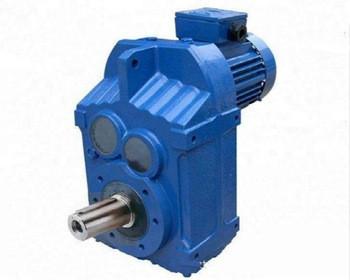

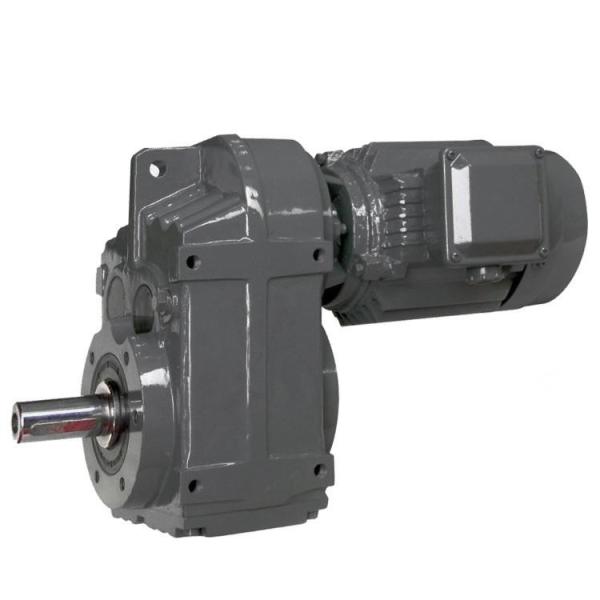

Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Parallel Bevel Helical Gear Speed Reducer Assembly For Food Machinery Transmission
Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
Description
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
Product Specifications
Attribute Value
Output Torque 10.6-952000NM
Input Speed 750-1500rpm
Output Speed 14-280rpm
Warranty 1 year
Color Customer Requirement
Ratio 3.77~276.77
Efficiency 94%~98% (depends on transmission stage)
Mounting Position Flange, hollow shaft, solid shaft
Certificate ISO9001, CE
Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company
Material Gear: 20CrMnTi, Housing: HT250 high strength cast iron
Product Overview
The F series parallel shaft gear reducer is designed for food machinery industry transmission applications. Featuring compact dimensions with high torque capacity, this reducer is engineered based on modular combination principles, offering multiple motor combinations, installation configurations, and structural solutions.
Key Advantages
  • High Efficiency: Helical gear reducer motor efficiency up to 95% with low energy consumption
  • Superior Performance: Low vibration and noise levels with high-quality steel materials and rigid cast iron housing
  • Space Saving Design: Compact footprint with reliable durability and high overload capacity (up to 90kw)
  • Modular Construction: Lightweight design with excellent heat exchange performance and high load capacity
  • Premium Components: Alloy steel quenched/tempered shafts with international brand bearings and seals
  • Durable Construction: Wear-resistant alloy bronze worm wheel with hardened grinding process for extended service life
Technical Specifications
SIZE 37 47 57 67 77 87 97 107 127 157
INPUT POWER RATING (KW) 0.18-0.30 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-260
RATIO 3.81-128.51 5.06-189.39 5.18-199.70 4.21-228.99 4.20-271.92 4.12-270.64 4.68-270.64 6.20-255.25 4.63-172.33 N/A
