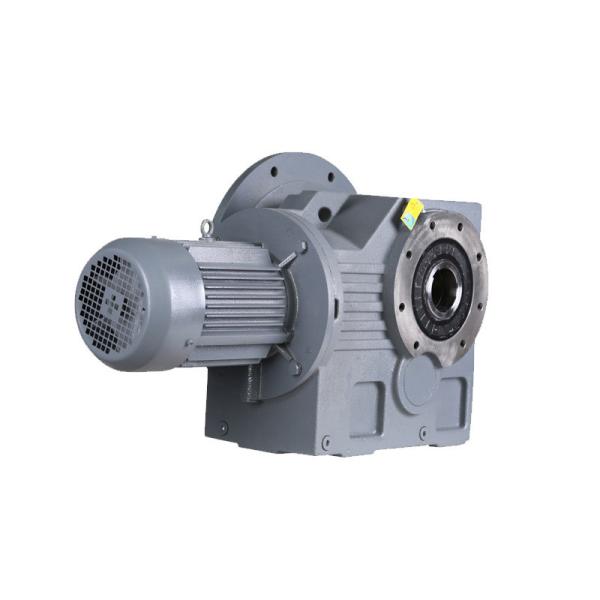

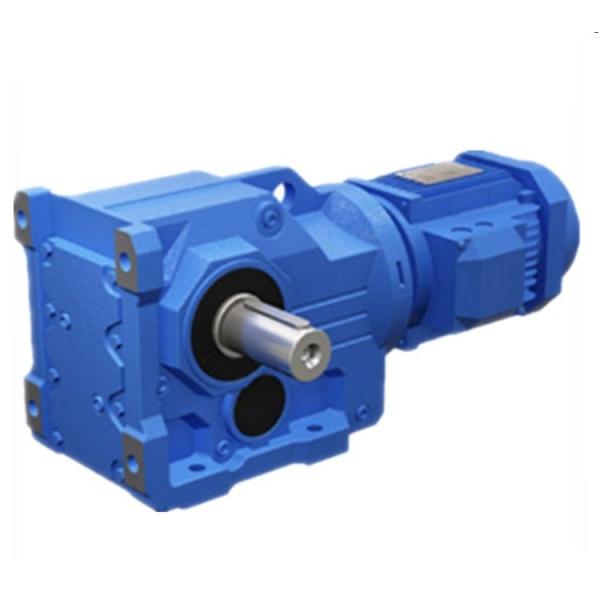

High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
Specifications
Brand Name :
FANBAO
Model Number :
K KA KF KAF
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Helical
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
14-280rpm
Weight (KG) :
80kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
7.5~100
Size :
K KA KF KAF KAZ KAT KAB
Efficiency :
over 95%
Gear material :
20CrMnTi
Housing material :
HT250 high-strength cast iron
Input ways :
Motor input, AM (IEC) flange input, and shaft input
output way :
solid shaft output or hollow shaft output
Description
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
Product Specifications
Attribute Value
Gearing Arrangement Helical
Output Torque 50000N.m
Input Speed 600~1800rpm
Output Speed 14-280rpm
Weight 80kg
Warranty 1 year
Color Customer Requirement
Ratio 7.5~100
Size K KA KF KAF KAZ KAT KAB
Efficiency Over 95%
Gear material 20CrMnTi
Housing material HT250 high-strength cast iron
Input ways Motor input, AM (IEC) flange input, and shaft input
Output way Solid shaft output or hollow shaft output
Product Overview

The K Series High Torque Helical Bevel Speed Reducer is designed to reduce motor speed while increasing output torque. Featuring advanced gear meshing technology and a novel structural design, this reducer offers exceptional performance in various industrial applications.

Key Applications
  • Food processing machinery
  • Construction equipment
  • Wood processing machines
  • Conveyor systems
  • Agricultural machinery
  • Cranes and mineral processing equipment
Product Advantages
  • Modular design for easy integration with various motors and power inputs
  • High efficiency with power-saving operation
  • Cost-effective with minimal maintenance requirements
  • Excellent sealing for wide industrial applications
  • Stable transmission with high load capacity and low noise
Technical Specifications
Size 37 47 57 67 77 87 97 107 127 157 167 187
Structure K KA KF KAF KAZ KAT KAB
Input power (kW) 0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 3-45 7.5-90 11-160 00 18.5
Ratio 5.36-106.38 5.81-131.87 6.57-145.14 7.14-144.79 7.24-192.18 7.19-197.37 8.95-176.05 8.74-141.46 8.68-146.07 12.65-150.41 17.28-163.91 17.27-180.78
Permissible torque (N.m) 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Product Images
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
Production Process
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
Packaging & Shipping
High Torque Inline Motor Helical Bevel Speed Reducer 50000N.M
