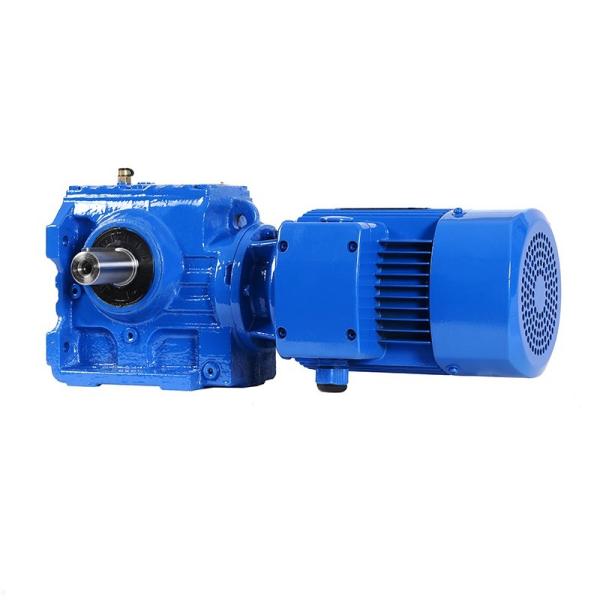

1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft

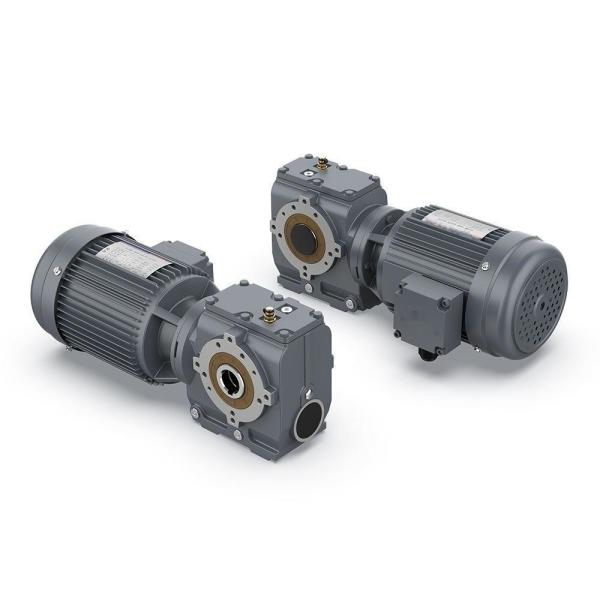

1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Lubricating oil :
GB L-CKC220-460,Shell Omala220-460
Gear material :
20CrMnTi alloy steel
Surface hardness of gears :
HRC58°~62°
Gear core hardness :
HRC33~40
Description
Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
Product Specifications
Attribute Value
Output Torque 10-4890(N.M)
Input Speed 1450rpm
Output Speed 0.12-397(rpm)
Warranty 1 year
Color Customer Requirement
Efficiency 94%~98%(depends on transmission stage)
Mounting Position Foot, flange, torque, arm, hollow/s
Gearing Arrangement Worm
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62°
Gear core hardness HRC33~40
Product Overview
The S series helical gear reducer is a right-angle speed reduction gearing system composed of helical gears, worms, and gears, optimized according to international standards. This modular design features a high-stainless cast iron case, combining helical gear and worm gear technologies for superior efficiency and strength compared to standard aluminum alloy worm gearboxes.
Key Features
  • High precision and efficiency with fine classification in transmission ratio
  • Wide range of speed options and large transmission torque capacity
  • Reliable performance with low noise operation
  • Flexible installation options for various industrial applications
  • Convenient maintenance and long service life
  • Ideal for agriculture and other industrial sectors
Technical Specifications
SIZE Shaft Dia. (mm) Center Height Output Flange Dia. (mm) Power (kw) Ratio Permissible Torque(N.m) Weight (kgs)
Solid/Hollow 37 φ20k6/φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6/φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6/φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6/φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6/φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6/φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6/φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
Product Images
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft 1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft 1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft 1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft 1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft 1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
Quality Assurance
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft 1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft 1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
Production Process
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
Packaging & Shipping
1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft
Frequently Asked Questions
Q1: What should I provide when choosing a gearbox/speed reducer?
A1: The best way is to provide the motor drawing with parameters. Our engineers will recommend the most suitable gearbox model. Alternatively, provide:
  • Type, model and torque requirements
  • Ratio or output speed needed
  • Working conditions and connection method
  • Quality requirements and installed machine name
  • Input mode and input speed
  • Motor brand model or flange and motor shaft size
Q2: Are you a manufacturer?
A2: Yes, we are a professional manufacturer of industrial gear reducers with our own production facilities and quality control systems.
