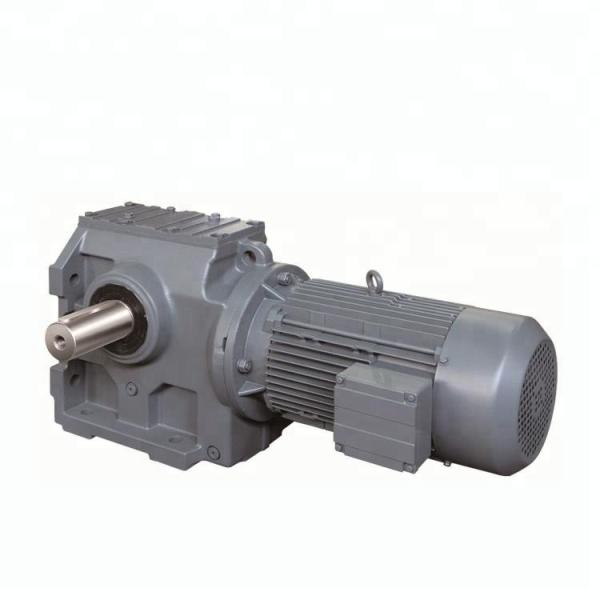

Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Description
Right Angle Inline Helical Gear Speed Reducer Bevel Gearbox High Torque
Product Attributes
Attribute Value
Output Torque 10-4890(N.M)
Input Speed 1450rpm
Output Speed 0.12-397(rpm)
Warranty 1 year
Color Customer Requirement
Efficiency 94%~98%(depends on transmission stage)
Mounting Position Foot, flange, torque, arm, hollow/s
Gearing Arrangement Worm
S Series Right Angle Helical Bevel Gearbox Reducer with High Output Torque

The S97/SA97/SF97/SAF97/SAZ97 helical gear worm gear reducer series features a helical gear worm gear design that enhances structural efficiency. This configuration provides higher transmission efficiency and load capacity compared to single-stage worm gear transmission, while optimizing space utilization and enabling larger transmission ratios in compact volumes. The unit can be combined with various speed reduction gearboxes to meet diverse application requirements.

Key Features
  • Compact structure with modular design
  • High efficiency exceeding 90%
  • Extended service life
  • Multi-stage (2 or 3 stages) gear units for low output speed
  • Multiple output shaft options: hollow with keyed connection, shrink disk, splined hollow shaft, or torque arm
  • Compatible with other gearbox types (R Series, UDL Series)
Application Industries
  • Food processing and light industry
  • Electrical and engineering machinery
  • Metallurgical and cement production
  • Environmental protection equipment
  • Mining and construction machinery
  • Transportation and building materials
  • Rubber, petroleum, and chemical processing
Technical Specifications
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62°
Gear core hardness HRC33~40
Input/Output shaft material 42CrMo alloy steel
Input/Output shaft hardness HRC25~30
Machining precision of gears Accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment Tempering, cementing, quenching
Efficiency 94%~96% (depends on transmission stage)
Noise (MAX) 60~68dB
Temperature rise (MAX) 40℃
Oil temperature rise (MAX) 50℃
Vibration ≤20μm
Backlash ≤20Arcmin
Brand of bearings China top brand bearing, or other brands upon request
Dimensional Specifications
SIZE Shaft Dia. (mm) Center Height Output Flange Dia. (mm) Power (kw) Ratio Permissible Torque(N.m) Weight (kgs)
37 φ20k6 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 280 φ450 1.50-22.0 12.5-230.48 4000 170
Product Images
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Quality Assurance
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
Production Process
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox

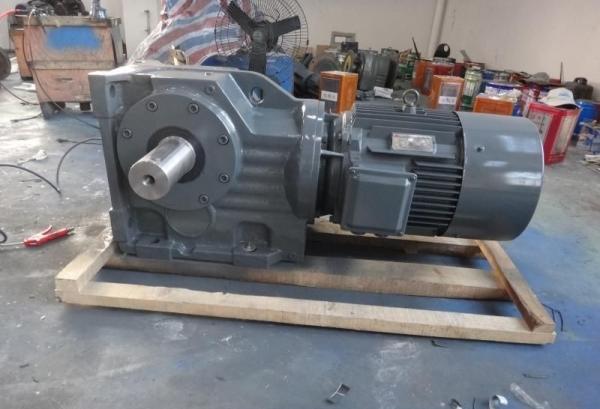

Packaging & Shipping
Right Angle Inline Helical Bevel Gearmotor High Torque Helical Worm Gearbox
