Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox
Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox
Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox
Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox
Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox
Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox
Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
product name :
Helical gear Motor Speed reducer F Series Flange Mounted Parallel Shaft Parallel Geared Motor Helical Speed Reducer
Description
Boat Marine Bevel Helical Gear Reducer Hollow Shaft Motor Worm Gearbox
Product Specifications
Output Torque 10.6-952000NM
Input Speed 750-1500rpm
Output Speed 14-280rpm
Warranty 1 year
Ratio 3.77~276.77
Efficiency 94%~98% (depends on transmission stage)
Mounting Position Flange, hollow shaft, solid shaft
Certificate ISO9001, CE
Material Gear: 20CrMnTi, Housing: HT250 high strength cast iron
Product Description

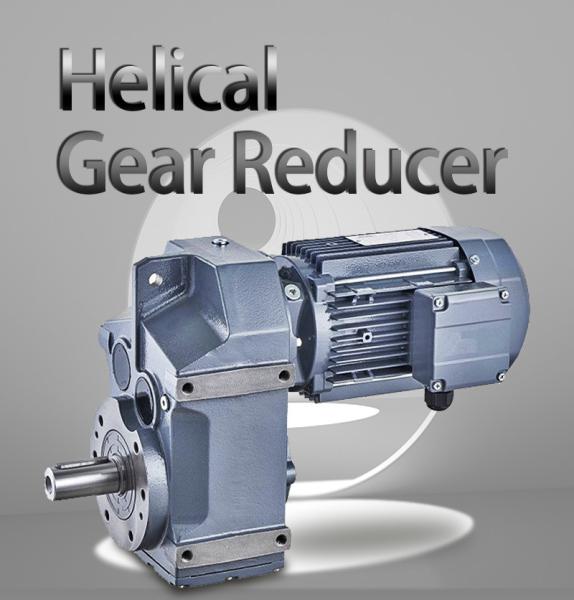

F Series Helical Gearbox Reducer

Parallel output design with compact structure and high transmission torque for stable operation, low noise levels, and extended service life. Available in multiple installation configurations including base, hollow shaft, flange, torque arm, and small flange installations.

The basic type ensures secondary input and output rotate in the same direction, with the third level operating oppositely. For optimized F/R combinations, personalized consultation is recommended.

Exceptional average efficiencies: second stage achieves 96%, third stage at 94%, and F series/R series combination delivers 85% efficiency.

Specifications
  • Model: F series reducer
  • Installation: F, FF, FA, FAF, FAZ
  • Motor: Factory equipped motor, Siemens, ABB, etc.
  • Ratio: 3.81～281.71
Structure Types
  • F - Common shaft extension coupling parallel shaft helical gear reducer
  • FA - Shaft-mounted parallel shaft helical gear reducer
  • FF - Flanged parallel shaft oblique gear Gear reducer
  • FAF - Shaft mounted flange type parallel shaft helical gear reducer
Available Models
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157
FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157
FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157
FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
FAZ37, FAZ47, FAZ57, FAZ67, FAZ77, FAZ87, FAZ97, FAZ107, FAZ127, FAZ157
FS37, FS47, FS57, FS67, FS77, FS87, FS97, FS107, FS127, FS157
F37R17, F47R17, F57R37, F67R37, F77R37, F87R57, F97R57, F107R77, F127R77
FAS37, FAS47, FAS57, FAS67, FAS77, FAS87, FAS97, FAS107, FAS127, FAS157
FA37R17, FA47R17, FA57R37, FA67R37, FA77R37, FA87R57, FA97R57, FA107R77
FFS37, FFS47, FFS57, FFS67, FFS77, FFS87, FFS97, FFS107, FFS127, FFS157
FF37R17, FF47R17, FF57R37, FF67R37, FF77R37, FF87R57, FF97R57, FF107R77
FAFS37, FAFS47, FAFS57, FAFS67, FAFS77, FAFS87, FAFS97, FAFS107, FAFS127, FAFS157
FAF37R17, FAF47R17, FAF57R37, FAF67R37, FAF77R37, FAF87R57, FAF97R57, FAF107R77
FAZS37, FAZS47, FAZS57, FAZS67, FAZS77, FAZS87, FAZS97, FAZS107, FAZS127, FAZS157
FAZ37R17, FAZ47R17, FAZ57R37, FAZ67R37, FAZ77R37, FAZ87R57, FAZ97R57, FAZ107R77
Applications

Industrial applications including food processing, ceramics, chemical, packaging, dyeing, wood working, and glass manufacturing.

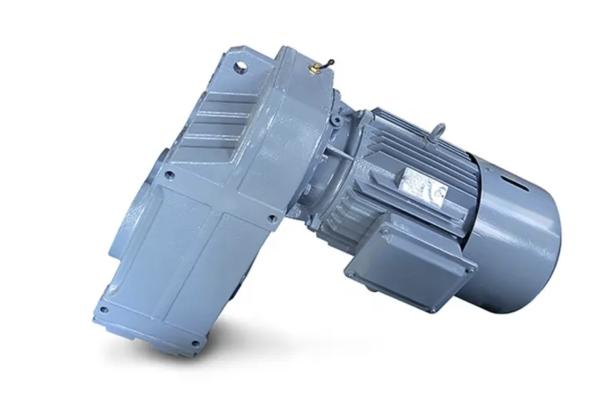

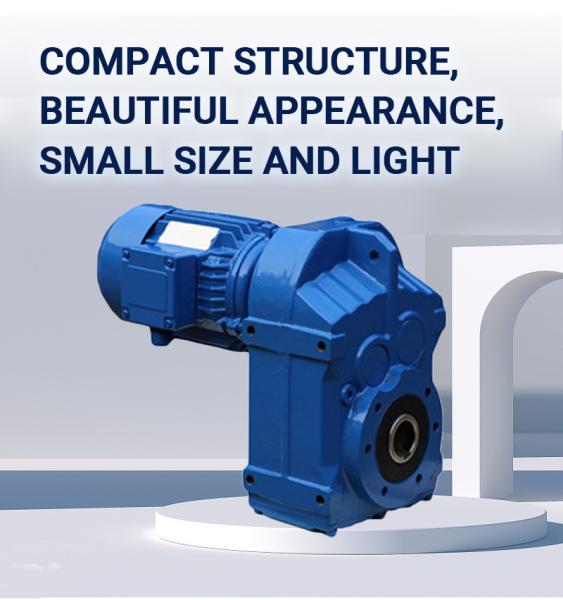

Product Images
Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox Low Noise Boat Marine Helical Bevel Gear Unit Hollow Shaft Motor Worm Gearbox
