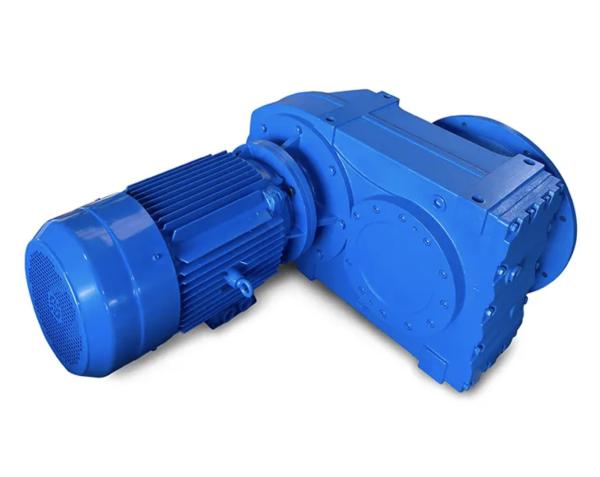

High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox
High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox
High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox
High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox
Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
product name :
Helical gear Motor Speed reducer F Series Flange Mounted Parallel Shaft Parallel Geared Motor Helical Speed Reducer
Description
F Series Parallel Shaft Mounted Gear Reducer Helical Gearbox Motor
Product Specifications
Attribute Value
Output Torque 10.6-952000NM
Input Speed 750-1500rpm
Output Speed 14-280rpm
Warranty 1 year
Ratio 3.77~276.77
Efficiency 94%~98%(depends on the transmission stage)
Mounting Position Flange, hollow shaft, solid shaft
Certificate ISO9001, CE
Material Gear: 20CrMnTi, Housing: HT250 high strength cast iron
Product Overview

The F Series Parallel Shaft Helical Gear Reducer features a parallel output design with standardization and modularization for compatibility with international brands. Its compact structure offers 2-3 stages of reduction with ratios from 1/4 to 1/254, providing high transmission torque for stable operation, low noise, and extended service life.

Key Features
  • High rigidity modern exterior design
  • Multiple installation options: base, hollow shaft, flange, torque arm, small flange
  • Wide ratio accommodation range
  • Low noise operation
  • Extended service life
Technical Specifications
Size Shaft Dia. (mm) Center Height Output Flange Dia. (mm) Power (kw) Ratio Permissible Torque (n.m) Weight (kgs)
37 φ25k6 76 φ110/160 0.18-3.0 3.81-128.51 200 13
Model Variants

The F Series includes multiple configurations: F (common shaft extension), FA (shaft-mounted), FF (flanged), FAF (shaft mounted flange type), and other specialized variants with various size options from F37 to F157.

Applications

Industrial applications include food processing, ceramics, chemical, packaging, dyeing, wood working, glass manufacturing, and more across various industries.

High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox
Quality Assurance
High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox
High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox High Rigidity Parallel Shaft Mounted Gear Reducer F Series Helical Gearbox
