FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
4.5-2590N
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
input speed :
1400rpm
Ratio :
20-60
Description
WPS 100 120 135 147 155 175 200 250 20Hp Right Angle Worm Gear Reducer Cast Iron
Product Specifications
Gearing Arrangement: Worm
Output Torque: 4.5-2590N
Output Speed: 14-280rpm
Voltage: 220V-380v
Weight: 6kg
Speed Ratio: 5 7.5 10 15:1 20 25 30 40 50 60 80 100:1
Input Speed: 1400rpm
Ratio: 20-60
Product Overview

The WP series reducer features a worm made of 45# high-quality heat-treated steel and a worm wheel cast with wear-resistant tin bronze. This combination provides exceptional bearing capacity, making it ideal for plastic, metallurgy, beverage, mining, lifting transportation, chemical construction, and other mechanical equipment requiring speed reduction drive.

Key Features
  • Stable transmission with low vibration, impact, and noise
  • Large reduction ratio with wide versatility for various mechanical applications
  • Compact single-stage transmission capable of achieving large transmission ratios
  • Excellent self-locking properties, eliminating the need for brake devices in many applications
  • Constructed with durable materials for long service life
Operation Considerations
  • Higher meshing friction requires specific attention to lubrication and cooling
  • Transmission efficiency is lower than gear systems due to friction characteristics
Maintenance Guidelines

Initial Oil Change: After 300 hours of operation

Cleaning: Flush gear unit with appropriate detergents during oil changes

Oil Compatibility: Do not mix mineral oil and synthetic oil

Regular Checks: Monitor oil level consistently for optimal performance

Technical Specifications
Model Ratio A AB B BB CC H LL M N E F G Z Input Shaft Output Shaft Weight (kg) Oil (L)
40 143 87 114 74 40 141 60 90 100 70 80 13 10 25 12 4 0.3

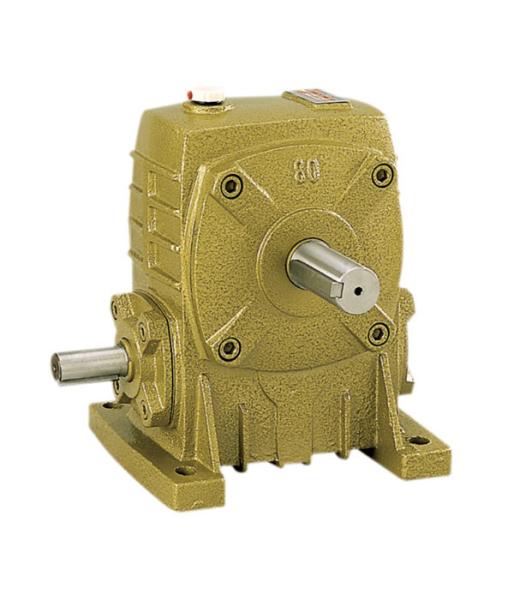

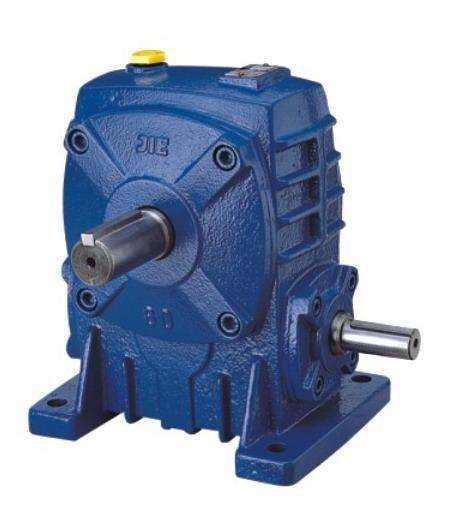

Product Images
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250 FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250 FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
Technical Drawings
FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250 FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250 FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250 FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250 FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
Packaging & Shipping

Standard export wooden case packaging ensures safe transportation.

FANBAO 20Hp Right Angle Worm Drive Gearbox Cast Iron WPS 100 120 135 147 155 175 200 250
