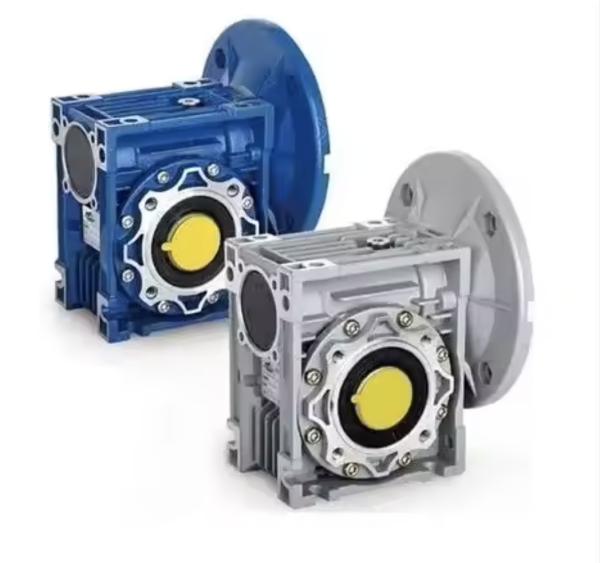

NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox
NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox
NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox
NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox
Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
UP TO 2320
Rated Power :
0.06-15KW
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
input speed :
1400rpm or other
Input Form :
IEC flange for mounting motor
Output Form :
Solid or Hollow shaft,flange output
Description
NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor
Product Specifications
Attribute Value
Gearing Arrangement Worm
Output Torque Up to 2320
Rated Power 0.06-15KW
Output Speed 14-280rpm
Voltage 220V-380V
Weight 6kg
Speed Ratio 5, 7.5, 10, 15:1, 20, 25, 30, 40, 50, 60, 80, 100:1
Input Speed 1400rpm or other
Input Form IEC flange for mounting motor
Output Form Solid or Hollow shaft, flange output
Product Description

The NMRV series worm gear reducers are available in single-stage and double-stage configurations, offering versatile solutions for various industrial applications.

Single Stage Worm Gear Reducer Features
  • Models 25-90 feature aluminum alloy die-cast housing with attractive appearance, compact structure, and rust-proof surface
  • Models 110-150 utilize cast iron housing for enhanced durability and multi-azimuth installation
  • Excellent heat dissipation ensures safe, reliable, and efficient operation
  • High load capacity provides stable transmission with minimal vibration and noise
  • Versatile connection options for power input and torque output
  • Flexible mounting options with well-designed box outline and foot hole configuration
Double Stage Worm Gear Reducer Features
  • Combines two single-stage reducers for greater ratio options
  • Common combinations include 25/30, 25/40, 30/40, 30/50, 30/63, 40/75, 40/90, 50/110, 63/130, 63/150
  • Custom combinations available based on specific requirements
Technical Specifications

Models: NMRV025, 030, 040, 050, 063, 075, 090, 110, 130, 150

Ratio Options: 1:5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100

Color: Blue, Silver or custom upon request

Noise Level: Low noise (<50DB)

Materials:

  • Housing: Die-Cast Aluminum Alloy
  • Worm Gear: Bronze 9-4#
  • Worm: 20CrMnTi with carburizing and quenching (surface hardness 56-62HRC)
  • Shaft: Chromium steel-45#

Certifications: ISO9001, CE, 3C, OEM

Warranty: 12 months

NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox NMRV 075 RV63 Worm Gear Reducer Servo Motor Nmrv 040 Gearbox

Our speed reducers are manufactured in strict accordance with ISO9001 standards, ensuring high quality at competitive prices. We use premium components including SKF oil seals, Shell lubricants, and NSK bearings. All housings and gears are produced under stringent quality control with large inventory availability. Custom reducer solutions are available upon request.
