Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
UP TO 2320
Rated Power :
0.06-15KW
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
input speed :
1400rpm or other
Input Form :
IEC flange for mounting motor
Output Form :
Solid or Hollow shaft,flange output
Description
Double Speed Worm Gear Reducer Motor Transmission Reduction NMRV030 RV30 B14
Product Specifications
Attribute Value
Gearing Arrangement Worm
Output Torque UP TO 2320
Rated Power 0.06-15KW
Output Speed 14-280rpm
Voltage 220V-380v
Weight 6kg
Speed ratio 5 7.5 10 15:1 20 25 30 40 50 60 80 100:1
Input speed 1400rpm or other
Input Form IEC flange for mounting motor
Output Form Solid or Hollow shaft, flange output
Product Description
The NMRV030 RV30 B14 worm gear speed reducer motor provides a high-quality transmission solution for industrial applications including manufacturing plants, food processing, and construction.
Key Features
  • Versatile Ratios: Available in multiple gear ratios (5-100:1) to meet various speed reduction requirements
  • Durable Construction: High-quality aluminum housing with bronze worm gear for long-lasting performance
  • Compact Design: Lightweight (1.5kg) and space-efficient for installation in confined spaces
  • Customization Options: OEM support available for tailored solutions
  • Quality Components: Features premium bearings (C&U), seals (NAK/SKF), and lubricants
  • Certified Quality: Compliant with ISO9001, CE, and 3C standards
Technical Specifications
Model NMRV025,030,040,050,063,075,090,110,130,150
Material Housing: Die-Cast Aluminum Alloy
Worm Gear: Bronze 9-4#
Worm: 20CrMnTi with carburizing/quenching (56-62HRC)
Shaft: Chromium steel-45#
Noise Level Low noise (<50DB)
Packing Carton and Wooden Case
Warranty 12 months
Input Power 0.06kw to 15kw

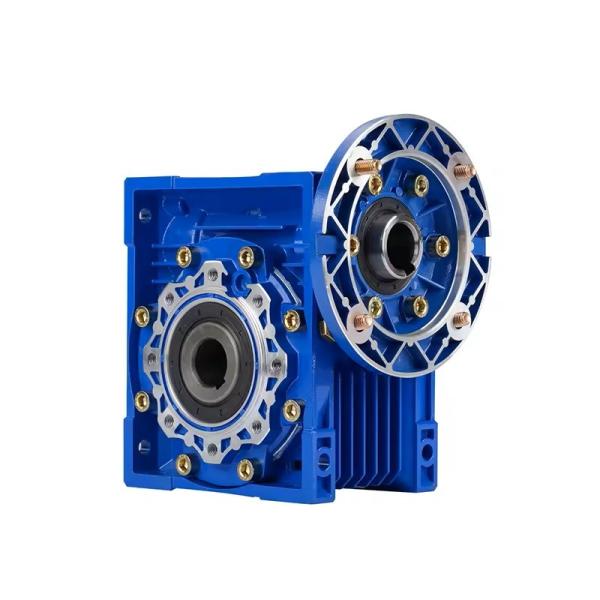

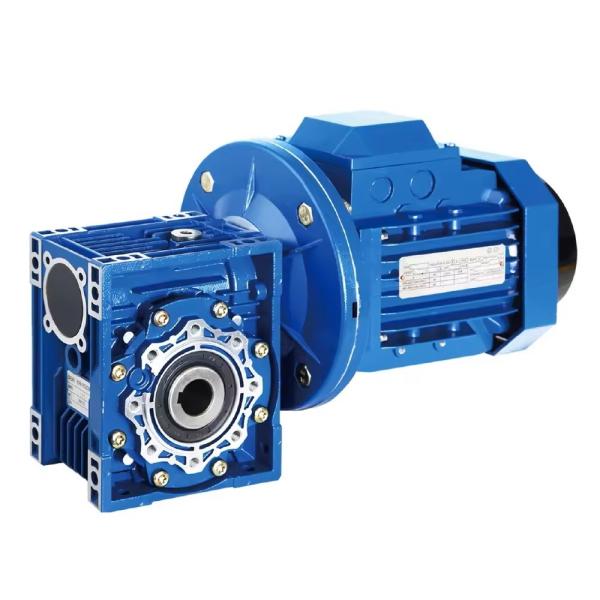

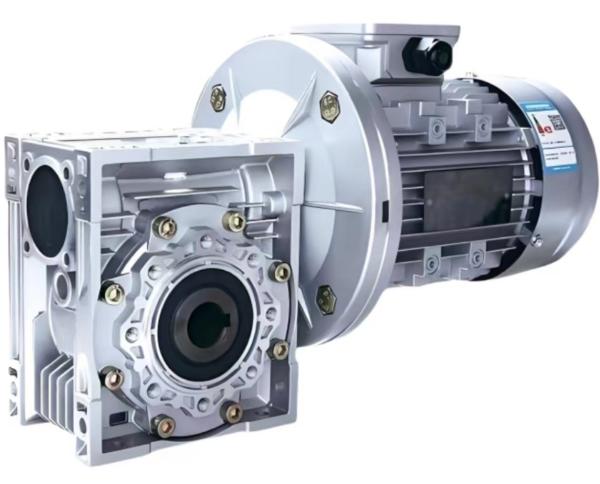

Product Images
Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW Double Speed Worm Gear Reducer Gearbox NMRV030 RV30 B14 0.06-15KW
Our speed reducers are manufactured to ISO9001 standards using premium components including SKF oil seals, Shell lubricants, and NSK bearings. All products undergo strict quality control and are available from stock. Custom solutions are available upon request.
