Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
4.5-2590N
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
input speed :
1400rpm
Ratio :
20-60
Description
WPA WPD WPWD WPDS Copper Speed Worm Gear Reducer Gearbox
Key Specifications
Gearing Arrangement Worm
Output Torque 4.5-2590N
Output Speed 14-280rpm
Voltage 220V-380V
Weight 6kg
Speed Ratio 5:1 to 100:1 (customizable)
Input Speed 1400rpm
Ratio 20-60
Product Overview

The WP series worm gear speed reducer features a worm made of 45# high-quality heat-treated steel and a worm wheel cast with tin bronze for exceptional wear resistance and bearing capacity. Ideal for various industrial applications including plastics, metallurgy, beverage production, mining, lifting equipment, and chemical construction.

Key Features
  • Smooth operation with minimal vibration, impact, and noise
  • Large deceleration ratio with wide versatility for multiple mechanical applications
  • Compact single-stage transmission capable of achieving high transmission ratios
  • Excellent self-locking properties, eliminating need for braking devices in many applications
  • Manufactured to national standards with compatible standard components
Technical Considerations
  • Higher meshing friction results in lower efficiency compared to gear transmissions
  • Requires proper lubrication and cooling systems due to heat generation
Technical Specifications
Model Ratio A AB B BB CC H LL M N E F G Z Input Shaft Output Shaft Weight (kg) Oil (L)
40 143 87 114 74 40 141 60 90 100 70 80 13 10 25 12 4*2.5 4 0.3

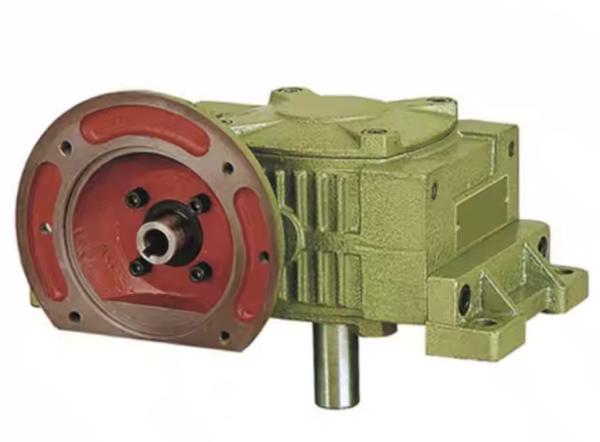

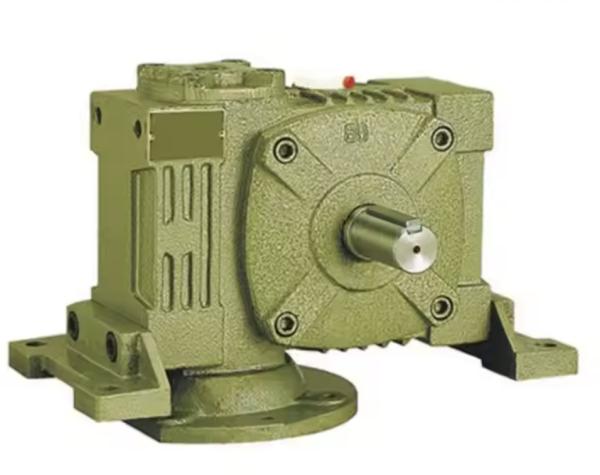

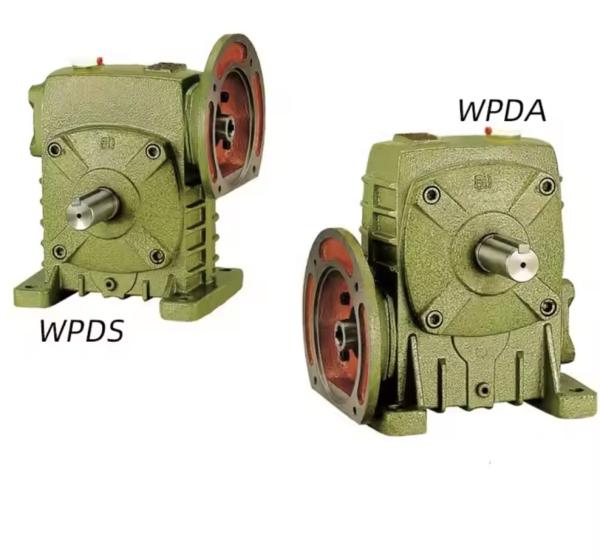

Product Images
14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed 14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed 14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed
Technical Drawings
14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed 14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed 14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed
Additional Specifications
14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed 14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed 14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed
Packaging & Shipping

Standard export wooden case packaging ensures safe transportation.

14-280rpm Worm Drive Reduction Gearbox WPA WPD WPWD WPDS Copper Speed
