NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
UP TO 2320
Rated Power :
0.06-15KW
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
input speed :
1400rpm or other
Input Form :
IEC flange for mounting motor
Output Form :
Solid or Hollow shaft,flange output
Description
Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v
Product Specifications
Attribute Value
Gearing Arrangement Worm
Output Torque UP TO 2320
Rated Power 0.06-15KW
Output Speed 14-280rpm
Voltage 220V-380v
Weight 6kg
Speed Ratio 5 7.5 10 15:1 20 25 30 40 50 60 80 100:1
Input Speed 1400rpm or other
Input Form IEC flange for mounting motor
Output Form Solid or Hollow shaft, flange output
Product Overview

The B3 0.37-7.5KW worm gear reducer is engineered for seamless integration with motors of corresponding installation sizes. Its compact design makes it ideal for machinery with space constraints, providing efficient speed reduction while significantly increasing torque output.

Key Features
  • Premium quality aluminum alloy die-cast gearbox
  • Precision-engineered worm gear and shaft
  • Minimal noise generation (<50DB) and reduced temperature elevation
  • User-friendly installation with high operational efficiency
  • Efficient and safe operation
Technical Specifications
Material Composition

Housing: Aluminum alloy die-cast
Worm Gear: Nodular cast iron and bronze
Worm: 20CrMnTi with carburizing and quenching
Shaft: Chromium steel-45#

Models Available

NMRV025, 030, 040, 050, 063, 075, 090, 110, 130, 150

Certifications

ISO9001, CE, 3C, OEM

Warranty

12 months

Input Power Range

0.06kw to 15kw

IEC Flange Options

56B5, 56B14, 63B5, 63B14, 71B5, 71B14, 80B5, 80B14, 90B5, 90B14, 100B5, 100B14, 112B5, 112B14, 132B5, 160B5

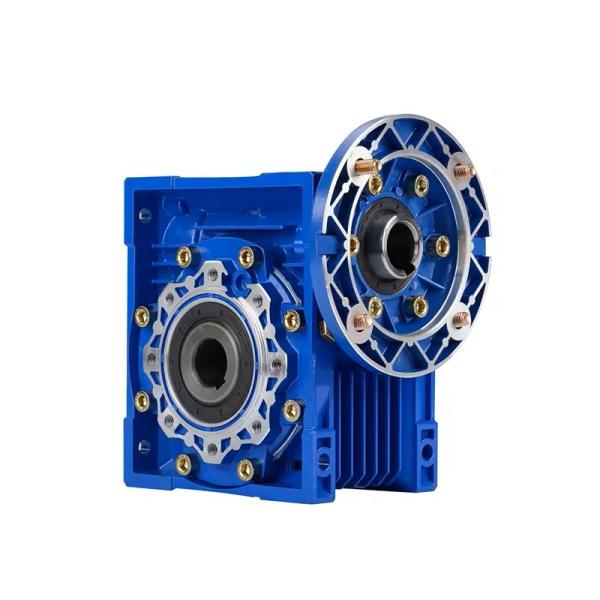

Product Images
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
NMRV Customized Servo Worm Speed Reducer B3 0.37-7.5KW 220V - 380v
