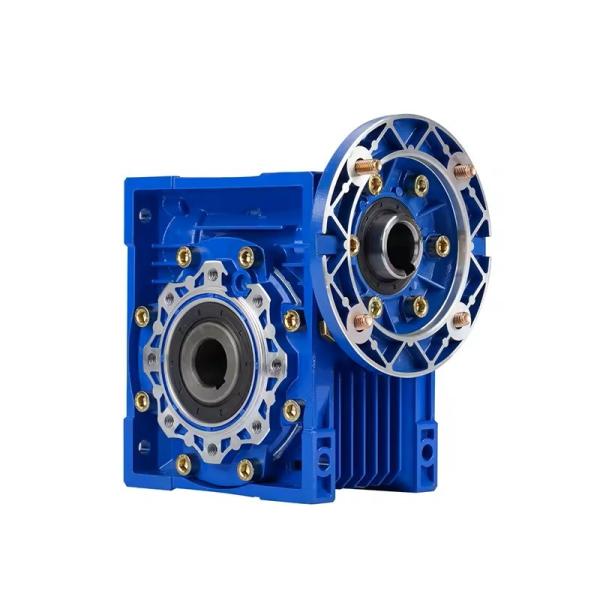

UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
UP TO 2320
Rated Power :
0.06-15KW
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
input speed :
1400rpm or other
Input Form :
IEC flange for mounting motor
Output Form :
Solid or Hollow shaft,flange output
Description
Small NMRV Right Angle Worm Drive Reduction Gearbox 1:20 Ratio RV Series
Product Specifications
Attribute Value
Gearing Arrangement Worm
Output Torque Up to 2320 Nm
Rated Power 0.06-15KW
Output Speed 14-280rpm
Voltage 220V-380V
Weight 6kg
Speed Ratio 5, 7.5, 10, 15:1, 20, 25, 30, 40, 50, 60, 80, 100:1
Input Speed 1400rpm or other
Input Form IEC flange for mounting motor
Output Form Solid or Hollow shaft, flange output
Customized B3 0.37-7.5KW Packaging Machinery Worm Gear Reducer

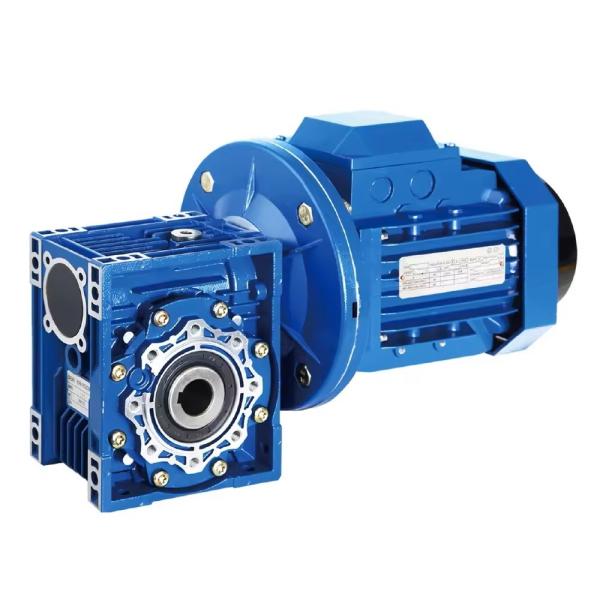

This compact worm gear reducer is designed for seamless integration with motors of corresponding sizes, making it ideal for space-constrained machinery applications. It provides efficient speed reduction for various industrial equipment.

Selection Guide
Step 1: Determine Input Flange Size

Square flange side lengths: 60×60, 80×80, 90×90, or 104×104 mm

Step 2: Confirm Diameter

Available in 9 mm or 11 mm sizes

Step 3: Select Speed Ratio

Options: 1:7.5, 1:10, 1:15, 1:20, 1:25, 1:30, 1:40, 1:50, 1:60, 1:80, 1:100

For optimal selection, please provide motor specifications or photos for reference.

Technical Specifications
  • Models: NMRV025, 030, 040, 050, 063, 075, 090, 110, 130, 150
  • Color Options: Blue, Silver, or custom upon request
  • Noise Level: Low noise (<50dB)
  • Materials:
    • Housing: Die-cast aluminum alloy
    • Worm Gear: Bronze 9-4#
    • Worm: 20CrMnTi with carburizing and quenching (56-62HRC)
    • Shaft: Chromium steel-45#
  • Certifications: ISO9001, CE, 3C, OEM
  • Warranty: 12 months
  • Input Power Range: 0.06kw to 15kw
UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer UP TO 2320 Torque Right Angle Worm Drive Gearbox RV Series Nmrv Reducer
Quality Assurance

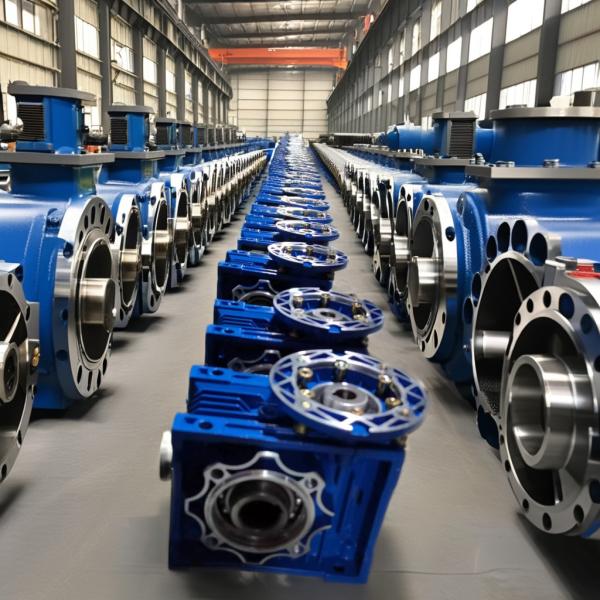

Our speed reducers are manufactured in strict compliance with ISO9001 standards, featuring premium components including SKF oil seals, Shell lubricants, and NSK bearings. All products undergo rigorous quality control and are available from stock. Custom solutions are available upon request.
