Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
4.5-2590N
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
input speed :
1400rpm
Ratio :
20-60
Description
Vertical Worm Gear Reducer (WPA/WPS/WPX/WPO Series)

High-performance worm gear speed reducer with ratios from 20:1 to 60:1, designed for demanding industrial applications.

Key Specifications
Gearing Arrangement Worm
Output Torque 4.5-2590N
Output Speed 14-280rpm
Input Speed 1400rpm
Speed Ratio Options 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100:1
Voltage 220V-380V
Weight From 6kg (varies by model)
Product Description

The WP series reducer features a worm made of 45# high-quality heat-treated steel and a worm wheel cast with tin bronze for exceptional wear resistance and bearing capacity. Ideal for reduction transmission in various industrial applications including plastics, metallurgy, beverage production, mining, lifting/transportation, and chemical construction.

Key Features
  • Smooth operation with minimal vibration, impact, and noise
  • Large deceleration ratio with wide versatility for various mechanical equipment
  • Compact structure with excellent self-locking properties (reduces need for braking devices)
  • Manufactured to national standards with standard bearing and oil seal components
  • Requires proper lubrication and cooling due to meshing friction characteristics
Technical Specifications
Model Ratio A AB B BB CC H LL M N E F G Z Input Shaft Output Shaft Weight (kg) Oil (L)
40 143 87 114 74 40 141 60 90 100 70 80 13 10 25 12 4 0.3

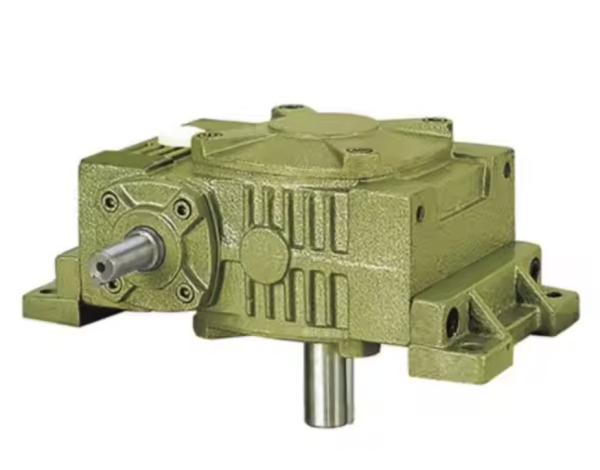

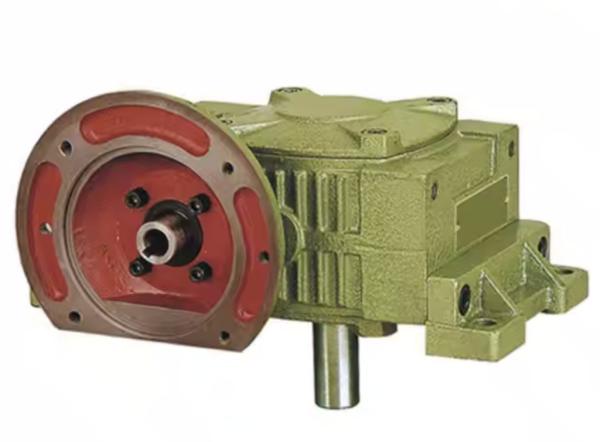

Product Images
WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio
Technical Drawings
WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio
Additional Details
WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio WP Series Industrial Vertical Double Reduction Worm Gearbox WPA WPS WPX WPO 20 40 60 Ratio
Packaging

Standard export wooden case packaging for secure transportation.
