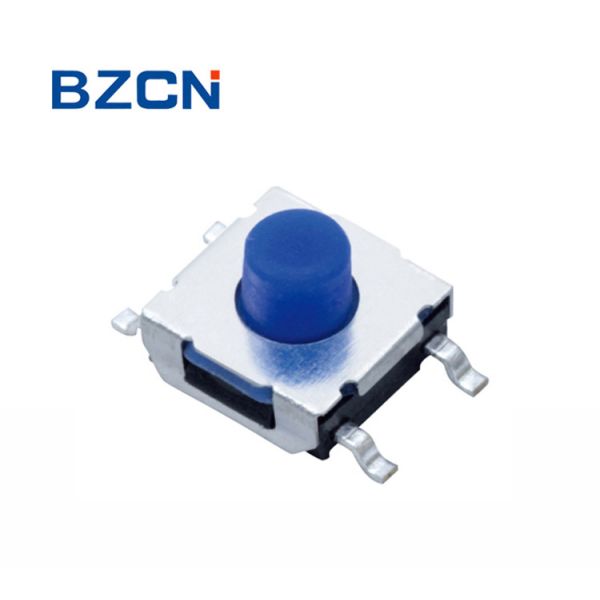

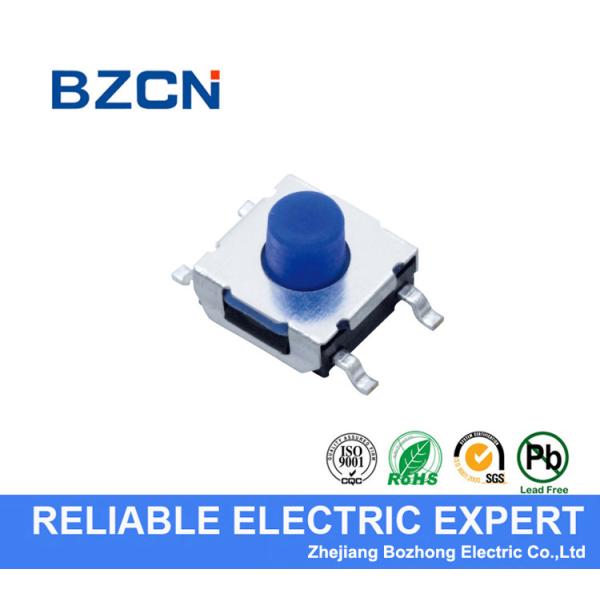

Surface Mount 4 Pin Momentary Switch Blue Soft Push Button Tactile Switch
Surface Mount 4 Pin Momentary Switch Blue Soft Push Button Tactile Switch
Surface Mount 4 Pin Momentary Switch Blue Soft Push Button Tactile Switch
Surface Mount 4 Pin Momentary Switch Blue Soft Push Button Tactile Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-E006
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Feeling :
Soft feeling
Rating :
50mA
Voltage :
12V
Dust proof :
Acceptable
Operation :
Momentary
Description

blue soft push button tactile switch surface mount type terminal 4 pin 6.2*6.2 mm

low profile tact switch from BZ is designed for industrial and consumer electronics as well as home applications. The switch’s ruggedness is ideal for applications that must endure vibration, moisture, humidity, dust and other contaminants. The cost-effective is an IP67 rated switch.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-E006
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Drawing.
