RED Push Button Tactile Push Button Switch SMD Surface Mount Type Terminal 2 Pin
RED Push Button Tactile Push Button Switch SMD Surface Mount Type Terminal 2 Pin
Specifications
Brand Name :
BZCN
Model Number :
TS-B005
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Button :
Red
Rating :
50mA
Voltage :
12V
Dust proof :
Acceptable
Operation force :
180 gf
Description

Miro momentary RED push button tactile switch SMD surface mount type terminal 2 pin

microminiature SMT side actuated switch is ESD protected, which prevents malfunction or breakdown of telecommunication networks, medical handheld monitors and consumer electronics. It comes in a compact size and gives users an excellent tactile feeling.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-B005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

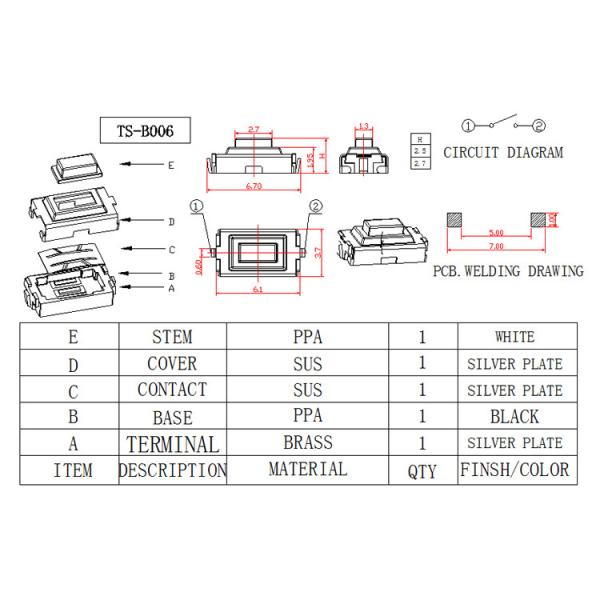

Drawing.

RED Push Button Tactile Push Button Switch SMD Surface Mount Type Terminal 2 Pin
