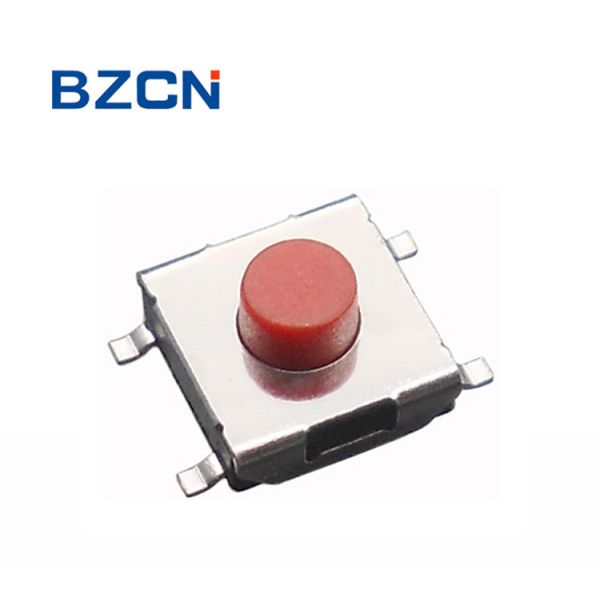

RED Low Profile Tactile Switch , 4 Pin Tactile Switch 6.2X6.2 Mm Middle Travel
RED Low Profile Tactile Switch , 4 Pin Tactile Switch 6.2X6.2 Mm Middle Travel
Specifications
Brand Name :
BZCN
Model Number :
TS-E004
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Button :
Red
Rating :
50mA
Voltage :
12V
Dust proof :
Acceptable
Operation :
Momentary
Description

RED push button tactile switch surface mount type terminal 4 pin 6.2*6.2 mm Middle-travel

SMT top actuated switches are recognized in the home and garden equipment, white goods and metering industries for their responsiveness and reliability. Available in a 6.3 x 6.3mm footprint, in multiple heights and with a ground pin option, the PTS641 can help any product perform better than the competition.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-E004
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference.

RED Low Profile Tactile Switch , 4 Pin Tactile Switch 6.2X6.2 Mm Middle Travel
