Brass Button Low Profile Momentary Switch , 12v Push Button Switch PA66 Material
Brass Button Low Profile Momentary Switch , 12v Push Button Switch PA66 Material
Brass Button Low Profile Momentary Switch , 12v Push Button Switch PA66 Material
Brass Button Low Profile Momentary Switch , 12v Push Button Switch PA66 Material
Specifications
Brand Name :
BZCN
Model Number :
TS-C010
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Material :
PA66
Rating :
50mA
Voltage :
12V
Case :
Brass
Operation :
Momentary
Description

Low-profile Vehicle-compatible tactile switch 4 terminal pin brass button switch​

with either a 0.8mm or a 1.5mm actuator height. Often found designed into remote controls, instrumentation and various other consumer products, PTS525 switches can withstand harsh environments to keep working for a high number of cycles.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-C010
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

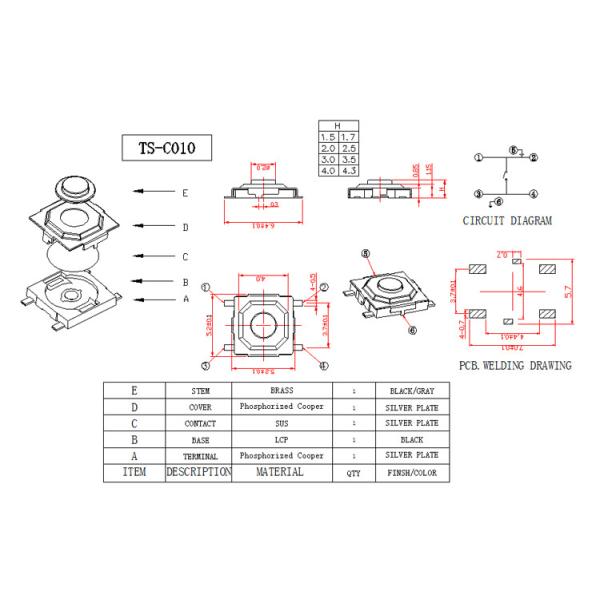

Drawing.

Brass Button Low Profile Momentary Switch , 12v Push Button Switch PA66 Material
