Snap In Type Micro Push Button Switch Momentary Operation 50mA Rating
Snap In Type Micro Push Button Switch Momentary Operation 50mA Rating
Specifications
Brand Name :
BZCN
Model Number :
TS-B011
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Color :
White
Rating :
50mA
Voltage :
12V
Type :
Snap in
Operation :
Momentary
Description

Miro momentary tact switch through hole terminal 2 pin white button DIP on PCB​

Preheating to 100°C for 45 sec. max. Keep flux flush with top surface of PCB; do not apply to component side of PCB and area where terminals are located. Soldering to 255°C for 5 sec. max. Clean by brushing on solder surface. Do not clean switch with solvents.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-B011
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

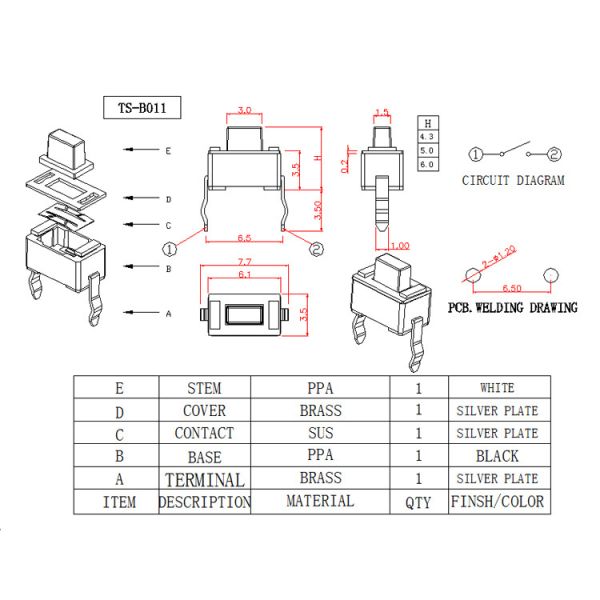

Drawing.

Snap In Type Micro Push Button Switch Momentary Operation 50mA Rating
