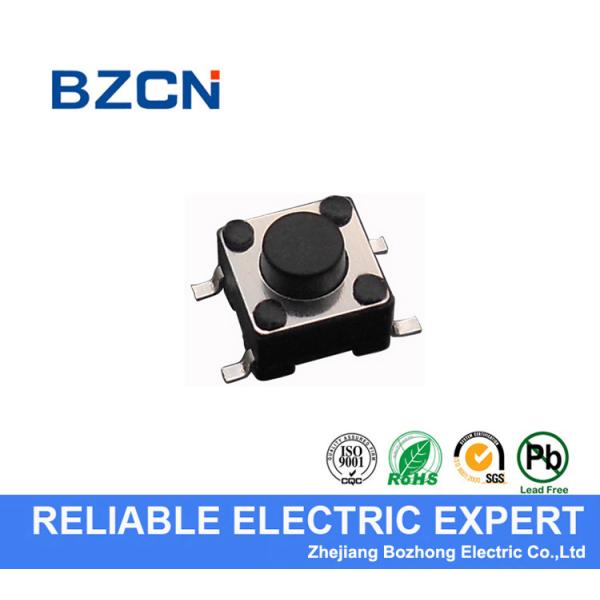

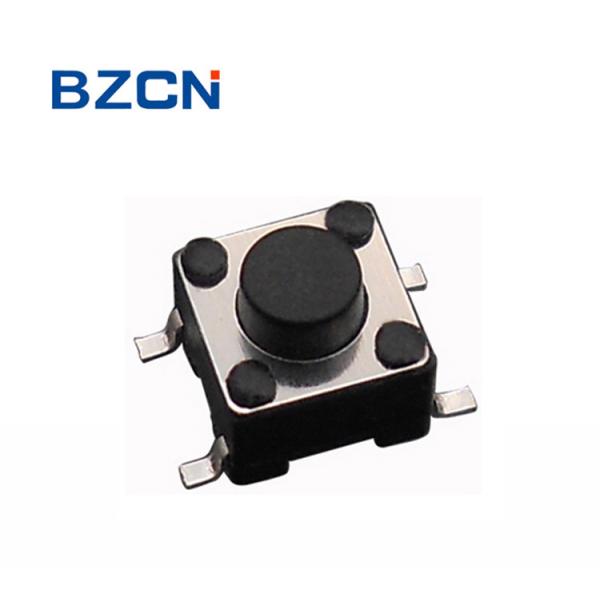

SMD Terminal Type Low Profile Tactile Switch , Surface Mount Push Button
SMD Terminal Type Low Profile Tactile Switch , Surface Mount Push Button
SMD Terminal Type Low Profile Tactile Switch , Surface Mount Push Button
SMD Terminal Type Low Profile Tactile Switch , Surface Mount Push Button
Specifications
Brand Name :
BZCN
Model Number :
TS-C015
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Size :
4.5 mm
Rating :
50mA
Voltage :
12V
Dust proof :
Acceptable
Operation :
Momentary
Description

momentary black push button tactile switch SMD surface mount type terminal 4 pin

Depending on the application, this component is suited to the following methods: Cleaning according to typical washing processes, Infrared Reflow Soldering in accordance with IEC 61760-1.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-C015
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

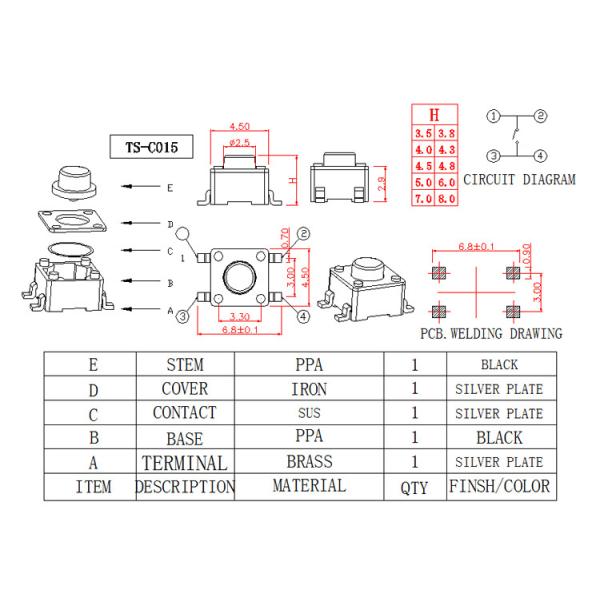

Drawing.

SMD Terminal Type Low Profile Tactile Switch , Surface Mount Push Button
