Ultra Thin Firm Momentary Tactile Switch 5X5 Mm SMT Type With Yellow Firm
Ultra Thin Firm Momentary Tactile Switch 5X5 Mm SMT Type With Yellow Firm
Specifications
Brand Name :
BZCN
Model Number :
TS-C003
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Material :
PA66
Rating :
50mA
Voltage :
12V
Dust proof :
Acceptable
Operation :
Momentary
Description

5*5 mm ultra thin firm momentary tact switch M SMT type terminal 4 pin with yellow firm

ultra low profile SMT top actuated switches are perfect for consumer electronics such as Bluetooth headsets, MP3 accessories and remote controls. Known for being reliable and long-lasting, PTS540 switches are available with 5 mm footprint and a 0.35mm thickness.
This switch is great for consumer electronics and audio/visual devices. It is also great for medical devices, testing/instrumentation, telecommunications and computers/peripherals.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-C003
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

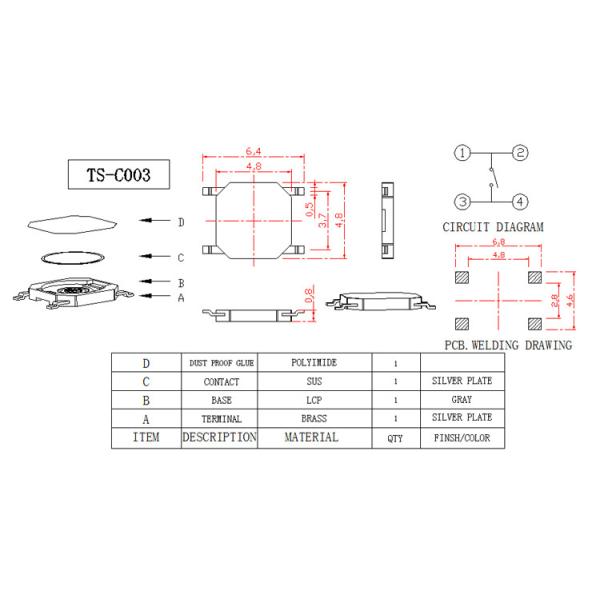

Drawing.

Ultra Thin Firm Momentary Tactile Switch 5X5 Mm SMT Type With Yellow Firm
