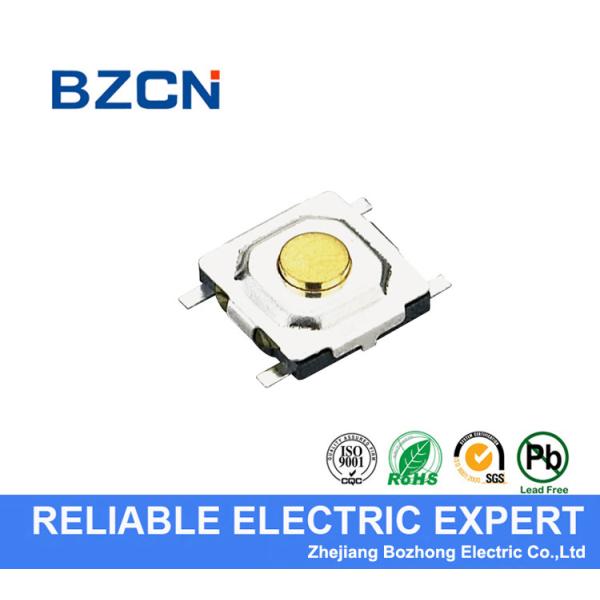

12V Voltage Low Profile Push Button Switch , Surface Mount Push Switch
12V Voltage Low Profile Push Button Switch , Surface Mount Push Switch
12V Voltage Low Profile Push Button Switch , Surface Mount Push Switch
12V Voltage Low Profile Push Button Switch , Surface Mount Push Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-C005
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Type :
Low profile
Button :
Brass
Rating :
50mA
Voltage :
12V
Terminal :
SMD surface mount
Operation :
Momentary
Description

Miro momentary tact switch SMD type terminal 4 pin copper brass button surface mount

  • Ruggedized package in a compact size
  • 0.8 & 1.5 mm actuator height
  • High number of cycles

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-C005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Drawing.
