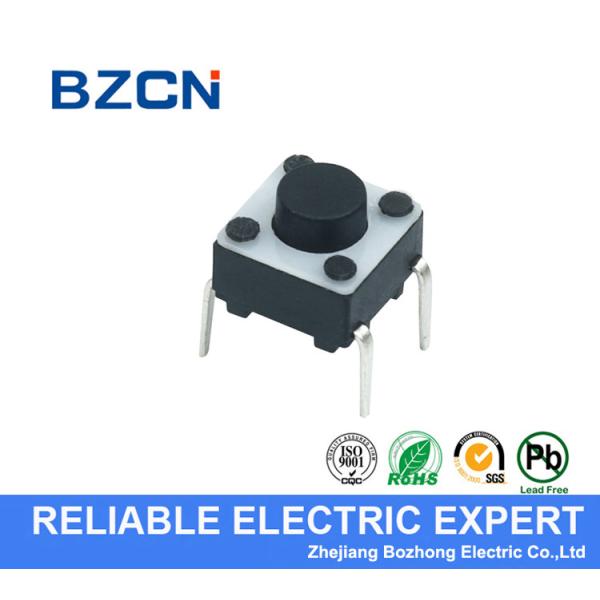

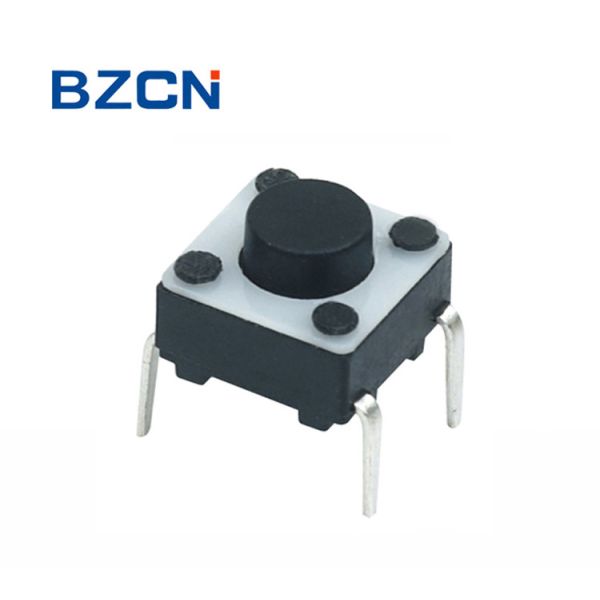

Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation
Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation
Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation
Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation
Specifications
Brand Name :
BZCN
Model Number :
TS-D004
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Cover :
Plastic
Housing :
PA66
Rating :
50mA
Voltage :
12v
Terminal :
through hole version
Push :
Vertical
Description

through hole Tactile Switch with 4 pin Direct operation Momentary sealed tact Switch

Preheating to 100°C for 45 sec. max. Keep flux flush with top surface of PCB; do not apply to component side of PCB and area where terminals are located. Soldering to 255°C for 5 sec. max. Clean by brushing on solder surface. Do not clean switch with solvents.

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Spec.

Model No. TS-D004
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability

260±5℃ for 3 seconds

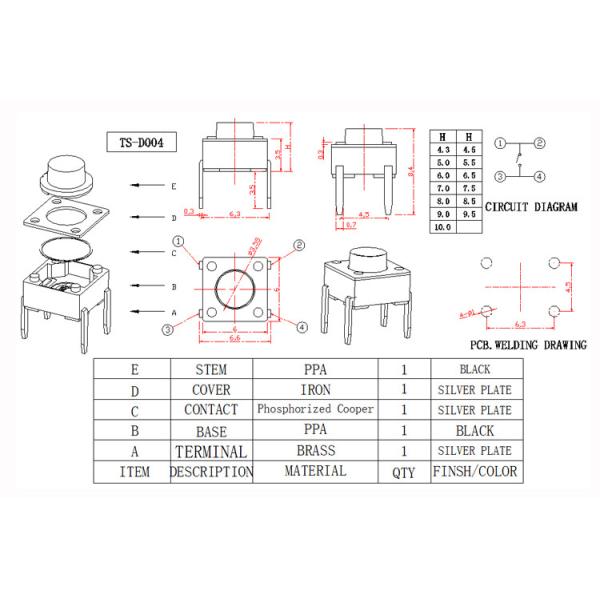

Drawing.

Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation
