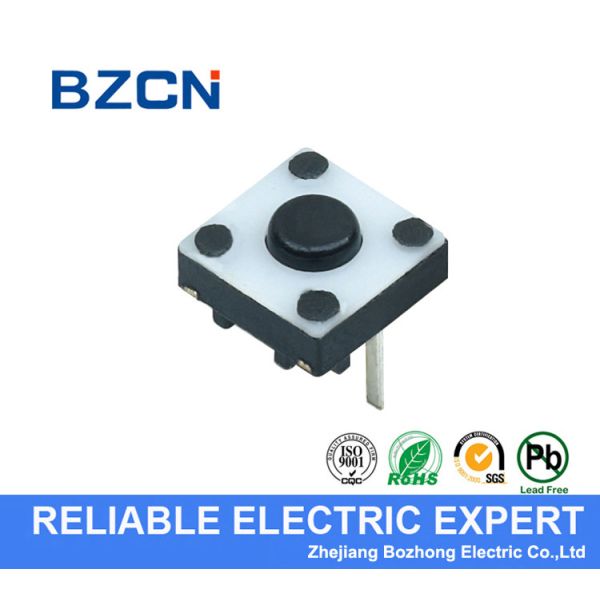

2 Pin 6.3X6.3 Mm Tact Push Button Switch Through Hole Terminal White Cover
2 Pin 6.3X6.3 Mm Tact Push Button Switch Through Hole Terminal White Cover
Specifications
Brand Name :
BZCN
Model Number :
TS-E012
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Cover :
Plastic
Housing :
PA66
Rating :
50mA
Voltage :
12v
Terminal :
THT/DIP
Push :
Vertical
Description

2 Pin 6.3*6.3 mm Tact Push Button Switch Electric Switch through hole terminal white cover

Tact switches come with radial lead packaging and are designed for automatic feed. This is a through hole switch. If you want a right angle version, you can check out the this series. Many actuator lengths are available and multiple operating forces.

Applications include consumer electronics, telecommunications and more.

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Two pin terminal

Spec.

Model No. TS-E012
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability

260±5℃ for 3 seconds

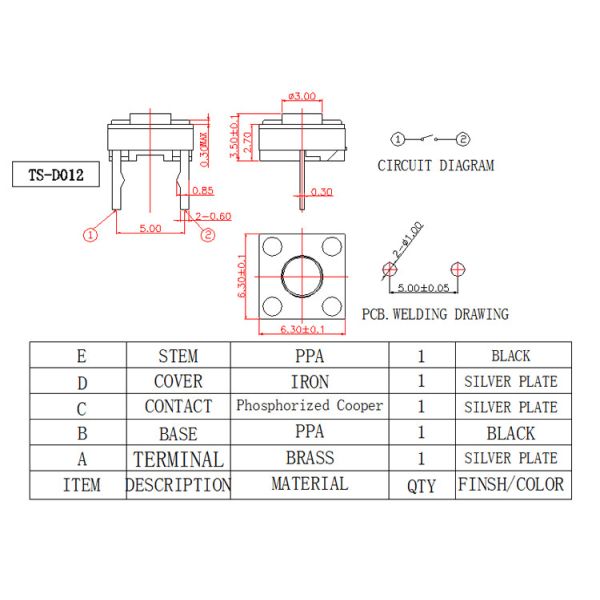

Drawing.

2 Pin 6.3X6.3 Mm Tact Push Button Switch Through Hole Terminal White Cover
