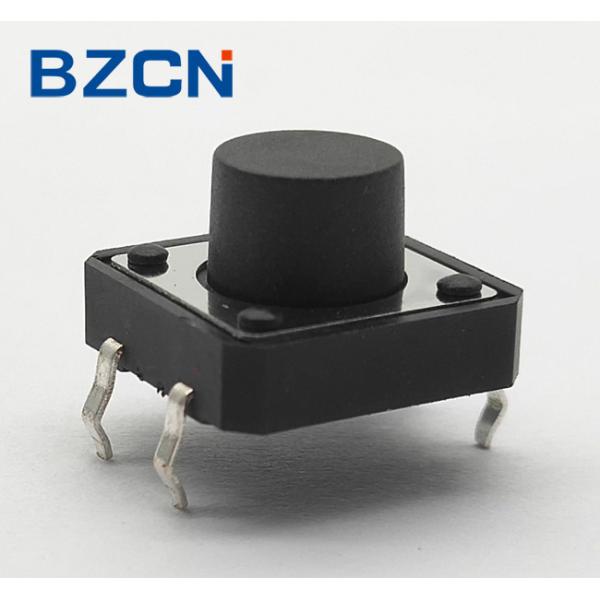

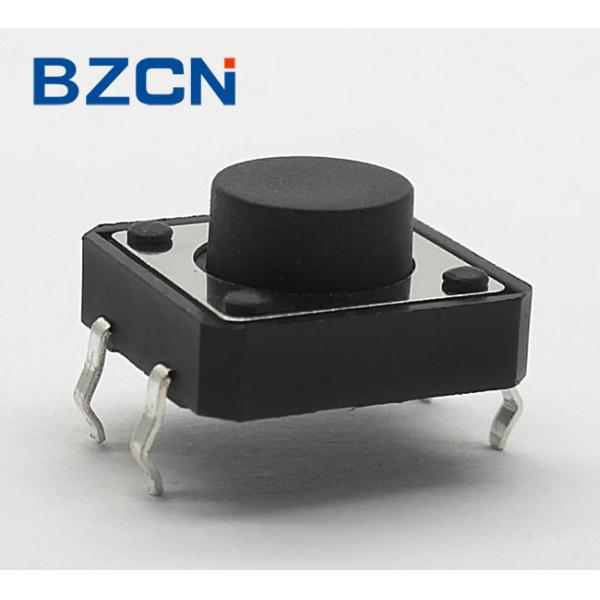

Black 12mm Tactile Switch , 4 Pin Momentary Switch With Stable Operation
Black 12mm Tactile Switch , 4 Pin Momentary Switch With Stable Operation
Black 12mm Tactile Switch , 4 Pin Momentary Switch With Stable Operation
Black 12mm Tactile Switch , 4 Pin Momentary Switch With Stable Operation
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Cover :
Iron
Housing :
PA66
Rating :
50mA
Button :
Black round
Terminal :
through hole terminal
Push :
Vertical
Description

black 12 mm × 12 mm flat stem with stable operation tact feeling tactile switch in 4 pin

  • without actuator 2,5mm high
  • Positive tactile feeling
  • IP67
  • Industrial electronics
  • Consumer products
  • Instrumentation
  • Automotive

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Spec.

Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability

260±5℃ for 3 seconds

Reference.

Black 12mm Tactile Switch , 4 Pin Momentary Switch With Stable Operation
