Taping Reel Long Sealed Tactile Switch 2 Pin Long Terminal Momentary Push Black Button
Taping Reel Long Sealed Tactile Switch 2 Pin Long Terminal Momentary Push Black Button
Taping Reel Long Sealed Tactile Switch 2 Pin Long Terminal Momentary Push Black Button
Taping Reel Long Sealed Tactile Switch 2 Pin Long Terminal Momentary Push Black Button
Specifications
Brand Name :
BZCN
Model Number :
TS-D015
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Type :
Radal
Housing :
PA66
Rating :
50mA
Voltage :
12v
Function :
Low profile
Push :
Vertical
Description

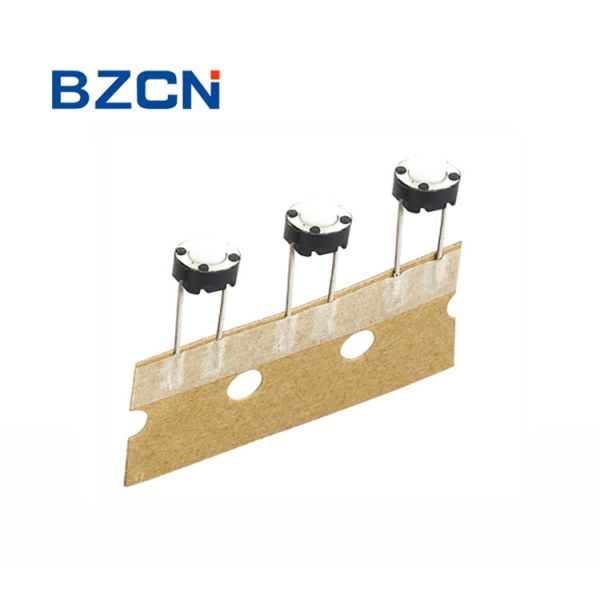

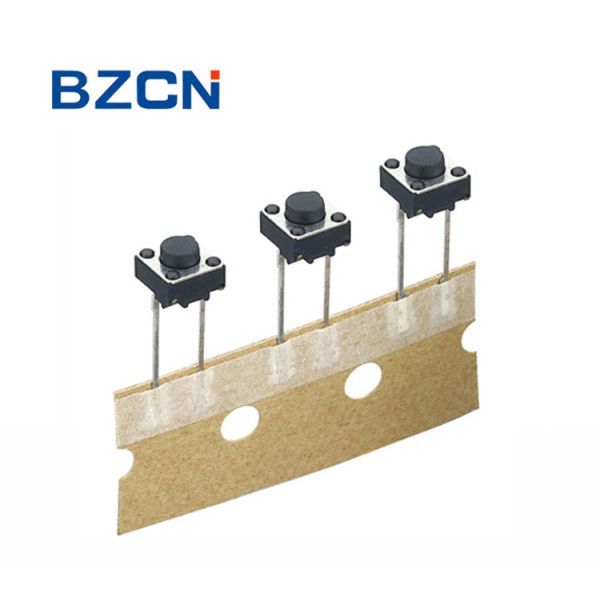

Taping reel long 2 pin long terminal tactile switch with momentary push black button

Tact switches come with radial lead packaging and are designed for automatic feed. This is a through hole switch. If you want a right angle version, you can check out the this series. Many actuator lengths are available and multiple operating forces.

Applications include consumer electronics, telecommunications and more.

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Two pin terminal

Spec.

Model No. TS-D015
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability

260±5℃ for 3 seconds

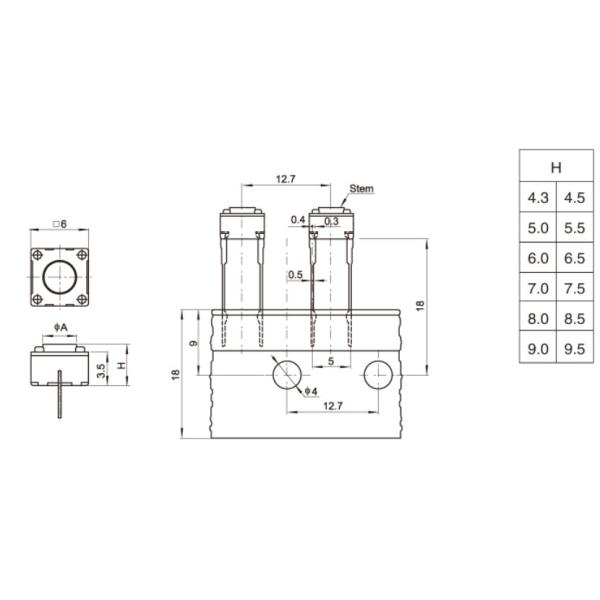

Drawing.

Taping Reel Long Sealed Tactile Switch 2 Pin Long Terminal Momentary Push Black Button
