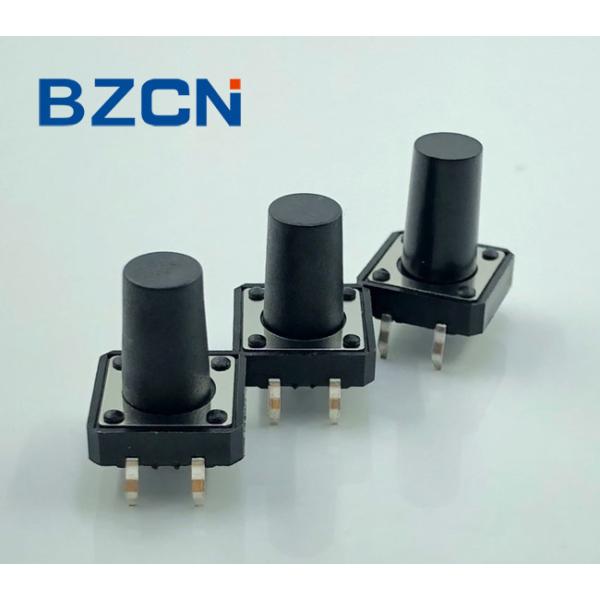

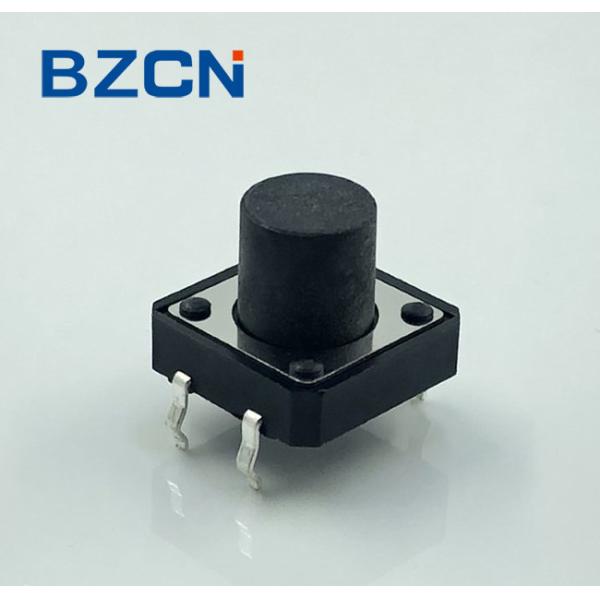

Flat Stem Sealed Tactile Switch Black Color Tact Feeling Tactile Switch
Flat Stem Sealed Tactile Switch Black Color Tact Feeling Tactile Switch
Flat Stem Sealed Tactile Switch Black Color Tact Feeling Tactile Switch
Flat Stem Sealed Tactile Switch Black Color Tact Feeling Tactile Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Cover :
Metal with silver plate
Housing :
Black PA66
Rating :
50mA
Voltage :
12v
Terminal :
THT/DIP
Push :
Vertical
Description

12 mm flat stem black color tact feeling tactile switch with stable operation

Depending on the application, this component is suited to the following methods: Terminals being silver or gold plated over a nickel barrier, the use of slightly activated flux is suitable, Soldering on double wave machine for vertical versions: soldering time < 5 sec, Cleaning according to typical washing processes, Infrared Reflow Soldering in accordance with IEC 61760-1.

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Spec.

Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability

260±5℃ for 3 seconds

Reference.

Flat Stem Sealed Tactile Switch Black Color Tact Feeling Tactile Switch
