Plastic Cover Sealed Tactile Switch PA66 Brass Housing Terminal With Silver Plate
Plastic Cover Sealed Tactile Switch PA66 Brass Housing Terminal With Silver Plate
Plastic Cover Sealed Tactile Switch PA66 Brass Housing Terminal With Silver Plate
Plastic Cover Sealed Tactile Switch PA66 Brass Housing Terminal With Silver Plate
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Cover :
Plastic
Housing :
PA66
Rating :
50mA
Operation force :
160 / 250 gf
Terminal :
THT/DIP
Push :
Vertical
Description

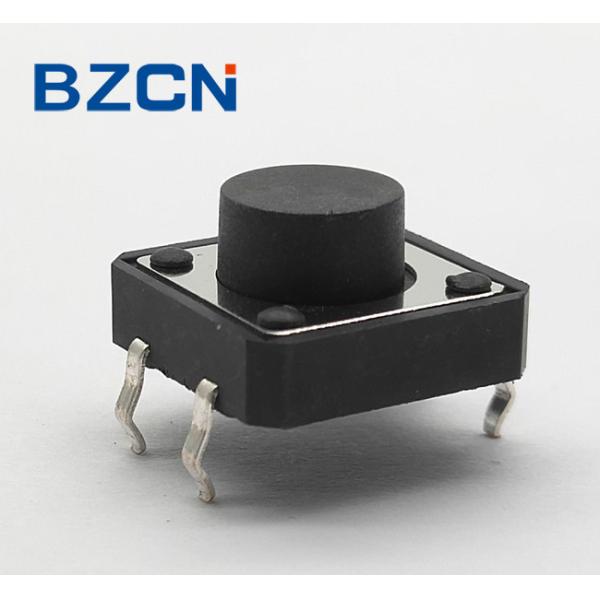

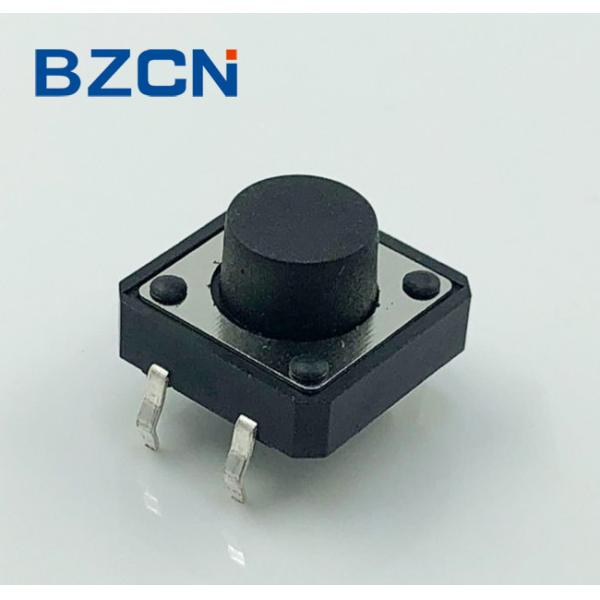

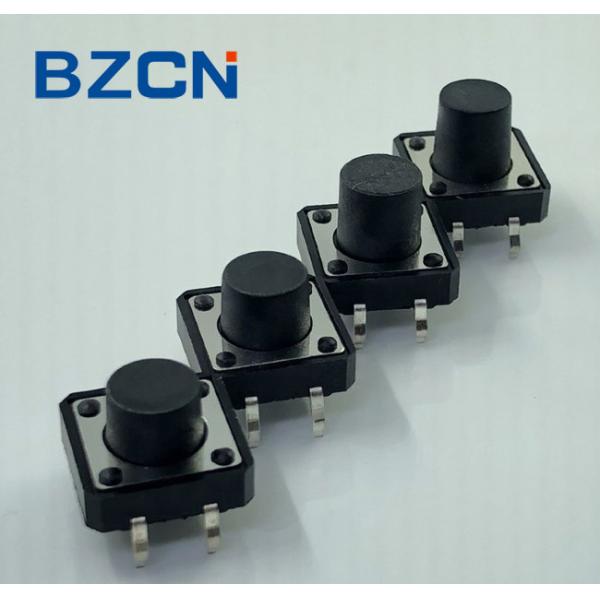

12 mm flat stem tact feeling tactile switch brass terminal with silver plate

  • automotive (air bags, heating/AC, door handles, column switches)
  • aerospace (main cabin lights, flight attendant buttons)
  • consumer (cell phones, headsets, remote controls, wearable electronics)
  • medical (hearing aids, health diagnostics, portable equipment)
  • industrial (control panels, instrumentation, power supplies)
  • computer (keyboards)
  • telecom/network equipment
  • handheld applications (power and selection switches, volume control, keyfobs)

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Spec.

Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability

260±5℃ for 3 seconds

Reference.

Plastic Cover Sealed Tactile Switch PA66 Brass Housing Terminal With Silver Plate
