7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control
7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control
7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control
7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control
7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control
7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control
Specifications
MOQ :
1
Shell color :
White
Screen size :
7 inch
Application :
Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet, Wine Cell
Suitable for fans :
AC/EC/DC fan motors
Model Number :
G7 Pro
Delivery Time :
2-3 weeks
Optional built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Place of Origin :
Guangdong, China
Payment Terms :
T/T
Price :
$103
Feature :
Flexible, Energy Saving, Easy Install
Warranty :
1 Year
Brand Name :
OEM or neutral (no brand)
Supply Ability :
100000pcs
Material :
PC and ABS
Description
Factory Directly Supply 7 Inch Smart Fresh Air Ventilation Controller With Touchscreen Display
Product Overview

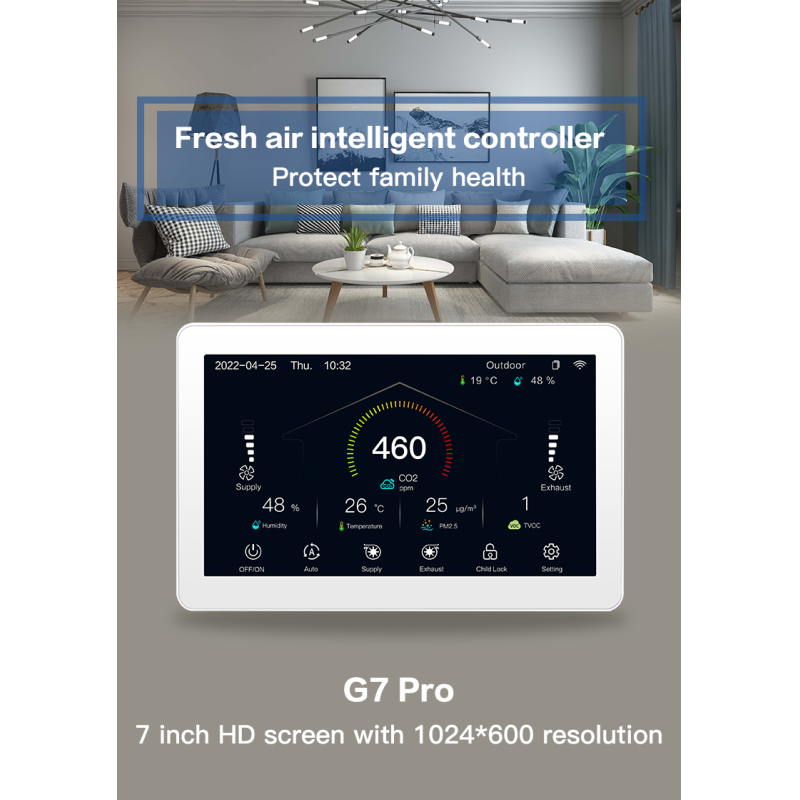

G7 Pro (black UI version) is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, VOC temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design.

Equipped with Wi-Fi for remote access and control via the internet, it also includes RS485 port and MODBUS protocol for communication with smart home and building automation systems.

The AC version outputs relay signals to directly control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation. Suitable for residential, commercial, and industrial applications, it effectively improves air quality and creates healthy, comfortable, efficient, and energy-saving environments.

Key Features
  • Smart Ventilation Control
  • Fresh Air System Management
  • Intelligent Airflow Adjustment
  • Real-Time Air Quality Monitoring
  • Automatic Ventilation Scheduling
  • Multi-Speed Fan Control
  • Temperature & Humidity Monitoring
  • CO₂, PM2.5, VOC Sensors Data Based Ventilation Control
  • Energy Recovery Ventilation (ERV) Compatible
  • Heat Recovery Ventilation (HRV) Compatible
Product Specifications
Dimension 115 × 185 mm
Display Interface 7 inch, 1024 x 600
Warm-up Time 2 minutes
Response Time ≤ 10 seconds
Wiring Terminal Max 2.5 mm² wire
Recovery Time ≤ 30 seconds
Rated Voltage AC110-240V, 50/60Hz
Operating Temperature -10℃ to +50℃
Standby Power ≤ 3.0W
Operating Humidity 5％RH to 90％RH
Control Power ≤ 200W
Storage Temperature -10℃ to +60℃
Suitable for Fans AC/EC/DC
PM2.5 Display Range 0μg/m³ to 999μg/m³
Temperature Display Range 0℃ to 99℃
CO2 Display Range 0ppm to 9999ppm
Humidity Display Range 0% to 99%
Fixing Hole Distance 60mm (standard)
Product Images

7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control 7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control 7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control 7 Inch Smart Fresh Air Ventilation Controller with Touchscreen Display Multi Sensor Integration for WiFi Remote Control
