7 Inch Color Touchscreen Ventilation Controller with Real Time CO₂ VOC PM2.5 Monitoring WiFi App Control
7 Inch Color Touchscreen Ventilation Controller with Real Time CO₂ VOC PM2.5 Monitoring WiFi App Control
7 Inch Color Touchscreen Ventilation Controller with Real Time CO₂ VOC PM2.5 Monitoring WiFi App Control
7 Inch Color Touchscreen Ventilation Controller with Real Time CO₂ VOC PM2.5 Monitoring WiFi App Control
Specifications
Brand Name :
OEM or neutral
Model Number :
G7 Pro
Optional built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
WIFI Function :
Support Tuya app & Smart life app
Supply Ability :
100000pcs
Delivery Time :
2-3 weeks
Application :
Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet, Wine Cell
Shell Material :
PC and ABS
Price :
$103
Payment Terms :
T/T
RS485 :
Support Modbus Protocol
MOQ :
1
Place of Origin :
China
Mounting :
Standard 86 wall mounting box
Certification :
CE and RoHS
Description
Temperature & Humidity Real-time Monitoring CO₂ VOC PM2.5 Based Ventilation Control Air Ventilation Controller
Product Overview

G7 Pro is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design. Equipped with Wi-Fi for remote access and control via the internet, it also includes RS485 port and MODBUS protocol for communication with smart home and building automation systems.

The AC version outputs relay signals to directly control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation. Suitable for residential, commercial, and industrial applications, it effectively improves air quality and creates healthy, comfortable, efficient, and energy-saving environments.

Key Features

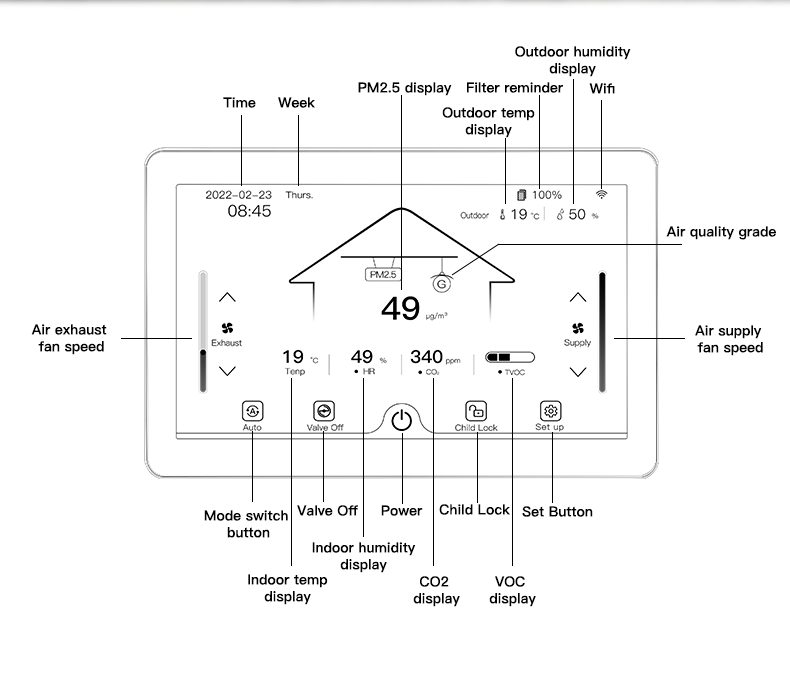

  • 7-Inch Color Touchscreen Display for intuitive operation and real-time monitoring
  • Automatic Fan Speed Control based on CO₂, PM2.5, and VOC levels
  • Standard 86-Type Wall Mounting for quick and convenient installation
  • Wi-Fi App Control via Smart Life and Tuya App for remote access
  • RS485 Communication Interface for smart building and HVAC system integration
  • OEM/ODM Customization including UI design, logo printing, and enclosure color options
  • Compatible with Fresh Air Ventilation, HRV, and ERV Systems
Technical Specifications
Dimension 115 × 185 mm
Display Interface 7 inch, 1024 x 600
Warm-up Time 2 minutes
Response Time ≤ 10 seconds
Wiring Terminal Max 2.5 mm² wire
Recovery Time ≤ 30 seconds
Rated Voltage AC110-240V, 50/60Hz
Operating Temperature -10℃ to +50℃
Standby Power ≤ 3.0W
Operating Humidity 5％RH to 90％RH
Control Power ≤ 200W
Storage Temperature -10℃ to +60℃
Suitable for Fans AC/EC/DC
PM2.5 Display Range 0μg/m³ to 999μg/m³
Temperature Display Range 0℃ to 99℃
CO2 Display Range 0ppm to 9999ppm
Humidity Display Range 0% to 99%
Fixing Hole Distance 60mm (standard)
