Smart Ventilation Fan Speed Control Fresh Air System Management Fresh Air Controller
Smart Ventilation Fan Speed Control Fresh Air System Management Fresh Air Controller
Smart Ventilation Fan Speed Control Fresh Air System Management Fresh Air Controller
Smart Ventilation Fan Speed Control Fresh Air System Management Fresh Air Controller
Specifications
Installation :
Wall mounting
Place of Origin :
Guangdong, China
Brand Name :
OEM or neutral
Material :
PC and ABS
WIFI function :
Optional
Payment Terms :
T/T
MOQ :
1
Model Number :
G7 Pro
Supply Ability :
100000pcs
Delivery Time :
2-3 weeks
Price :
$103
Certification :
CE and RoHS
Mounting methods :
Wall mounted
Optional built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Suitable for fans :
AC/EC/DC fan motors
Description
Product Overview:

G7 Pro is an intelligent fresh air ventilation controller that integrates multiple sensors such as PM2.5, CO2, temperature, humidity, etc. The device adopts a 7-inch HD color screen and a high-sensitivity touch screen design. The device is equipped with WIFI, which can be remotely accessed and controlled through the Internet. At the same time, RS485 port and MODBUS protocol are reserved for communication with smart home, building intelligent control, etc.
The AC version of the controller can output relay signals to directly control the start, stop and speed regulation of the AC fan, and the DC version can output two separate control voltages to control the start, stop and speed regulation of the DC fan. It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality and create a healthy, comfortable, efficient, environmentally friendly and energy-saving living and working environment.


Basic Functions:


7-inch full-color LCD touchscreen display for intuitive operation

Smart air quality management for fresh air systems

Multi-speed ventilation adjustment for optimal indoor air quality

Suitable for HRV/ERV and other fresh air ventilation systems

Automatic fan speed control based on real-time CO₂, PM2.5, and VOC levels

Standard 86-type wall-mounting method

Wi-Fi remote control via Smart Life App and Tuya App

RS485 Modbus protocol communication


Product Specifications:

* Dimension:
115 × 185 mm

* Display interface:
1024 x 600
* Warm-up time:
2 minutes

* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire

* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 3.0W

* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W

* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

* PM2.5 display range:
0ug/m3——999ug/m3
* Temperature display range:
0℃ —— 99℃

* CO2 display range:
0ppm-9999ppm
* Humidity display range:
0% —— 99%

* Fixing hole distance:
60mm(standard)

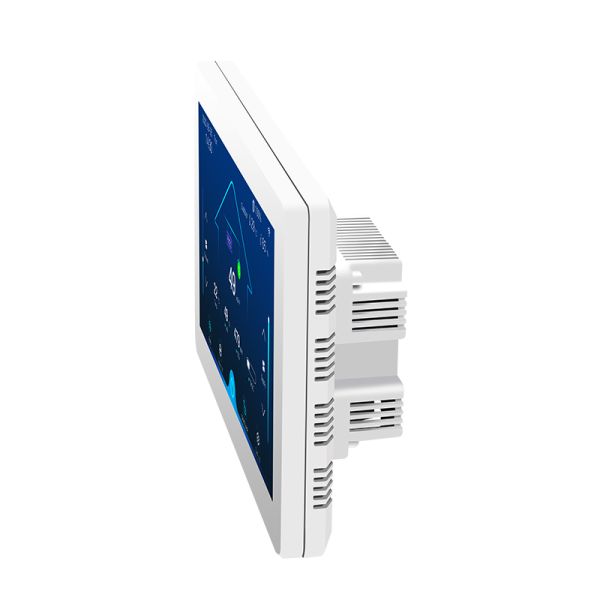

Product Photos:

Smart Ventilation Fan Speed Control Fresh Air System Management Fresh Air Controller Smart Ventilation Fan Speed Control Fresh Air System Management Fresh Air ControllerSmart Ventilation Fan Speed Control Fresh Air System Management Fresh Air Controller
