4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
Specifications
Rated voltage :
AC110-240V, 50/60Hz
Operating temperature :
-10℃--- +50℃
Price :
$65
CO2 display range :
350ppm----2000ppm
Delivery Time :
2-3 weeks
Payment Terms :
T/T
Brand Name :
OEM or neutral (no brand)
Standby Power :
≤ 2.0W
Control power :
≤ 200W
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
1
Dimensions :
86 × 86 × 40 mm
Supply Ability :
100000pcs
Model Number :
G6-T
Description
Product overview:

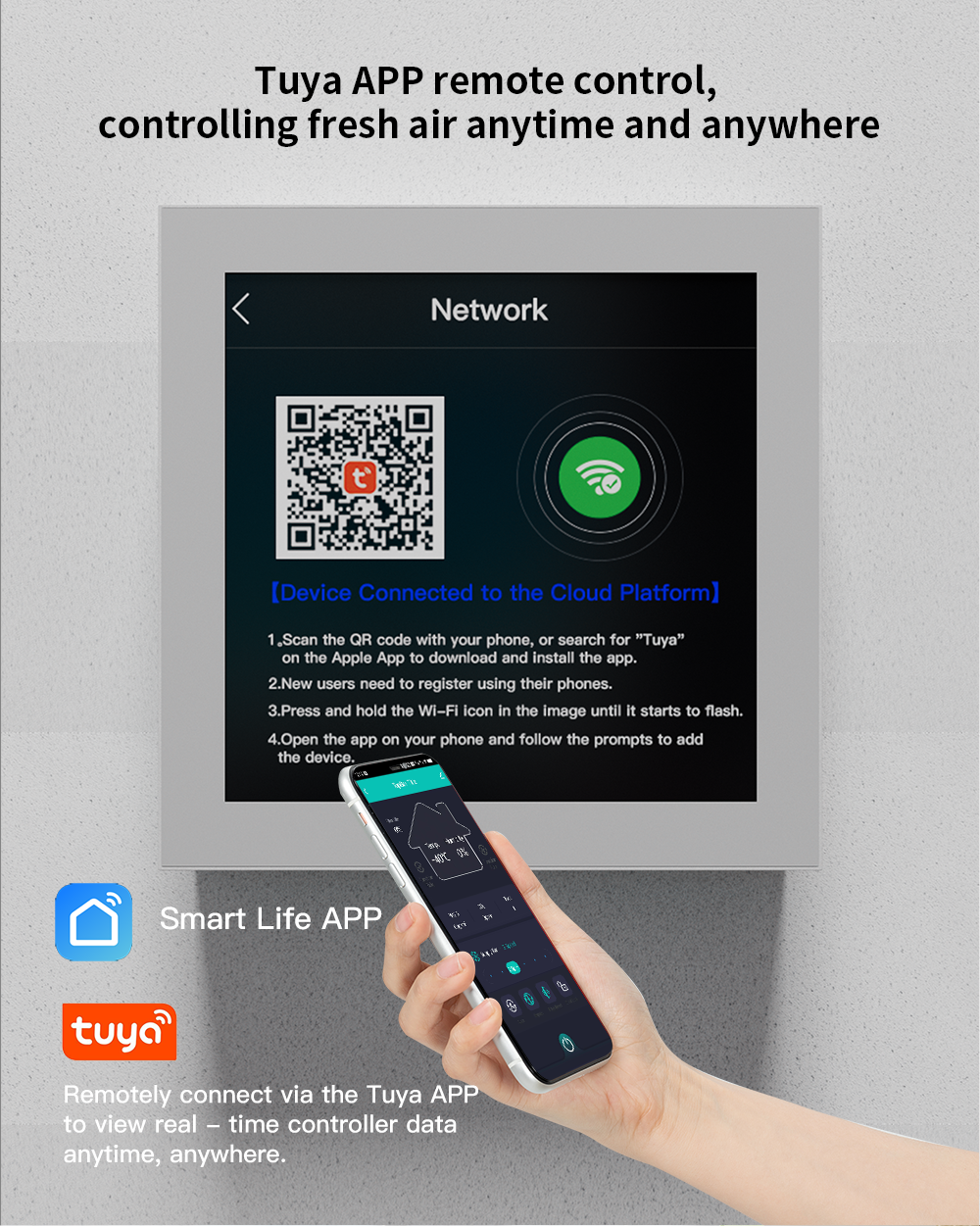

The G6-T fresh air system intelligent controller can monitor indoor temperature, humidity, PM2.5, CO2, and VOC levels in real time; it supports Wi-Fi connectivity; and features a ModBus RTU (RS485) interface, allowing users to connect to smart home and other backend monitoring systems.

The controller controls the fresh air unit's operation and fan speed, and can be widely used in residential, commercial, and industrial settings.

It effectively improves air quality, creating a healthy, comfortable, efficient, environmentally friendly, and energy-saving living and working environment.

Product specifications:

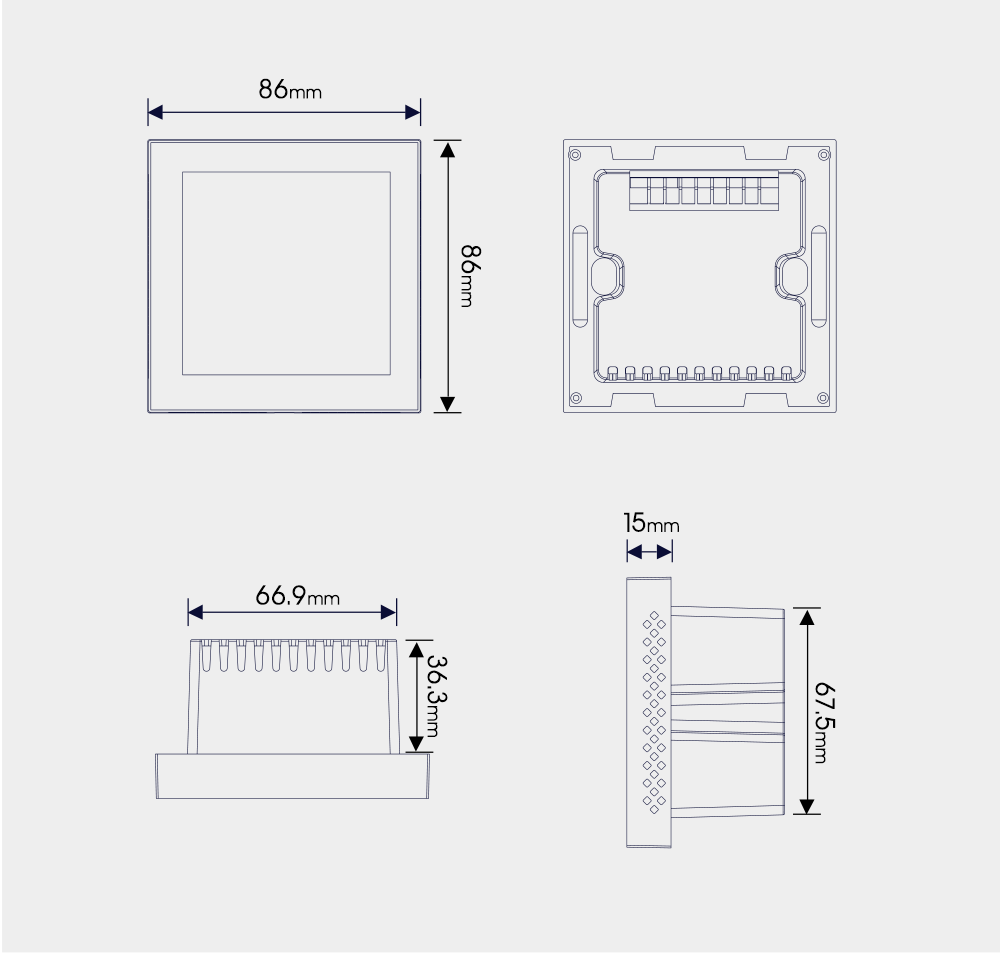

* Dimension: 86 × 86 × 40 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 3 years
* CO2 display range: 350ppm——2000ppm * PM2.5 display range: 1ug/m3——999ug/m3

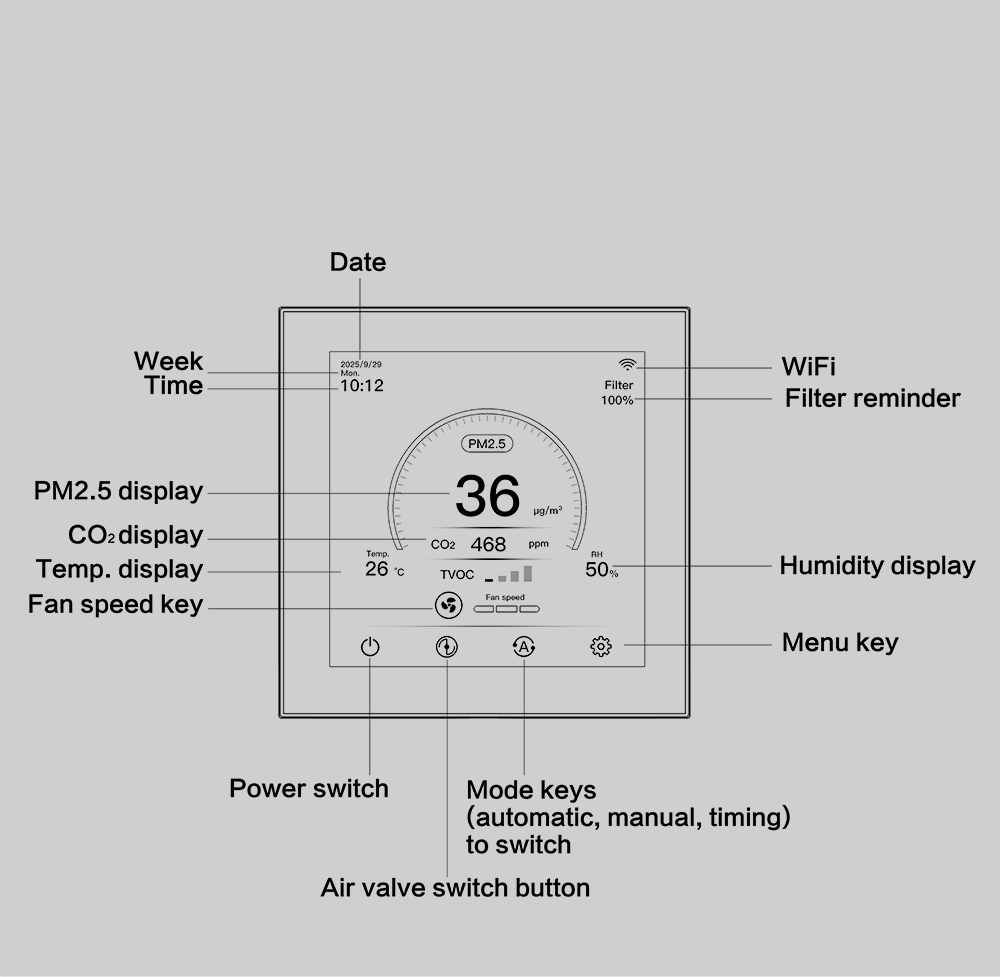

Products images:
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
4 Inch Smart Ventilation Controller with Real Time Monitoring Three Speed Fan WiFi Connectivity
