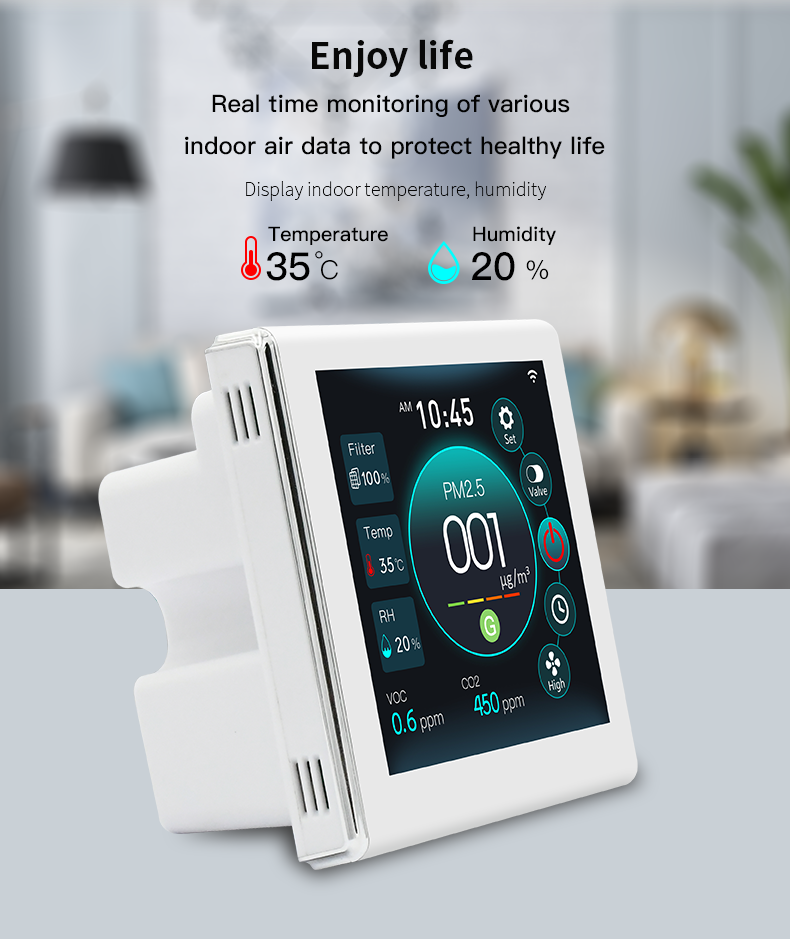

App Controlled Smart HVAC Controller With CO2 PM2.5 Monitoring WiFi System
App Controlled Smart HVAC Controller With CO2 PM2.5 Monitoring WiFi System
App Controlled Smart HVAC Controller With CO2 PM2.5 Monitoring WiFi System
App Controlled Smart HVAC Controller With CO2 PM2.5 Monitoring WiFi System
Specifications
Dimension :
86 × 86 × 40 mm
Brand Name :
OEM or neutral (no brand)
Rated voltage :
AC110-240V, 50/60Hz
Model Number :
G9
Voltage :
AC 100-240V
Delivery Time :
2-3 weeks
Fan motors :
AC/EC/DC fans
Supply Ability :
100000pcs
Certification :
CE, RoHS
Built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Place of Origin :
China
Payment Terms :
T/T
Shell colors :
White and black
MOQ :
1
Price :
$100
Description
4 Inch LCD Color Touch Screen HVAC Fresh Air Ventilation Smart Wifi Controller
Product Overview:

G9 fresh air system intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional), simulated formaldehyde (optional) and other data in real time;

The controller supports Wi-Fi connectivity and can be remotely monitored and controlled through the Smart Life App or Tuya Smart App, allowing users to manage their ventilation system anytime and anywhere. In addition, the built-in RS485 communication interface enables seamless integration with HVAC systems, building management systems (BMS), and smart building platforms.

It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.

Key Features:
  • ✔ 4-Inch Color Touchscreen Display for intuitive operation and real-time monitoring
  • ✔ Automatic Fan Speed Control based on CO₂, PM2.5, and VOC levels
  • ✔ Standard 86-Type Wall Mounting for quick and convenient installation
  • ✔ Wi-Fi App Control via Smart Life and Tuya App for remote access anytime, anywhere
  • ✔ RS485 Communication Interface for smart building and HVAC system integration
  • ✔ OEM/ODM Customization including UI design, logo printing, and enclosure color options
  • ✔ Compatible with Fresh Air Ventilation, HRV, and ERV Systems
Technical Specifications:
* Dimension: 86 × 86 × 40 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 3 years
* CO2 display range: 350ppm——2000ppm * PM2.5 display range: 1ug/m3——999ug/m3
Product Images:
App Controlled Smart HVAC Controller With CO2 PM2.5 Monitoring WiFi System

App Controlled Smart HVAC Controller With CO2 PM2.5 Monitoring WiFi System
